Parking Brake Shoe: Service and Repair

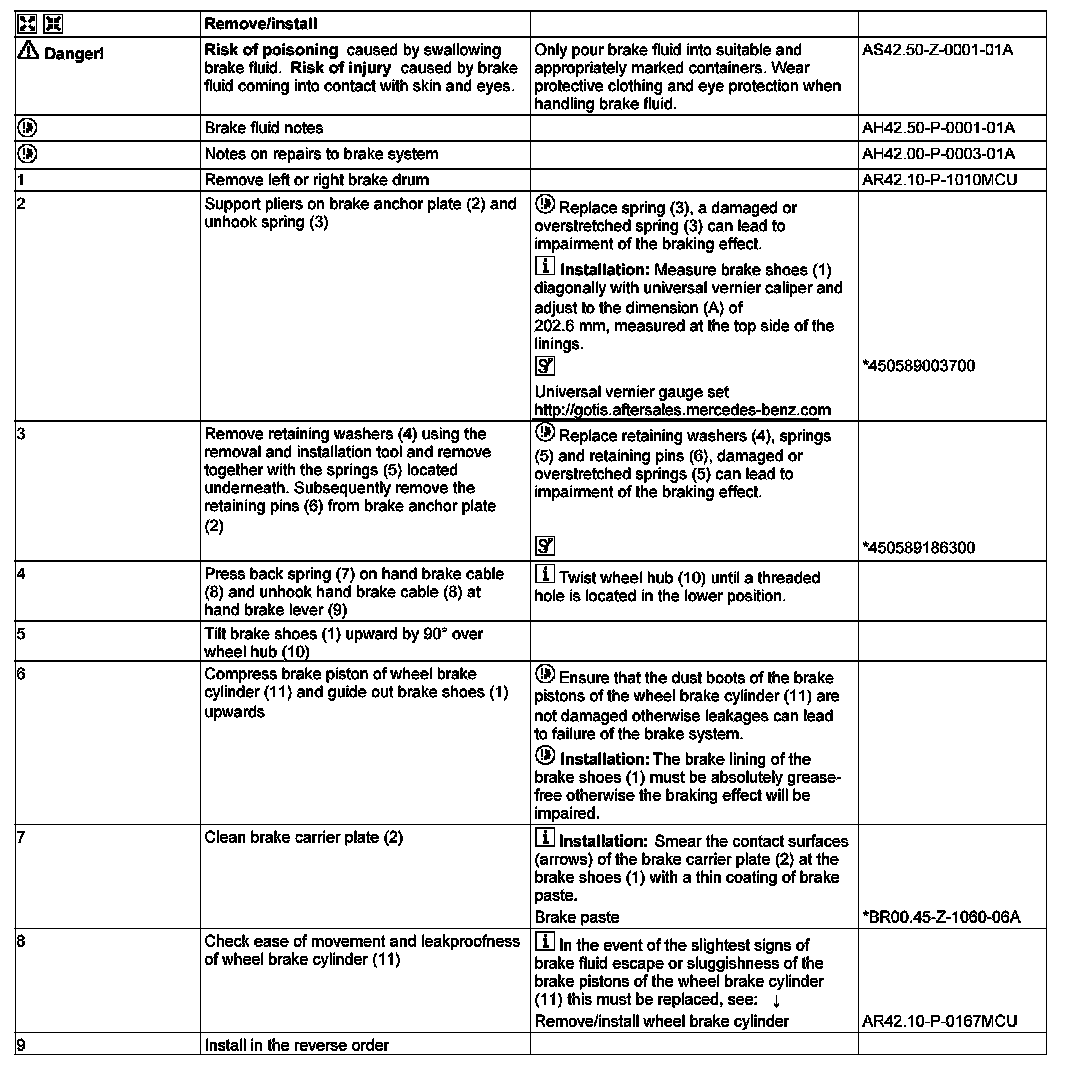

AR42.10-P-0165MCU Remove/Install Brake Shoes At Rear Axle

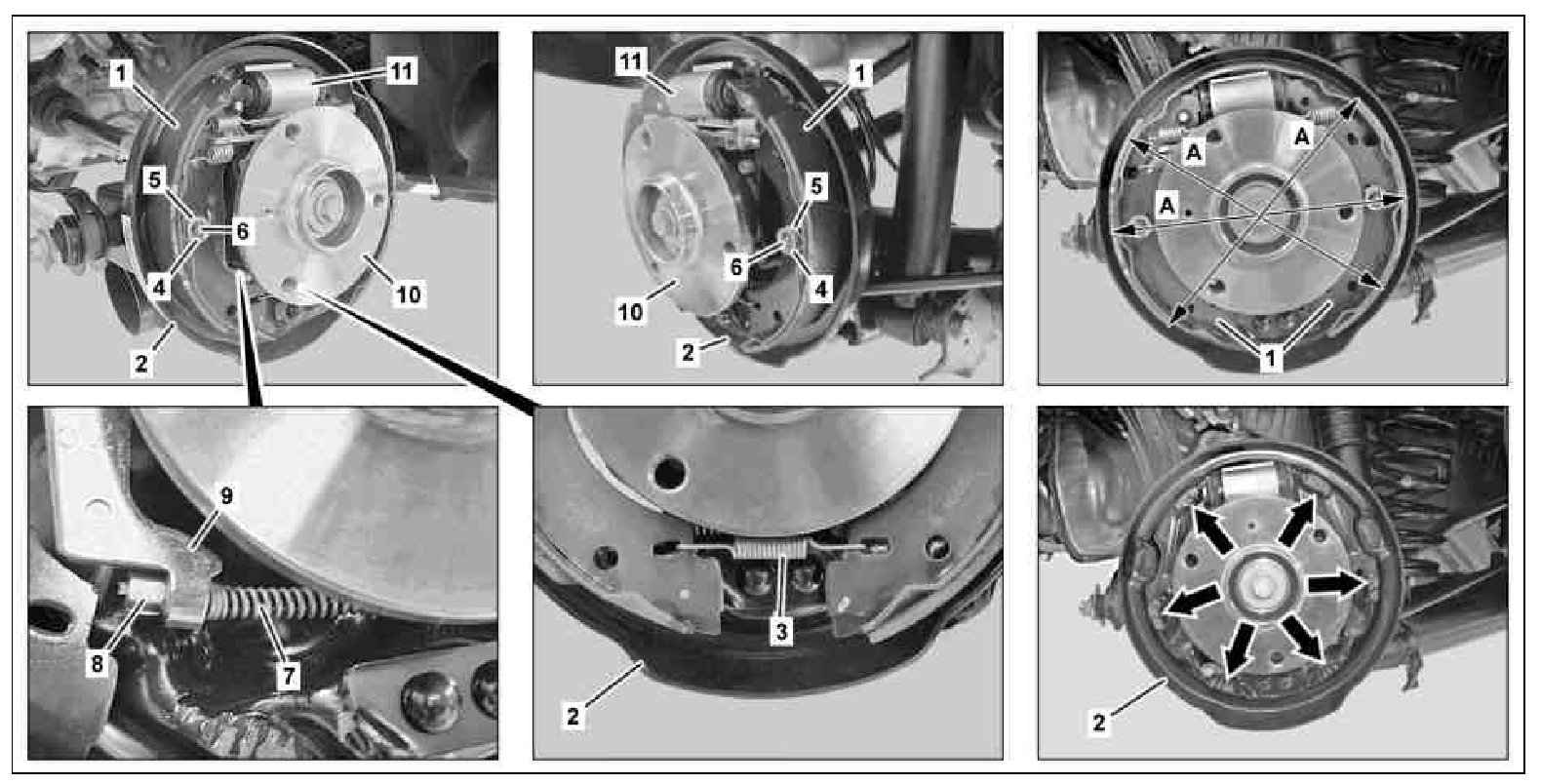

1 Brake shoes
2 Brake carrier plate
3 Spring
4 Lock washer
5 Spring
6 Retaining pin
7 Spring
8 Handbrake cable
9 Hand brake lever
10 Wheel hub
11 Wheel brake cylinder

A Dimension

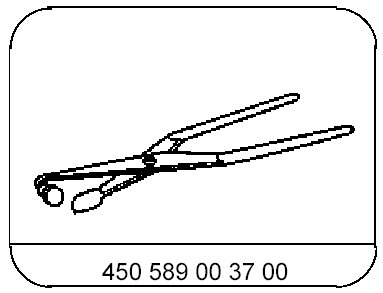

450 589 00 37 00, Pliers

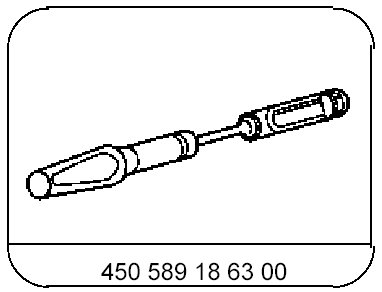

450 589 18 63 00, Removal and installation tool
