AN42.20-P-0003MCC Install Brabus Hand Brake Lever

AN42.20-P-0003MCC Install Brabus Hand Brake Lever

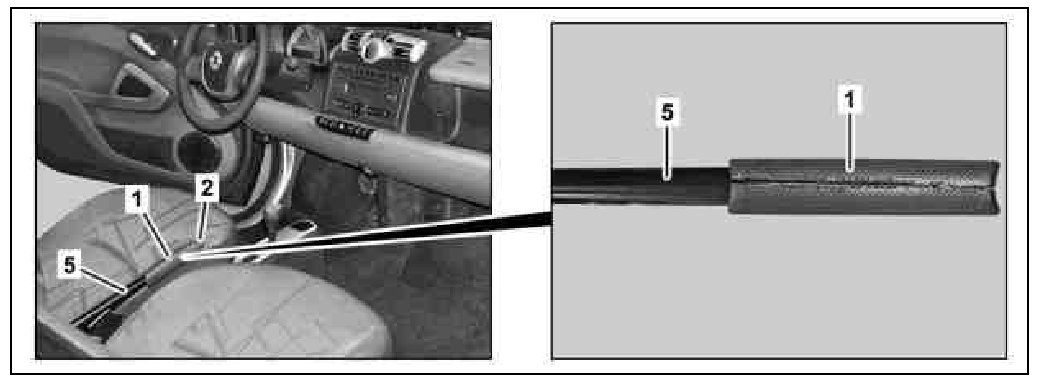

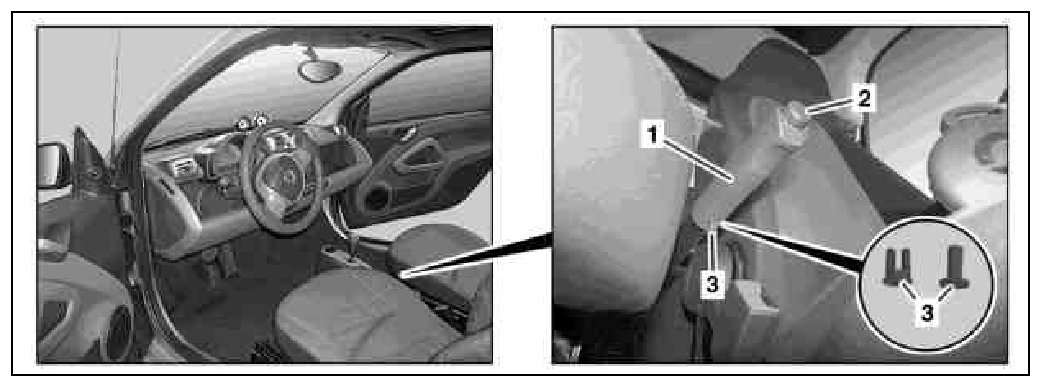

Shown on model 451.3 up to vehicle identification number (VIN) WME4513312K143823







1 Hand brake handle
2 Snap fasteners
3 Expansion clip

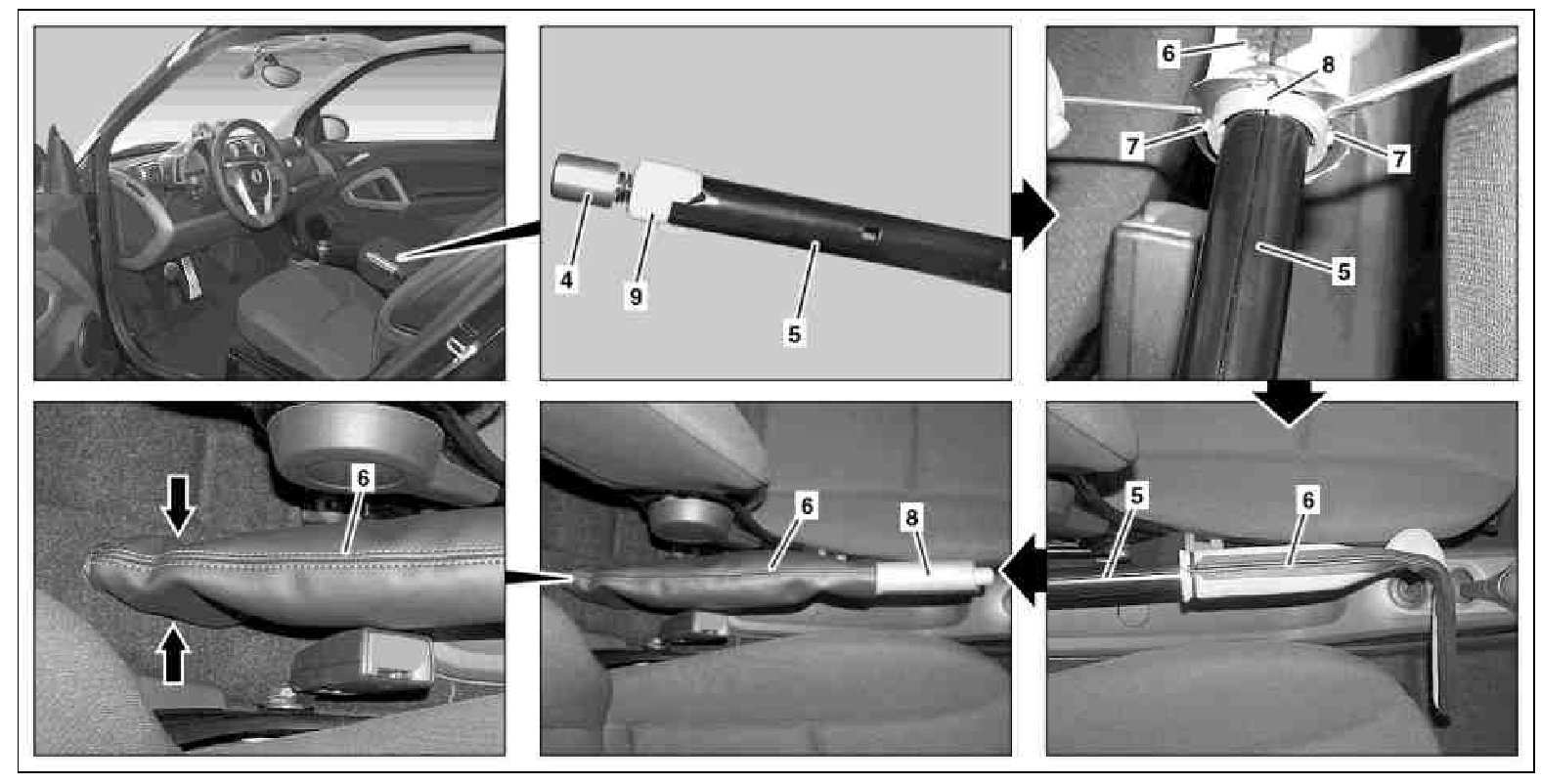

Shown on model 451.3 as of VIN WME4513312K143824







1 Hand brake handle
2 Snap fasteners
5 Hand brake lever







4 BRABUS push button
5 Hand brake lever
6 Boot
7 Allen screw
8 BRABUS hand brake lever
9 Adapter (on vehicles as of VIN WME4513312K143824)












110 589 03 59 00, Mounting wedge
