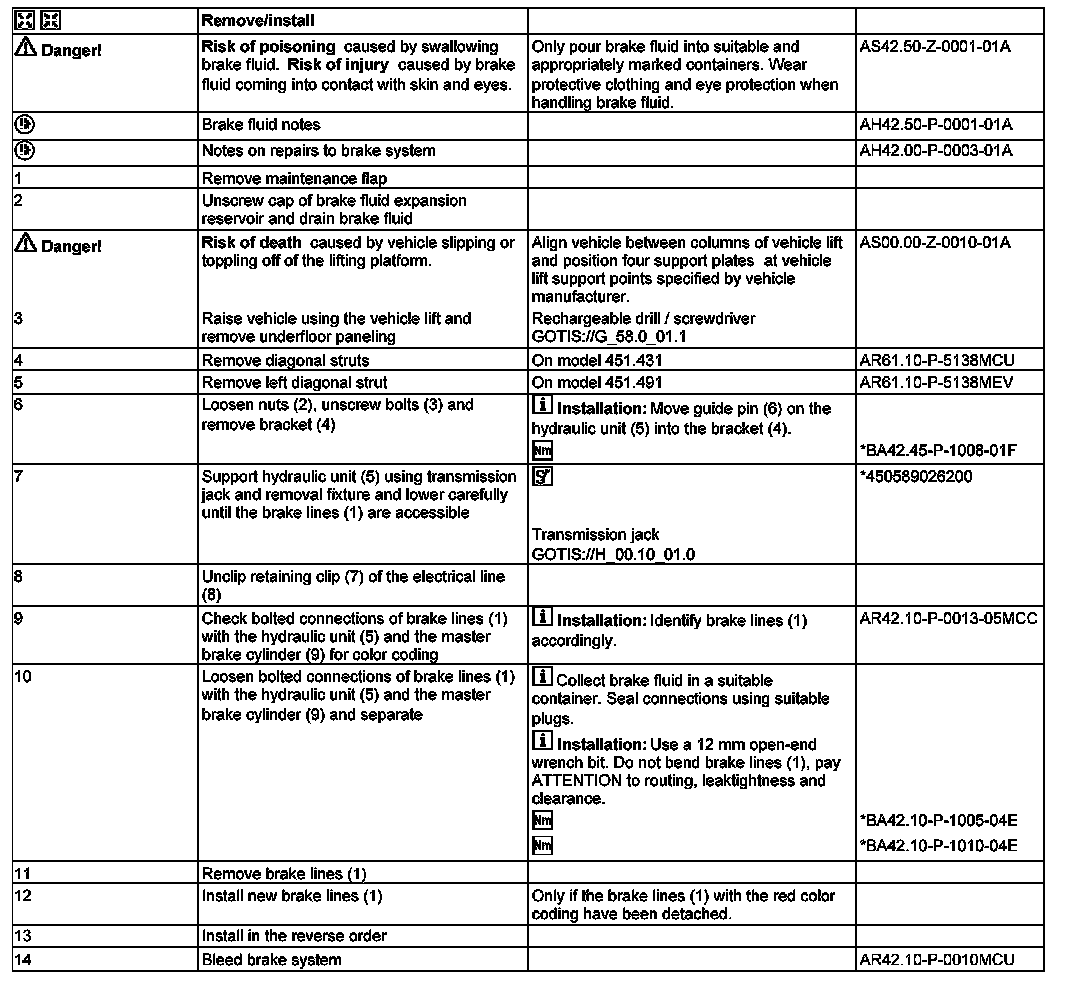

AR42.10-P-0034MCU Remove/Install Brake Line From the Master Brake Cylinder to the ESP Hydraulic Unit

AR42.10-P-0034MCU Remove/Install Brake Line From The Master Brake Cylinder To The ESP Hydraulic Unit

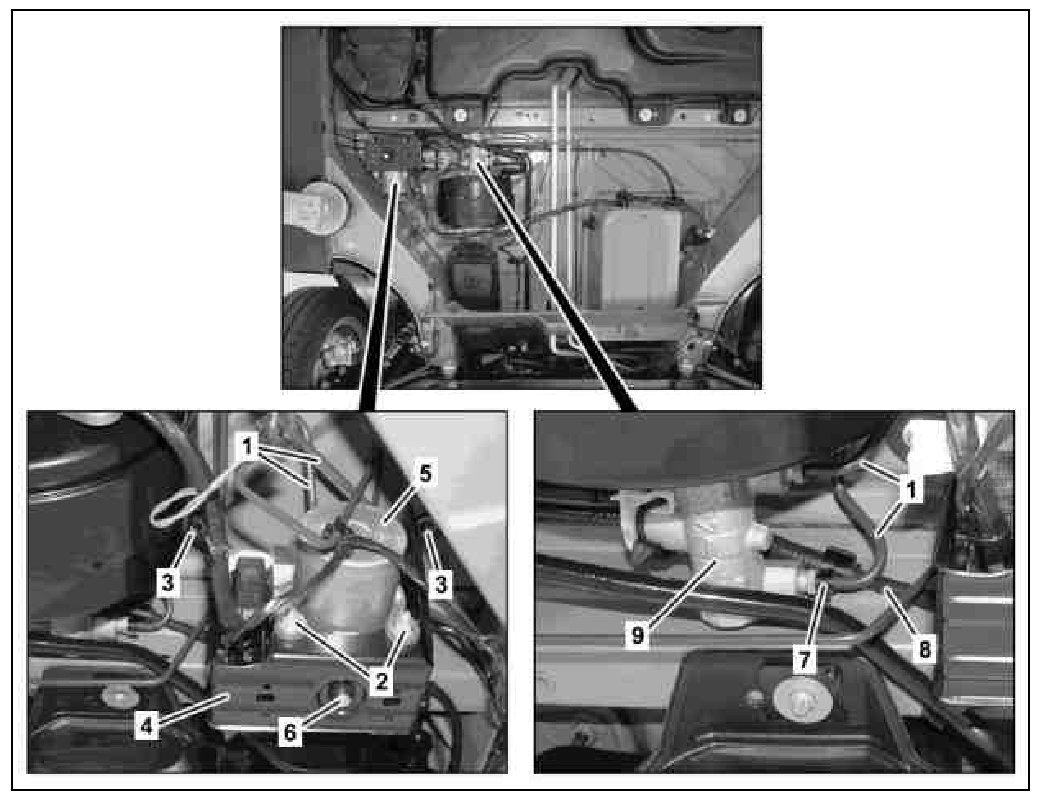

1 Brake lines
2 Nuts
3 Screw
4 Bracket
5 Hydraulic unit
6 Guide pin
7 Retaining clip
8 Electrical line
9 Master brake cylinder






















450 589 02 62 00, Removal assembly
