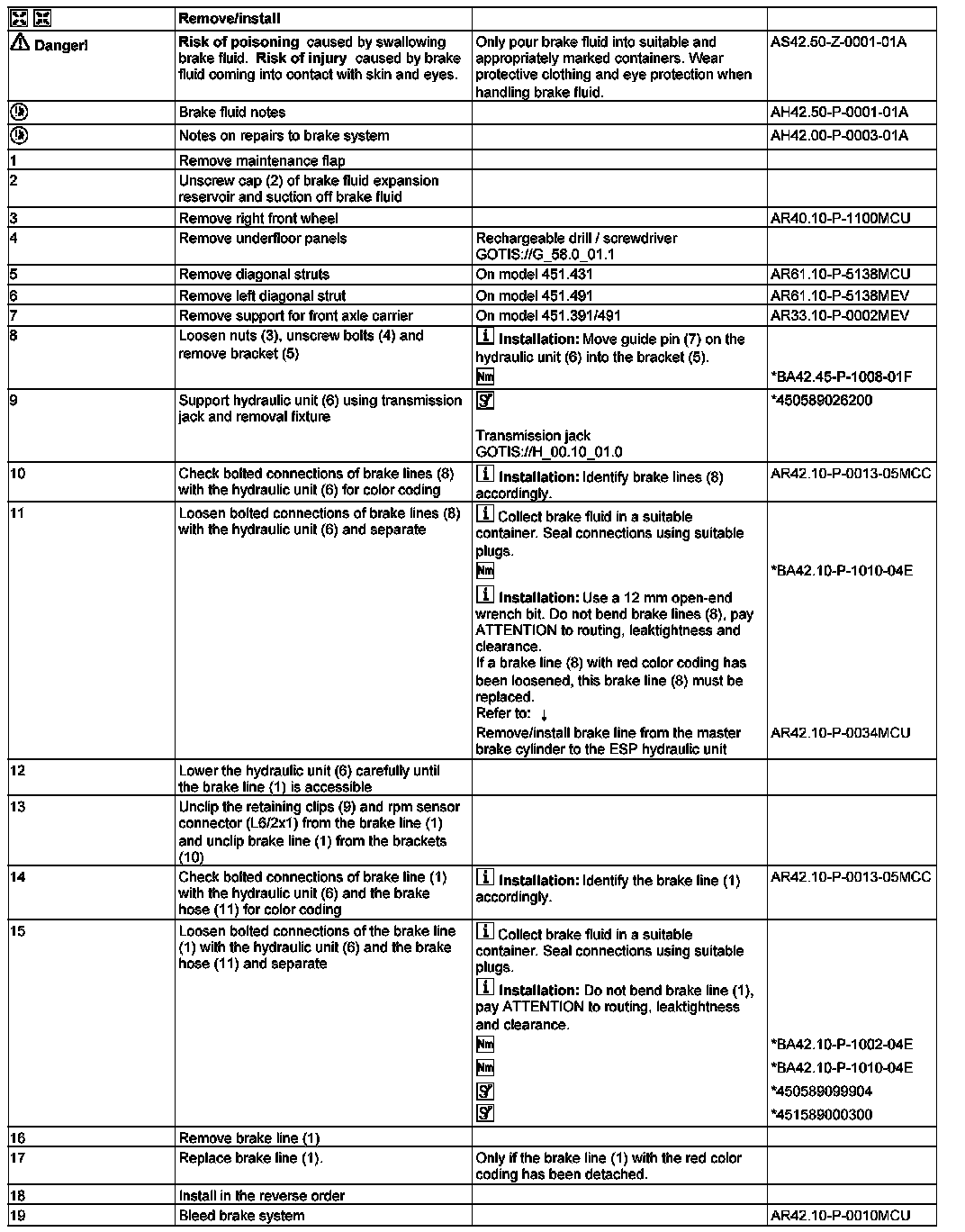

AR42.10-P-0033MCU Remove/Install Right Front Brake Line

AR42.10-P-0033MCU Remove/Install Right Front Brake Line

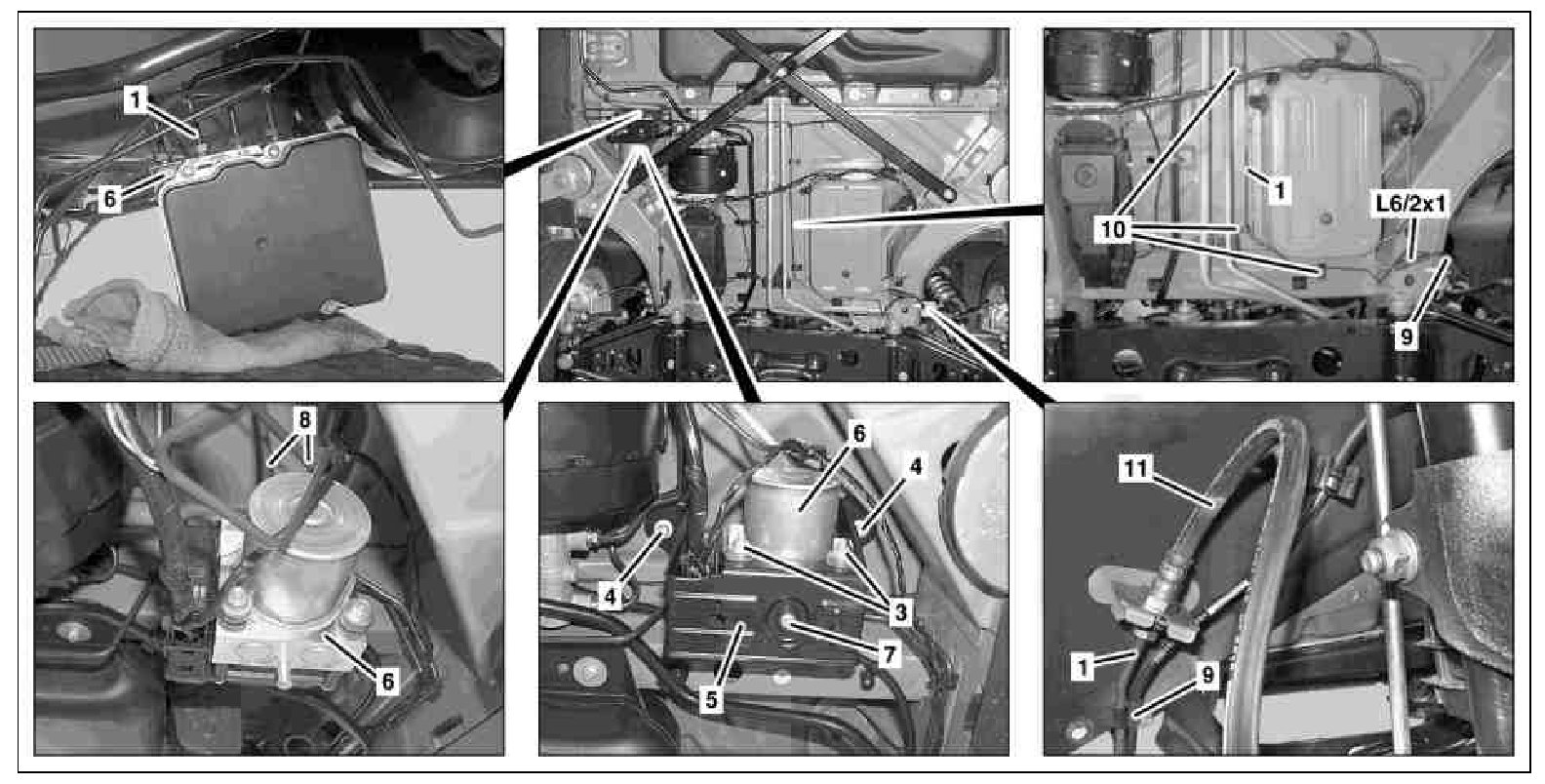

2 Cap







1 Brake line
3 Nuts
4 Screw
5 Bracket
6 Hydraulic unit
7 Guide pin
8 Brake lines
9 Retaining clip
10 Bracket
11 Brake hose
L6/2x1 Rpm sensor connector






















450 589 02 62 00, Removal assembly







450 589 09 99 04, Box wrench bit







451 589 00 03 00, Socket wrench set
