AR42.10-P-0023MCU Remove/Install Brake Hose at Rear Axle

AR42.10-P-0023MCU Remove/Install Brake Hose At Rear Axle

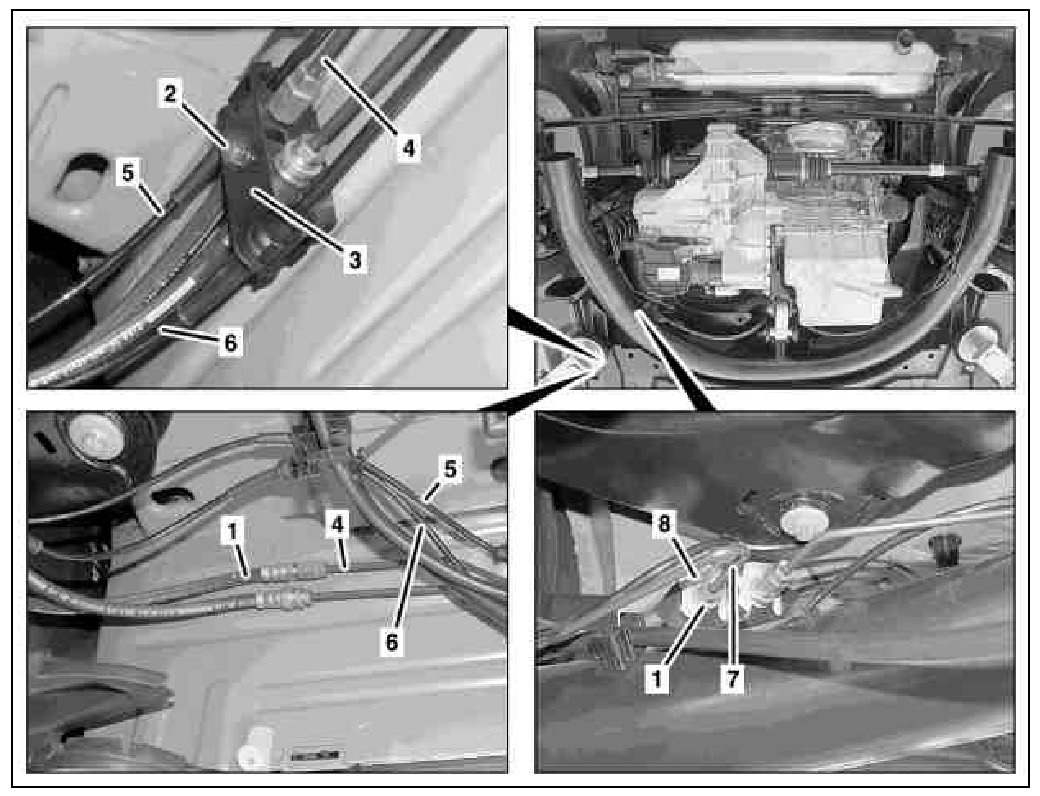

Shown on left rear brake hose (1)







1 Brake hose
2 Plastic nuts
3 Folding clamp
4 Brake line
5 Electrical line
6 Electrical line
7 Brake line
8 Retaining clamp

















450 589 09 99 04, Box wrench bit
