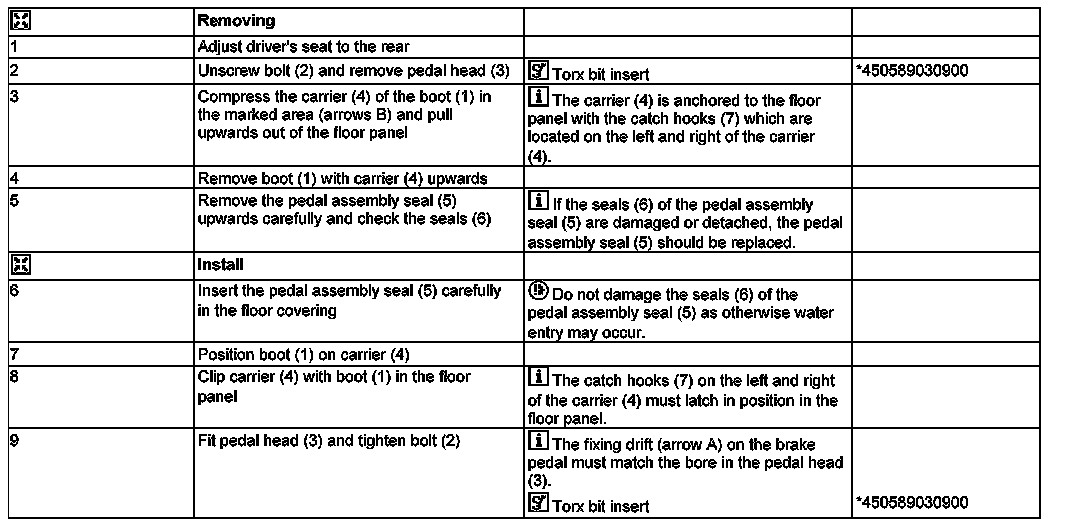

AR29.10-P-0340MCC Remove, Install Bellows At Brake Pedal

AR29.10-P-0340MCC Remove, Install Bellows At Brake Pedal
-With CODE (LHD) Left-hand drive vehicle

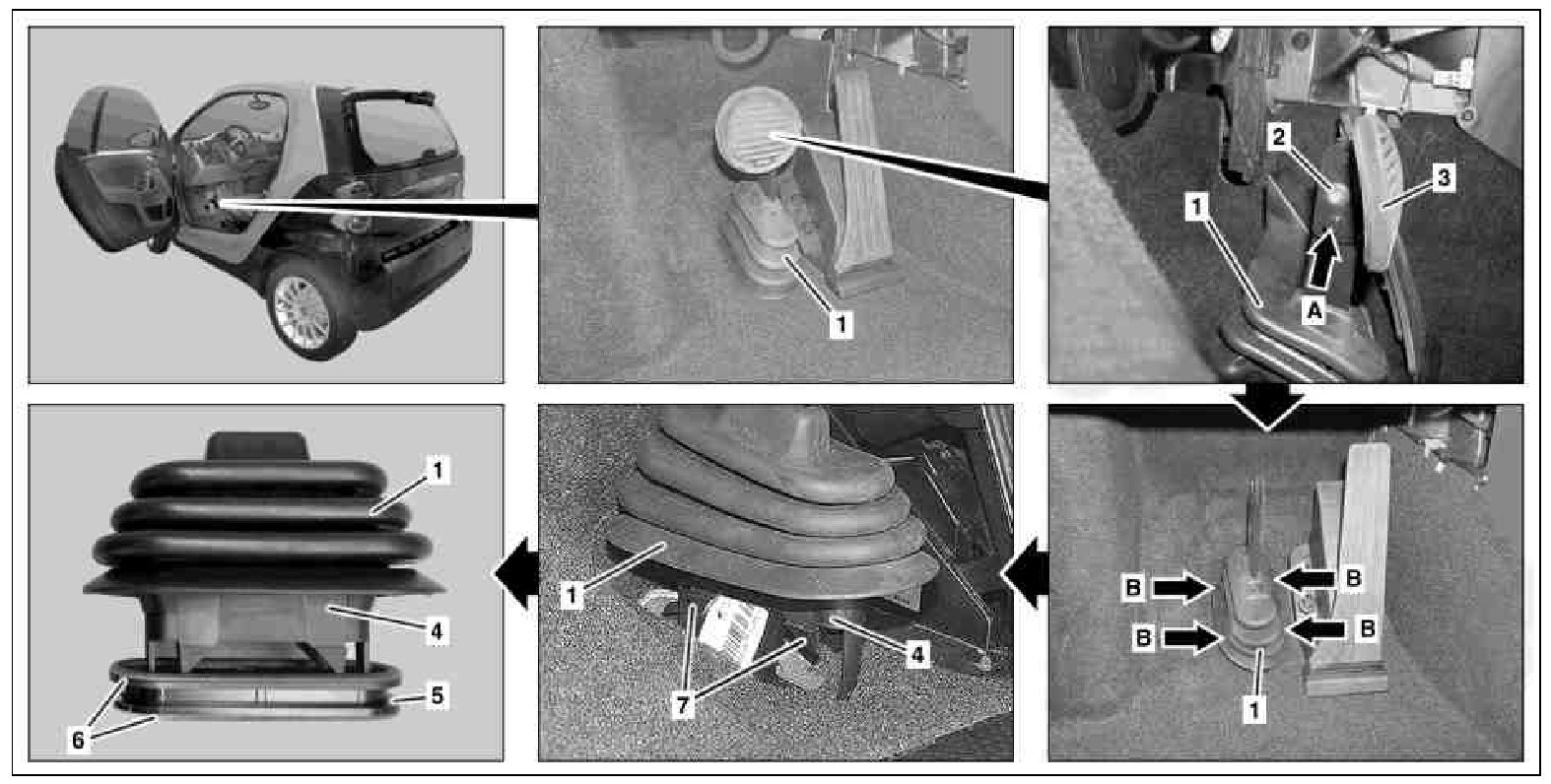

1 Bellows
2 Bolt
3 Pedal head
4 Carrier
5 Pedal seal
6 Seals
7 Catch hook












450 589 03 09 00, Torx bit insert
