AR88.30-P-0505MCC Remove/install front spoiler

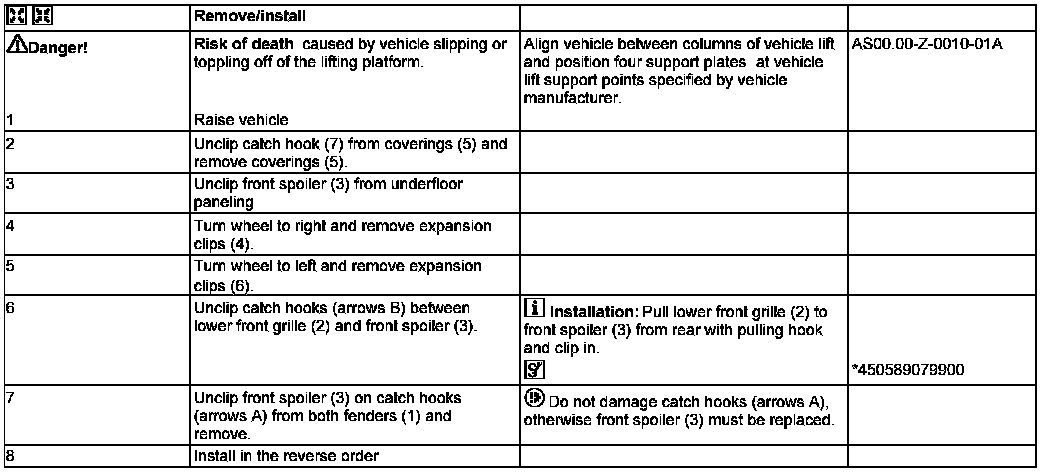

AR88.30-P-0505MCC Remove/Install Front Spoiler

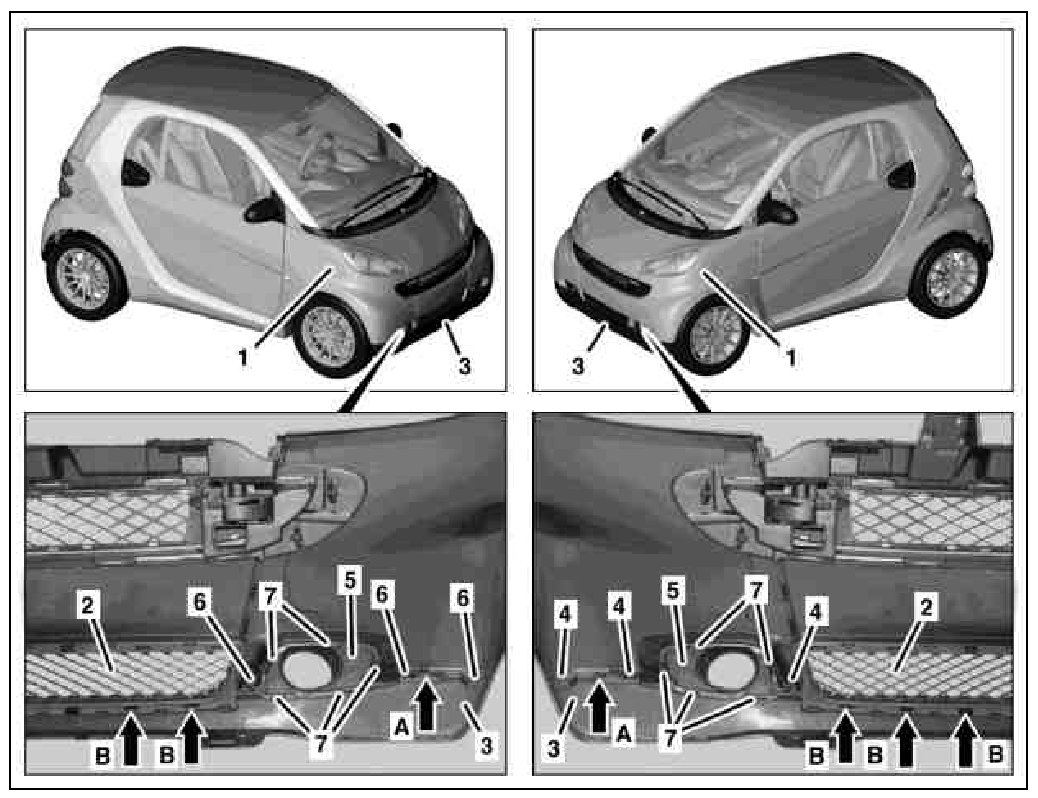

Shown on CBS front end with code (V07) Front fog lamp (FFO)







1 Fenders
2 Lower front grille
3 Front spoiler
4 Expansion clip
5 Covering
6 Expansion clip
7 Catch hook












450 589 07 99 00, Assembly tool set
