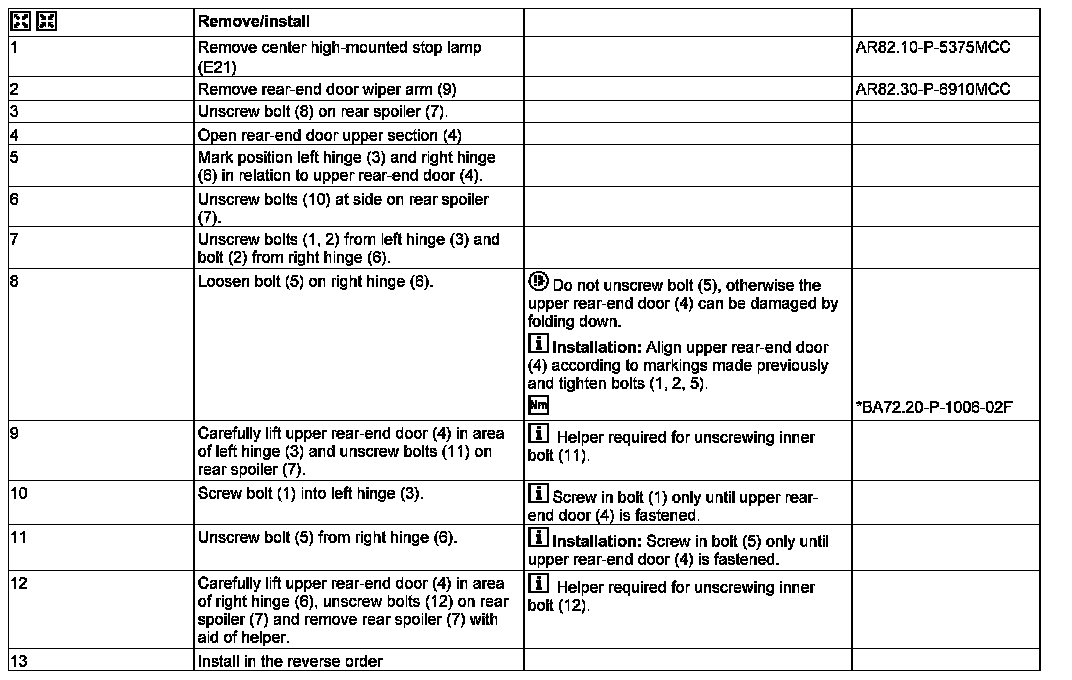

AR88.30-P-0500MCC Remove/install rear spoiler

AR88.30-P-0500MCC Remove/Install Rear Spoiler

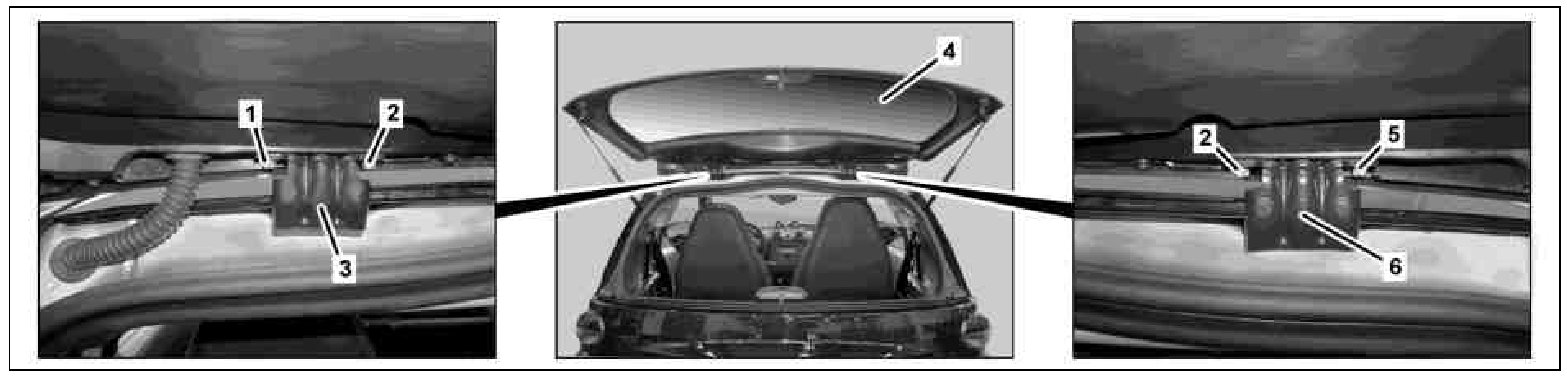

1 Screw
2 Screw
3 Left hinge
4 Rear-end door top
5 Screw
6 Right hinge







3 Left hinge
6 Right hinge

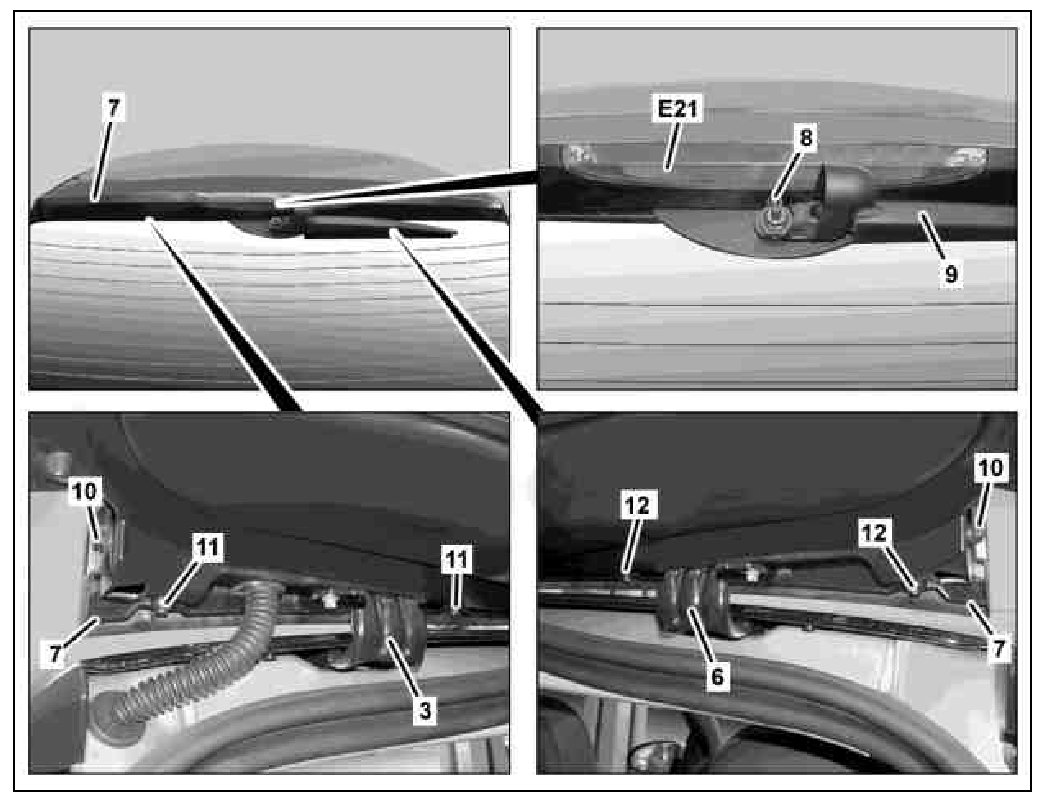

7 Rear spoiler
8 Screw
9 Rear-end door wiper arm
10 Screw
11 Screw
12 Screw
E21 Center high-mounted stop lamp
