AZ88.30-P-0003-03MCC Retrofit Front Mud Guards

AZ88.30-P-0003-03MCC Retrofit Front Mud Guards

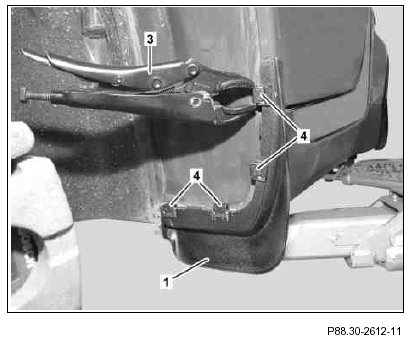

The work procedure is shown on the left side of the vehicle.
1. Clean assembly area of front dirt trap (1).
2. Position front dirt trap (1) on fender and side skirt.
3. Position clips (4) with pliers (3) and push onto front dirt trap (1).
Ensure that the clamps (4) are seated correctly.

4. Press clips (4) into final position with hammer handle.
Counterhold front dirt trap (1) by hand.
