AR61.25-P-6610MCO Remove/Install Mounting Console For Bulkhead on Floor

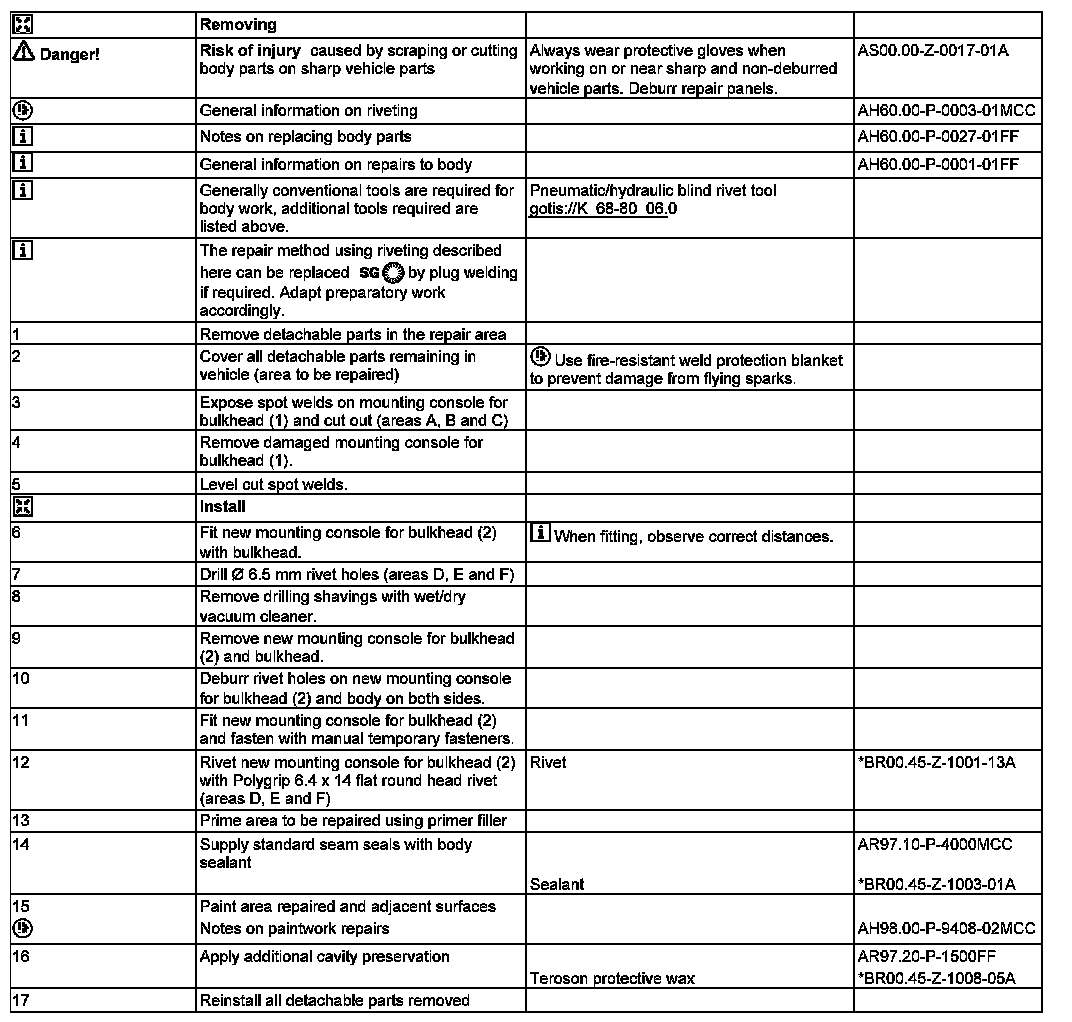

AR61.25-P-6610MCO Remove/Install Mounting Console For Bulkhead On Floor

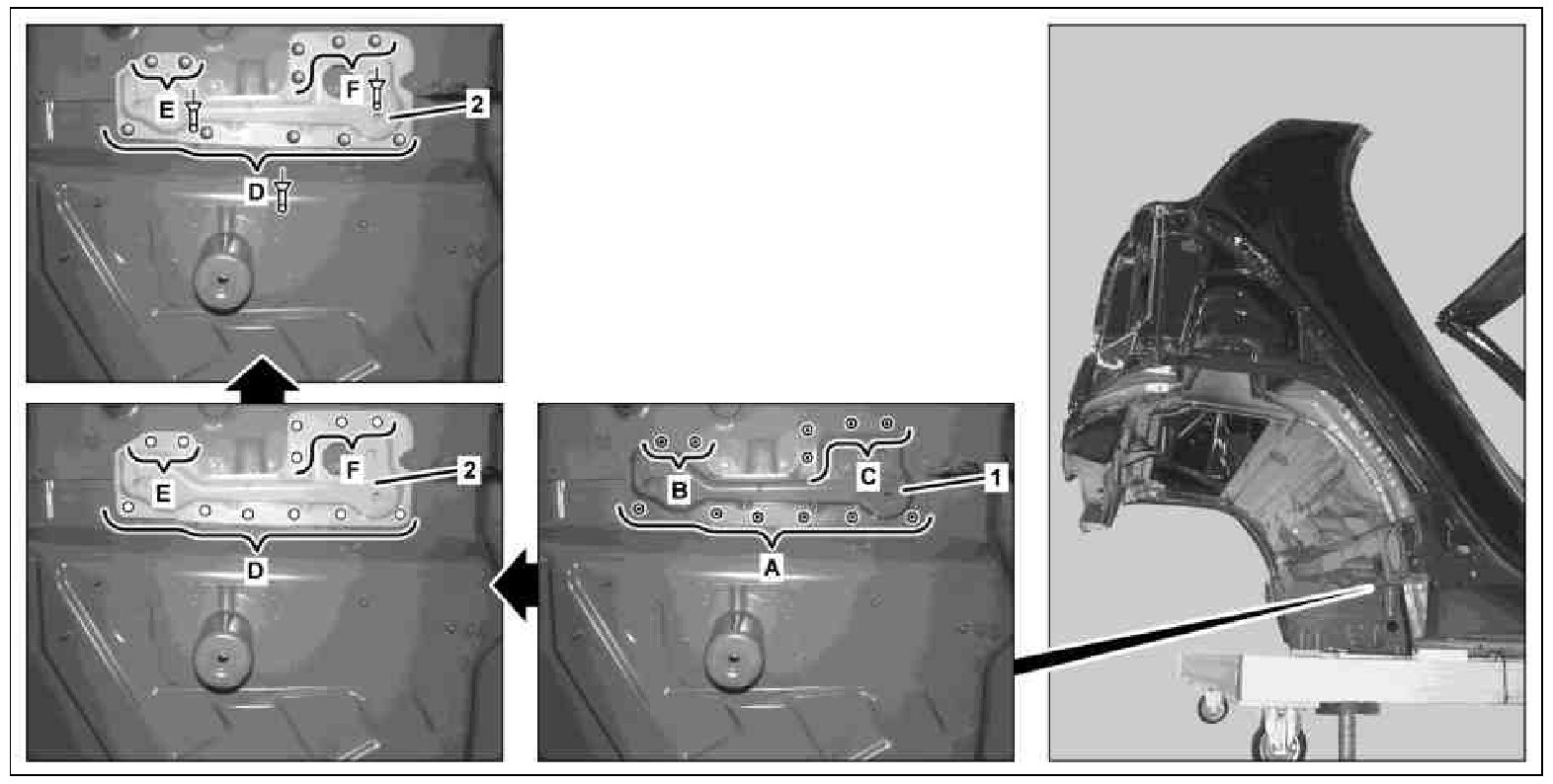

1 Mounting console for bulkhead
2 New mounting console for bulkhead
