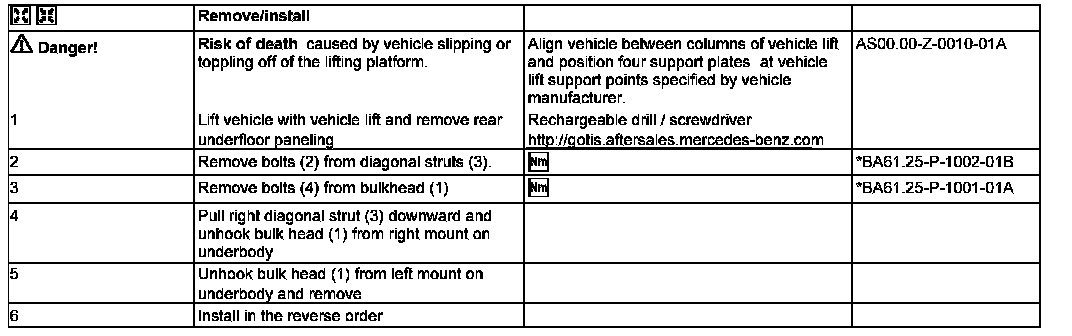

AR61.25-P-6600MCU Remove/Install Bulkhead
AR61.25-P-6600MCU Remove/Install Bulkhead
AR61.25-P-6600MCU Remove/Install Bulkhead

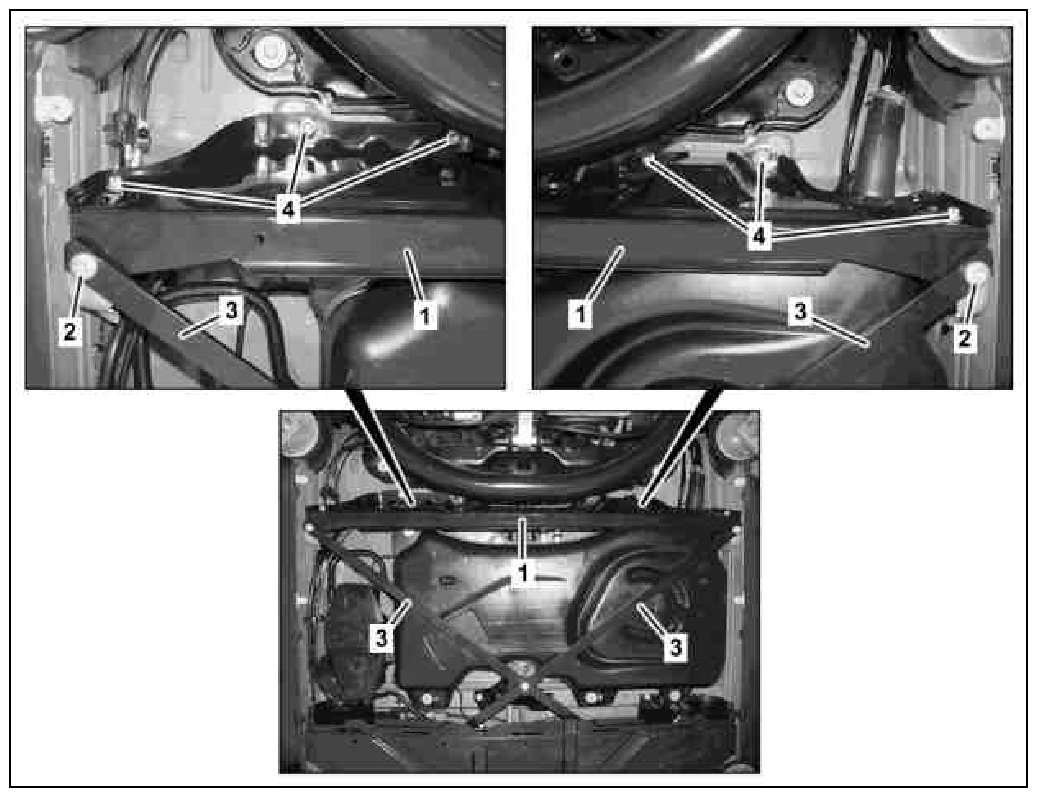

1
Bulkhead
2
Screw
3
Diagonal strut
4
Bolts
