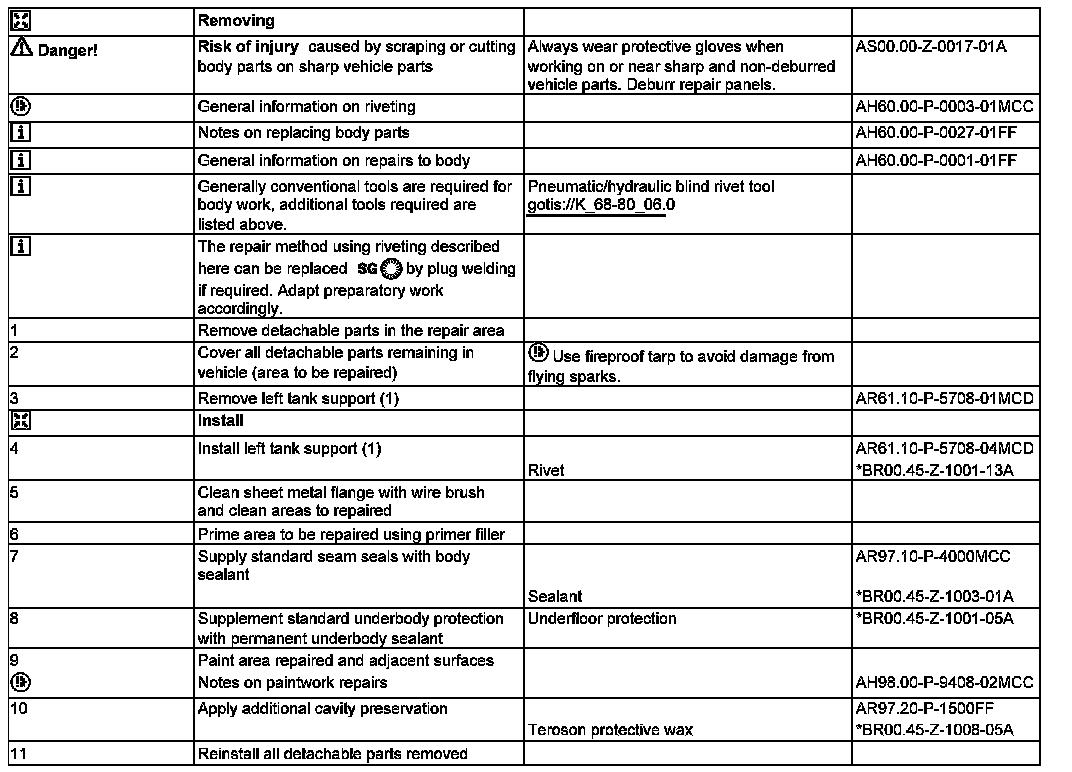

AR61.10-P-5708MCD Replace Tank Support





AR61.10-P-5708MCD Replace Tank Support
- Tank bracket left

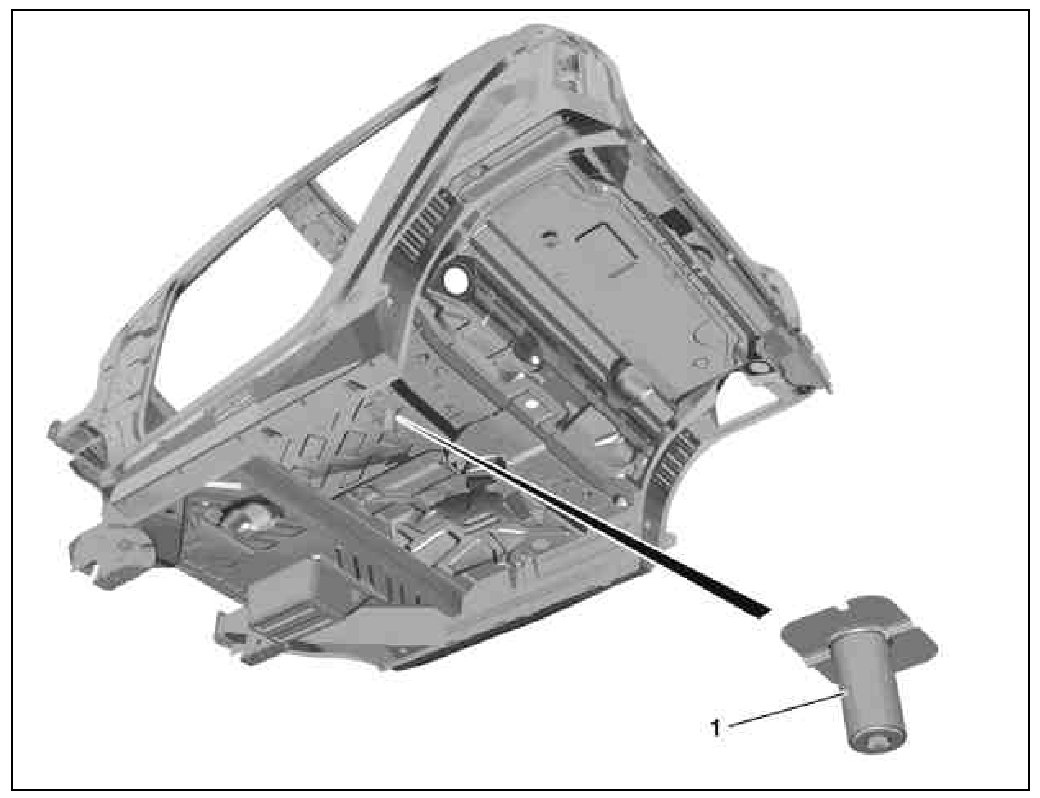

Illustrated on model 451.3







1 Left tank support
