AZ88.30-P-0020MCC Retrofit Rear Diffuser



AZ88.30-P-0020MCC Retrofit Rear Diffuser

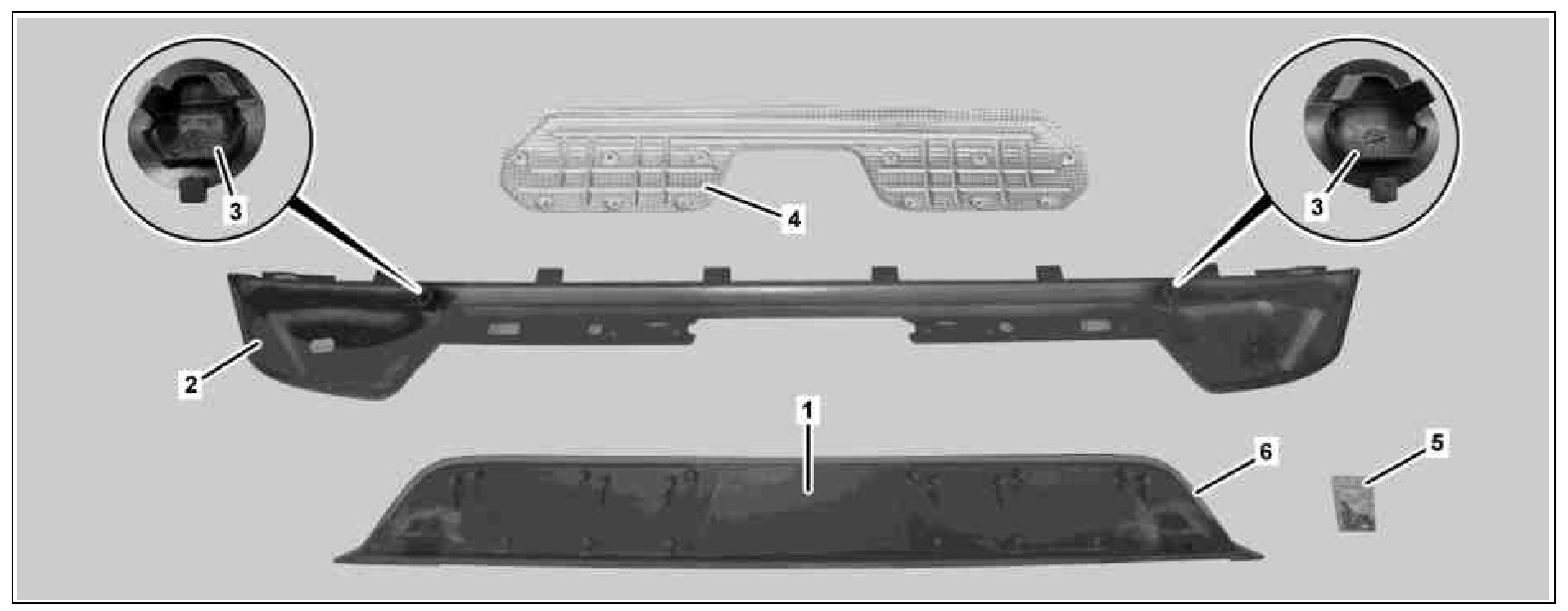

1 Rear diffuser
2 Rear styling conversion kit
3 Cap
4 Heat shield
5 Bolts
6 Protective foil
