Home >> Smart >> 2012 >> ForTwo Coupe (451.331) L3-1.0L (132.910) >> Repair and Diagnosis >> Accessories and Optional Equipment >> Voice Activation System >> Voice Activation Microphone >> Service and Repair >> AZ82.70-P-0100MCC Retrofit External Microphone For Navigation System

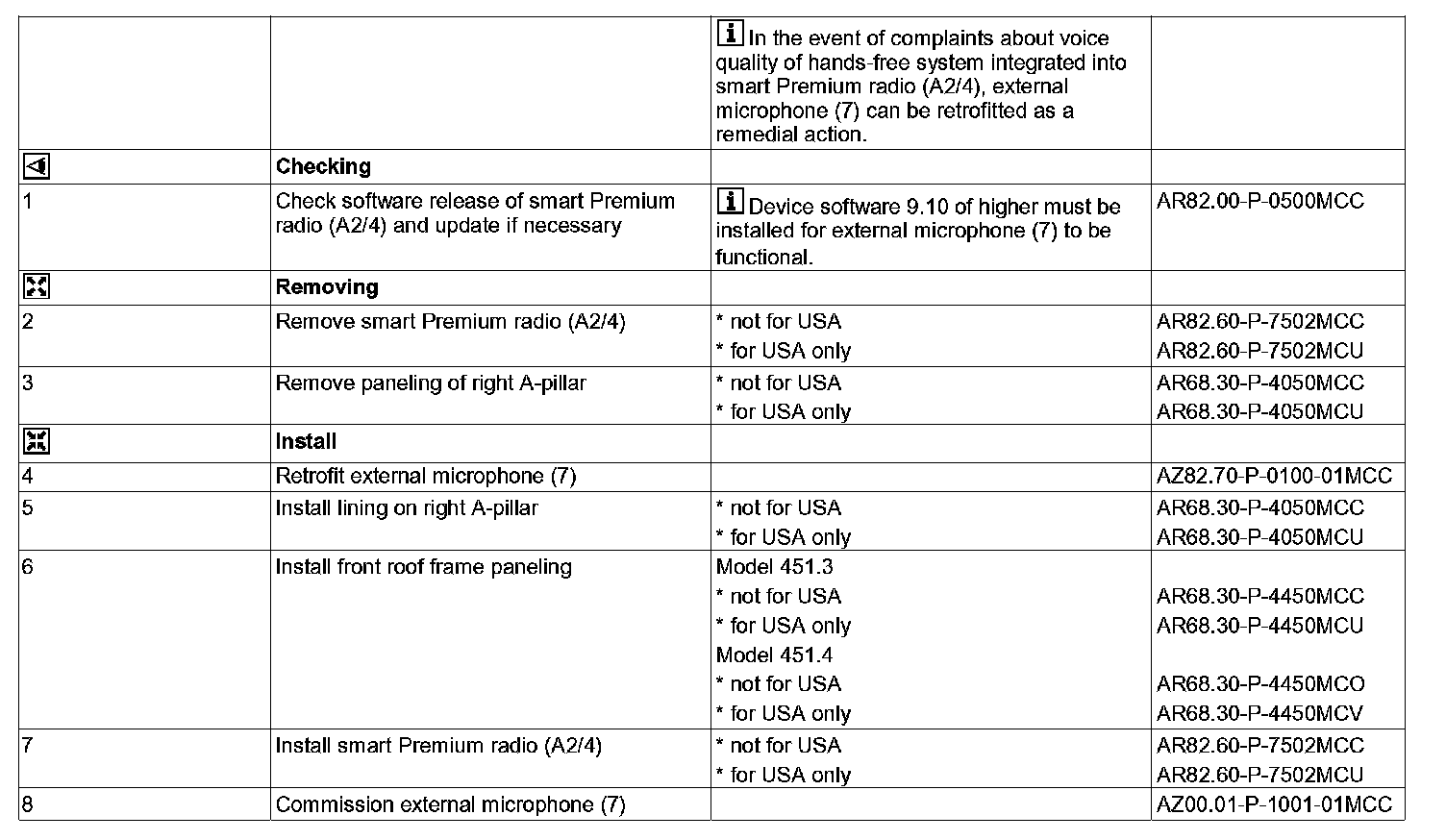

AZ82.70-P-0100MCC Retrofit External Microphone For Navigation System




AZ82.70-P-0100MCC Retrofit External Microphone For Navigation System
- MODEL 451.3 /4
- with CODE (527) High-Line radio
- except CODE (P02) car2go

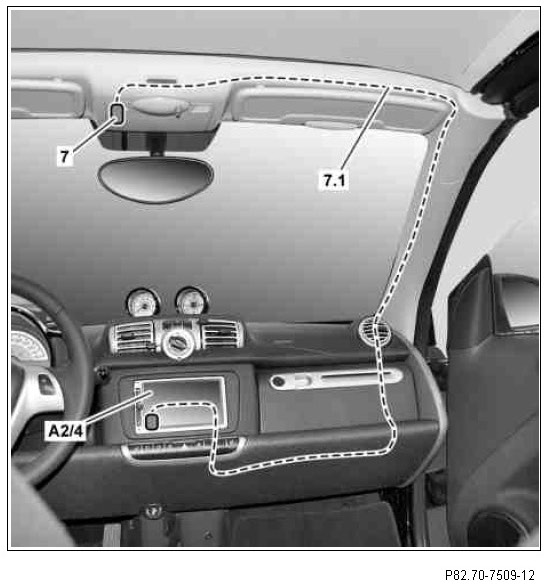

7 External microphone
7.1 External microphone wiring harness

A2/4 smart Premium radio
