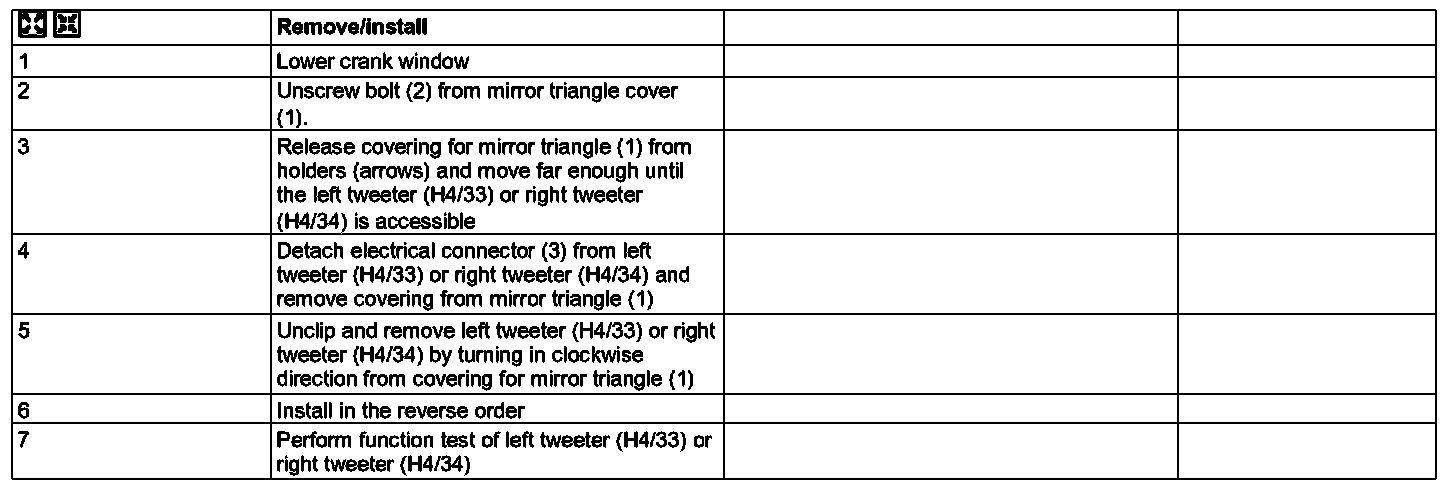

AR82.62-P-7850MCC Remove/Install Front Door Speakers In Mirror Triangle




AR82.62-P-7850MCC Remove/Install Front Door Speakers In Mirror Triangle
- with CODE (C17) smart surround sound system

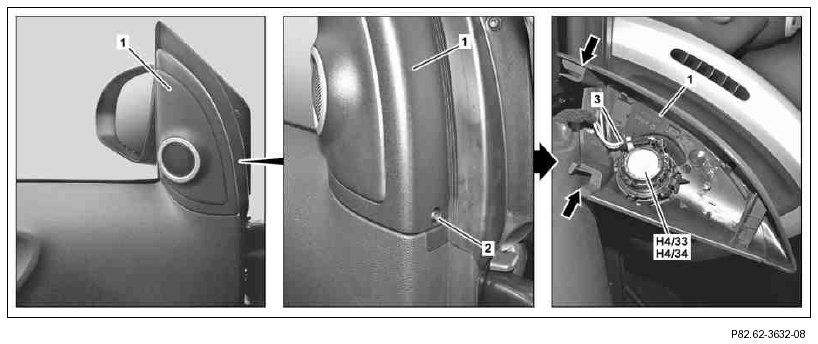

1 Mirror triangle cover
2 Screw
3 Electrical connector
H4/33 Left tweeter
H4/34 Right tweeter
