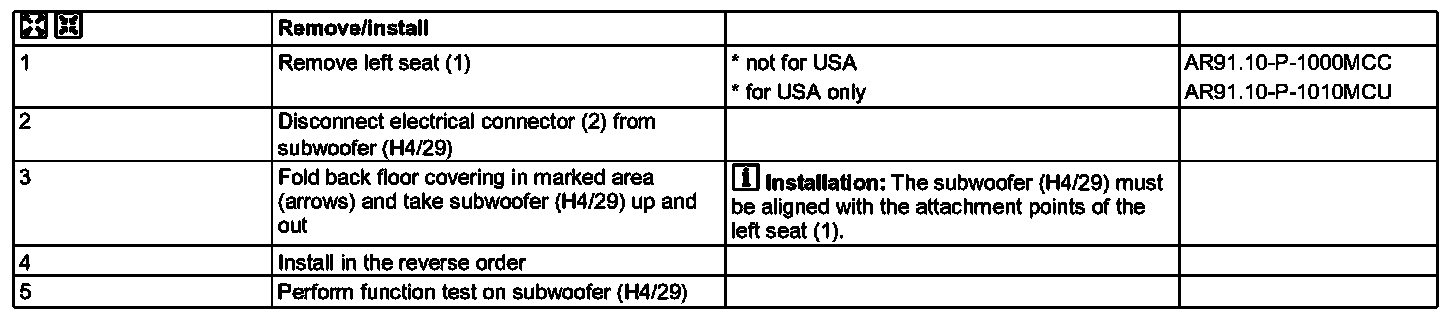

AR82.62-P-7839MCC Remove/Install Bass Module Speaker

AR82.62-P-7839MCC Remove/Install Bass Module Speaker
- with CODE (C54) Sound system 2
- as of 31.8.10
- with CODE (C17) smart surround sound system

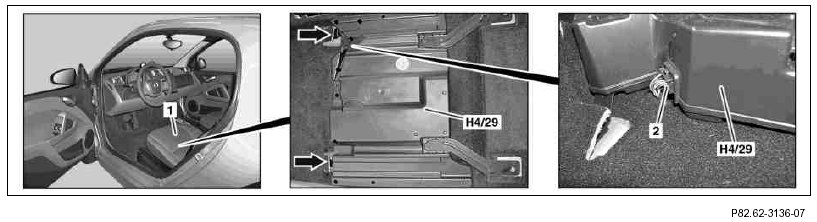

1 Left seat
2 Electrical connector
H4/29 Subwoofer
