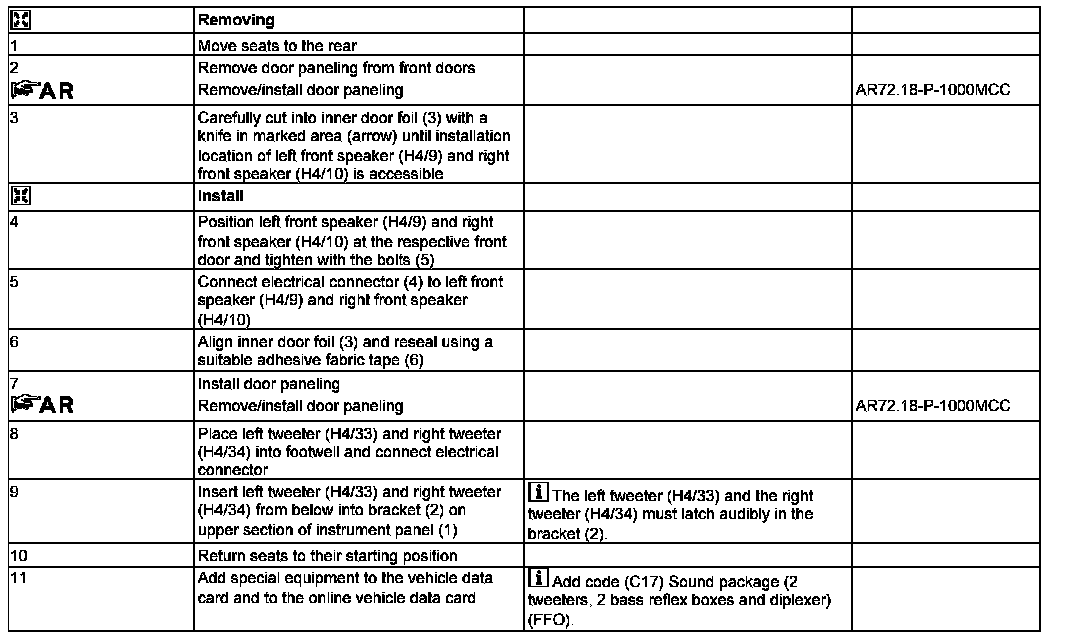

AZ82.62-P-0002MCC Retrofit Sound System

AZ82.62-P-0002MCC Retrofit Sound System
- with CODE (C08) Radio preinstallation incl. rod antenna (FFO)







3 Inner door foil
4 Electrical connector
5 Screw
6 Adhesive fabric tape

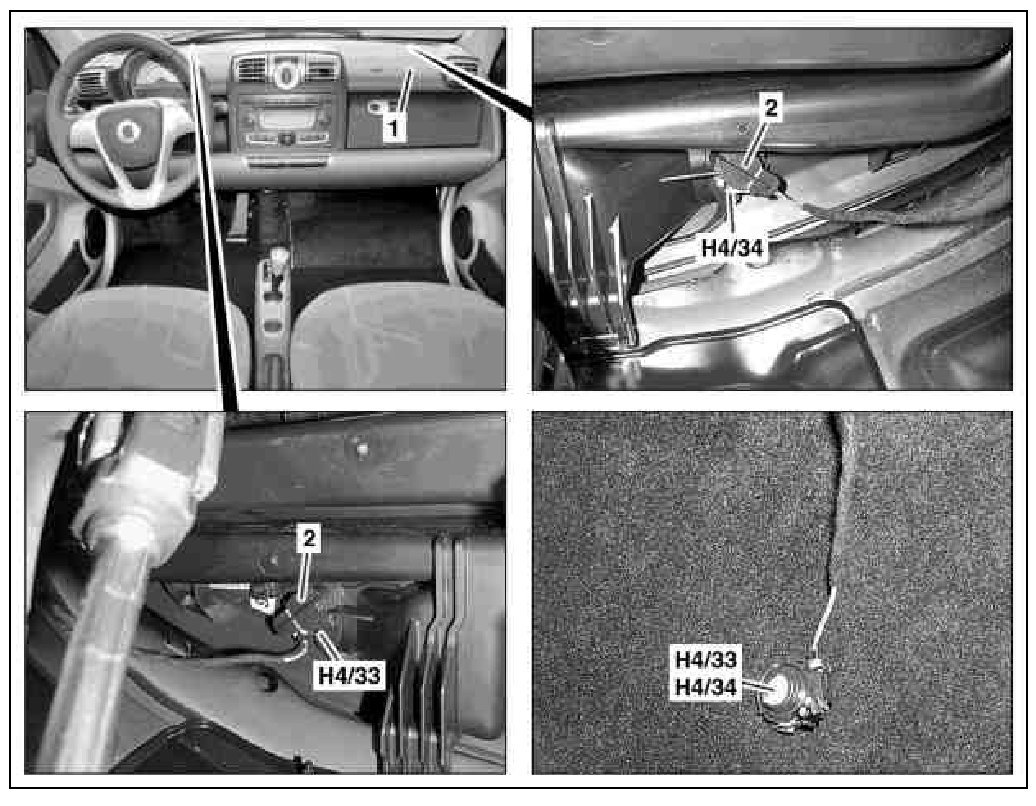

H4/9 Left front loudspeaker
H4/10 Right front loudspeaker







1 Instrument panel top section
2 Bracket
H4/33 Left tweeter
H4/34 Right tweeter
