Seat Belt Systems: Service and Repair

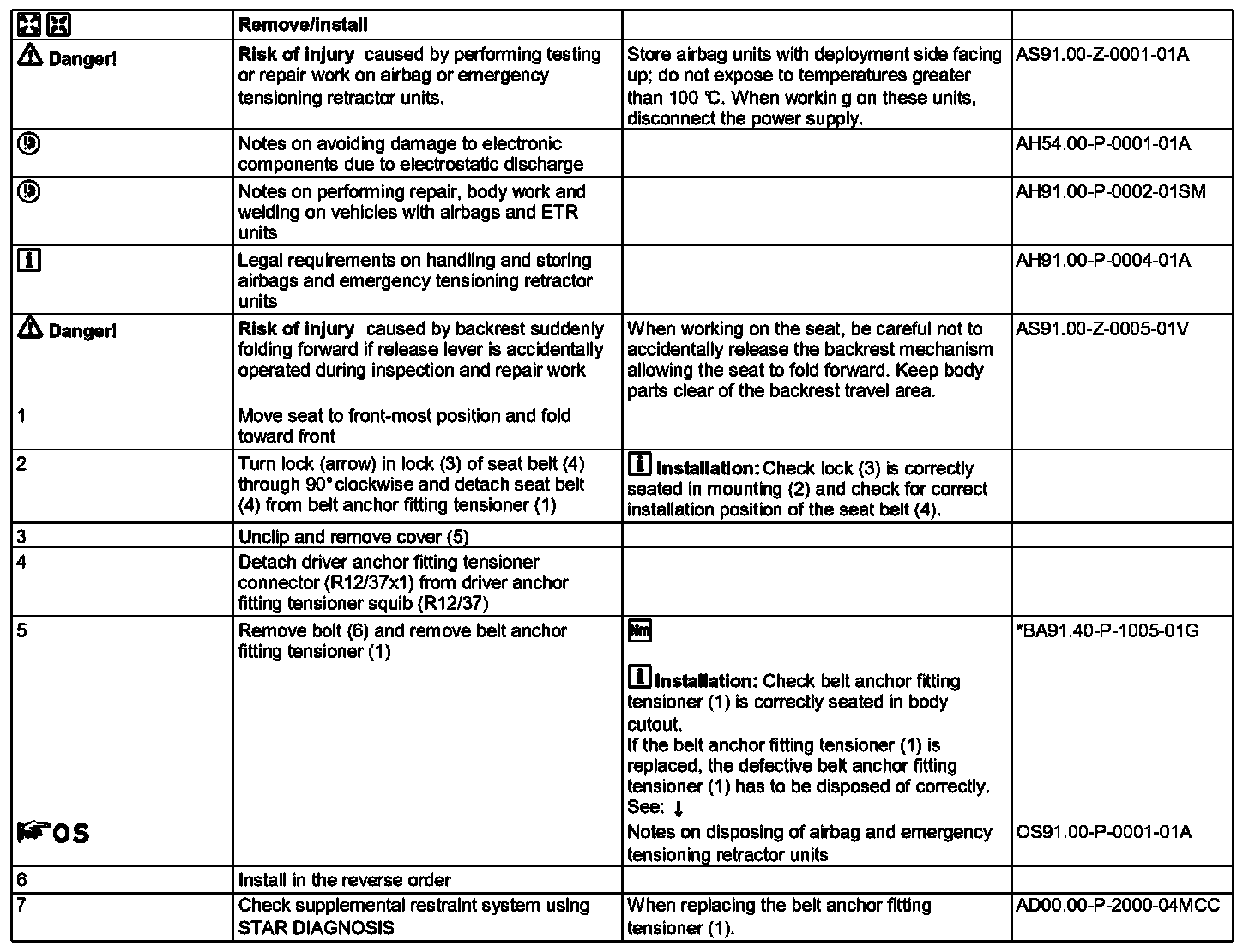

AR91.40-P-1011MCU Remove/Install Emergency Tensioning Retractor
- MODEL 451.3 /4 as of 31.8.10
- belt anchor fitting tensioner on driver-side







1 Belt anchor fitting tensioner
2 Support
3 Lock
4 Seat belt
5 Cover
6 Screw
R12/37 Driver anchor fitting tensioner squib
R12/37x1 Driver anchor fitting tensioner connector
