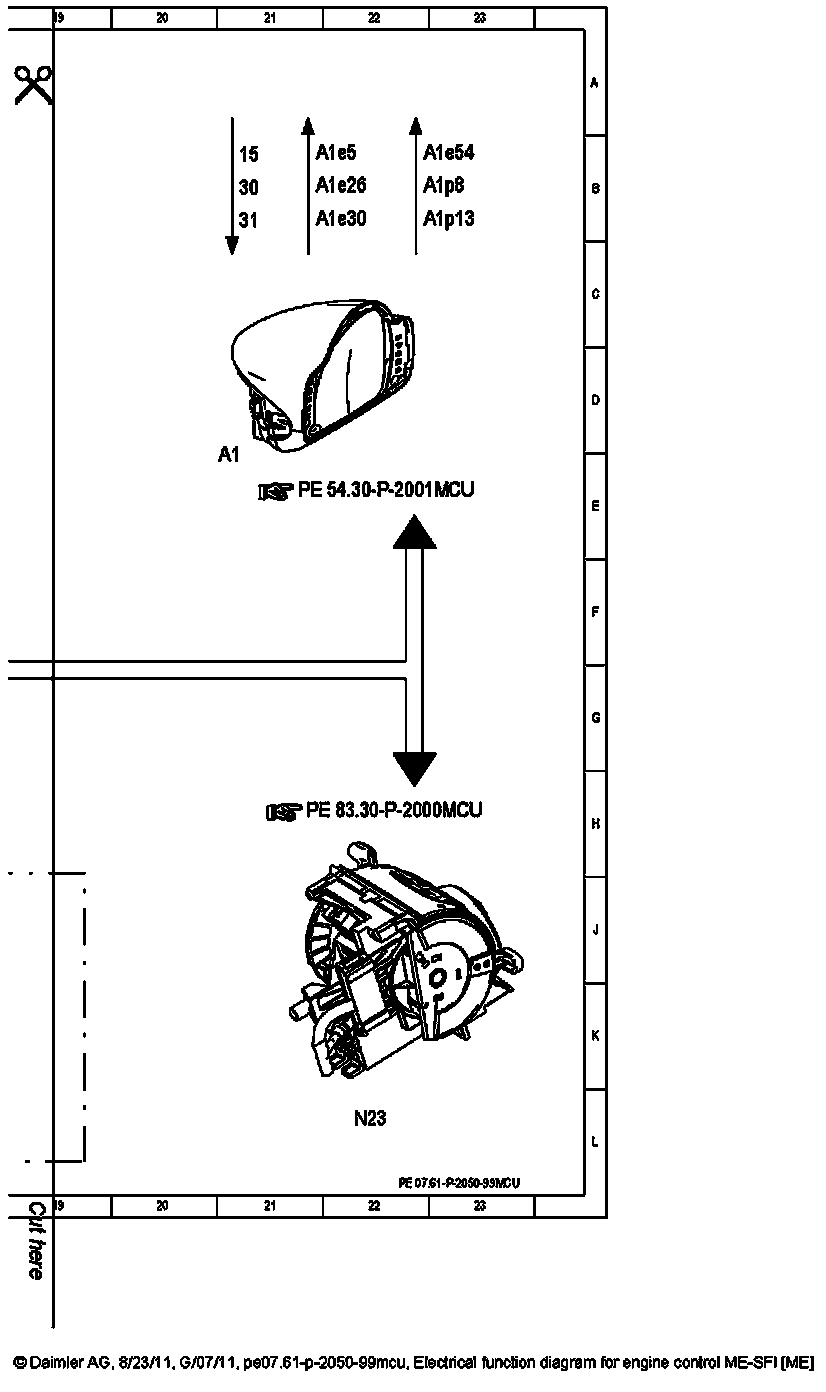

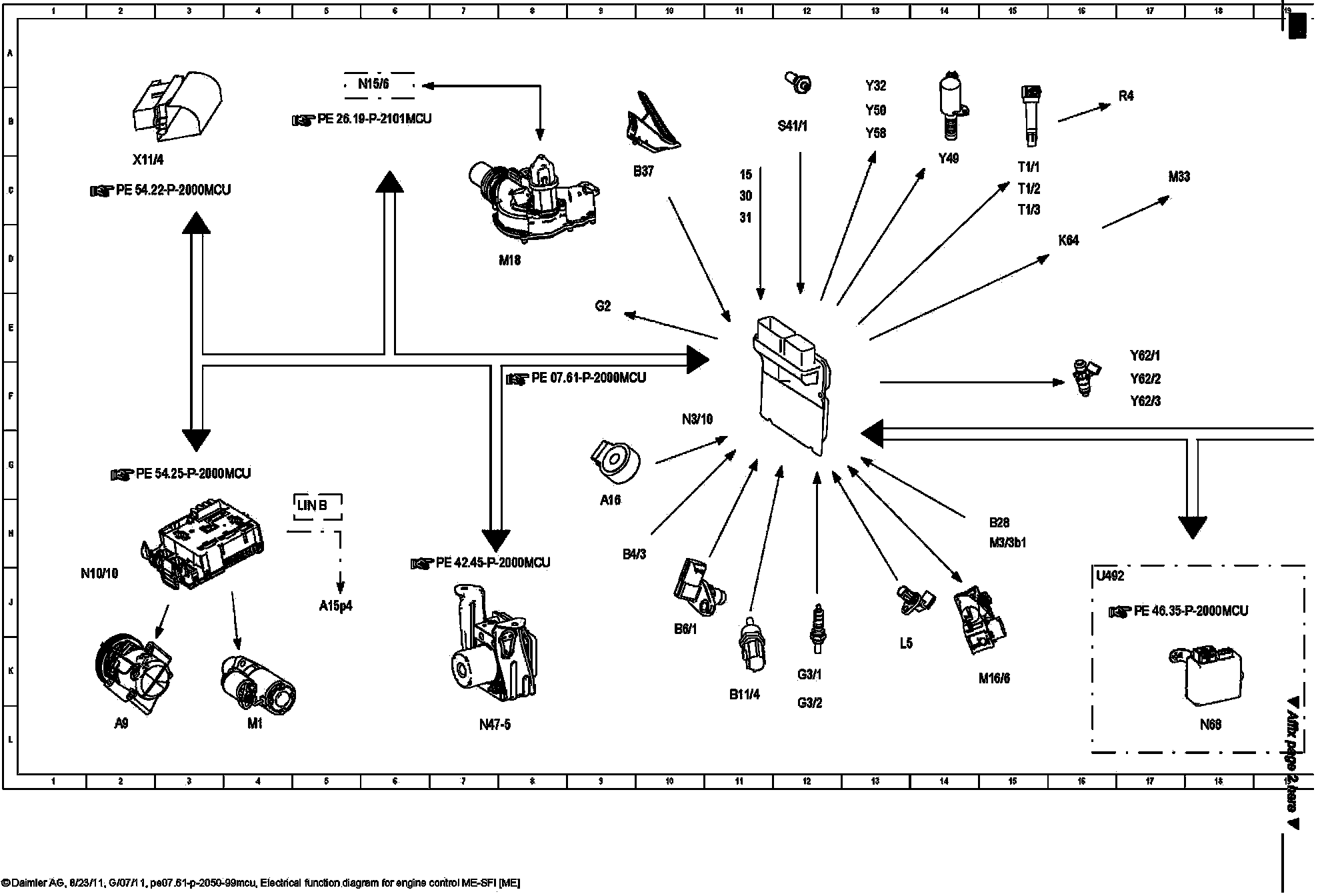

PE07.61-P-2050-99MCU Electrical Function Diagram For Engine Control ME-SFI (ME)

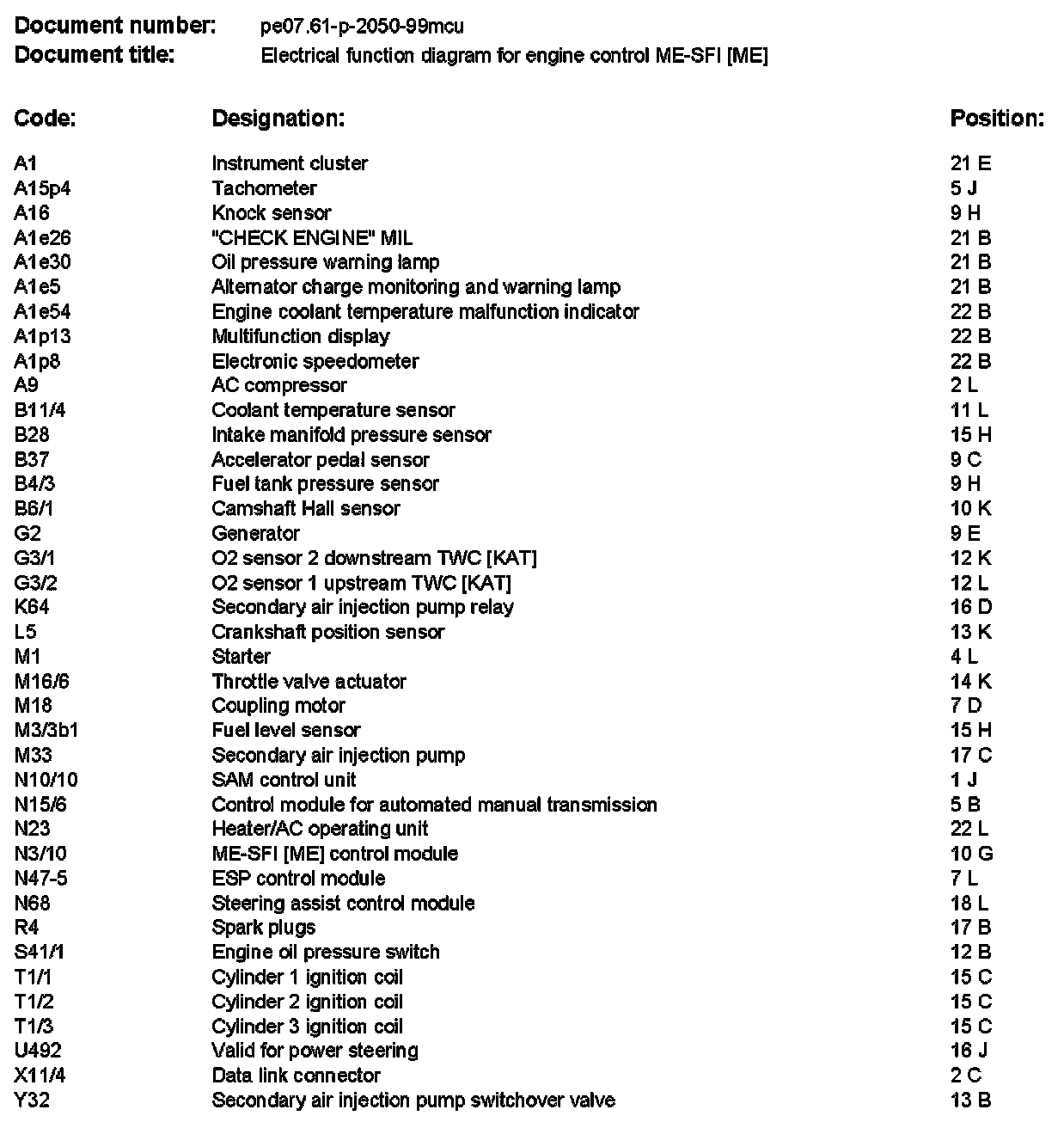

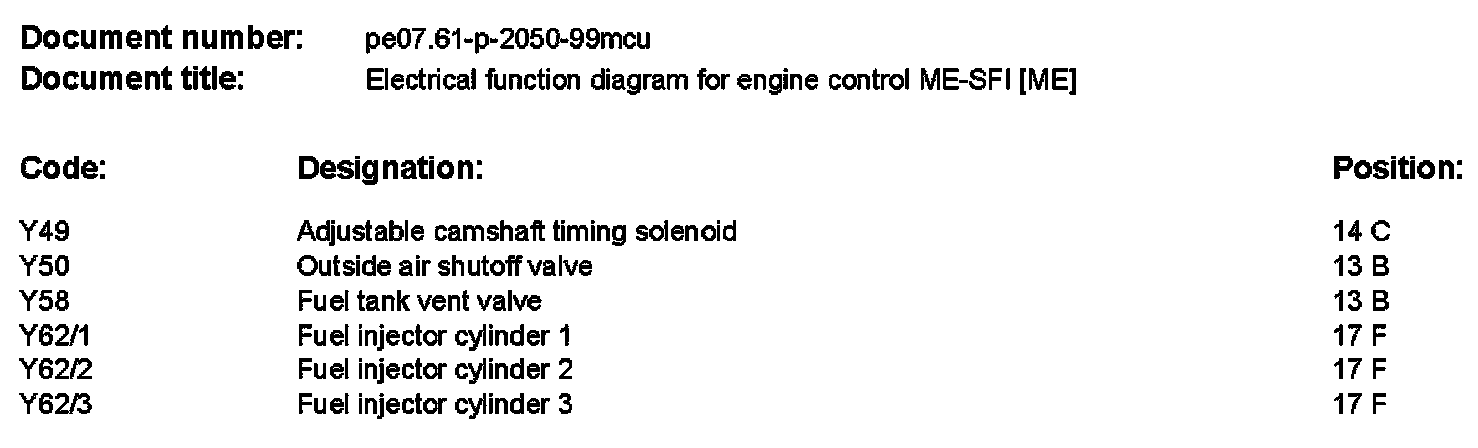

PE07.61-P-2050-60MCU Legend Of Electrical Function Schematic For Engine Control ME-SFI [ME]
