AR54.30-P-6080MCC Remove/install additional instruments

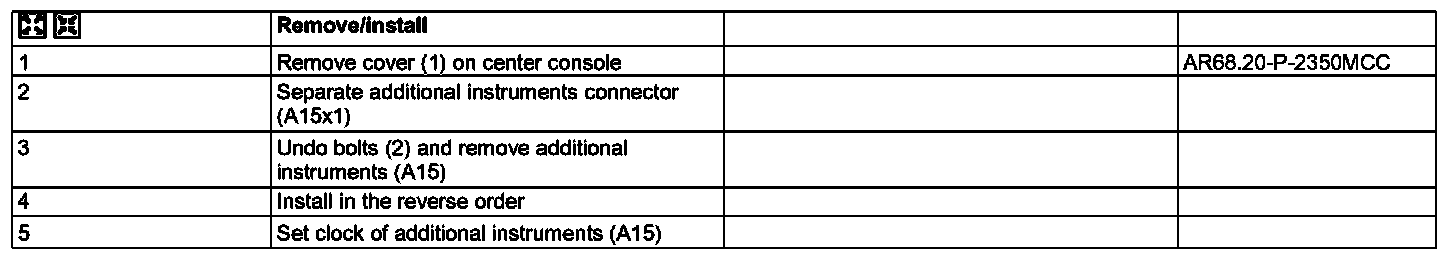

AR54.30-P-6080MCC Remove/Install Additional Instruments
- up to 30.8.10
- with CODE (V31) Cockpit clock and tachometer package

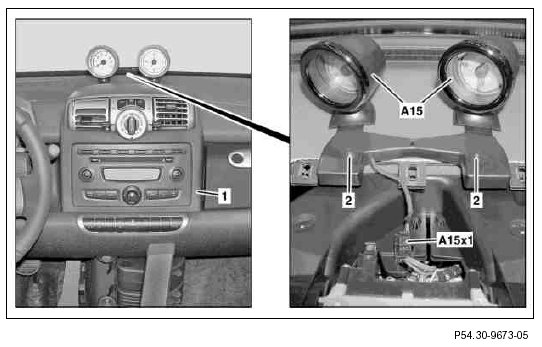

1 Cover
2 Screw
A15 Additional instruments
A15x1 Additional instruments connector
