AR83.55-P-5300-04MCU Detach/Attach Refrigerant Compressor

AR83.55-P-5300-04MCU Detach/Attach Refrigerant Compressor

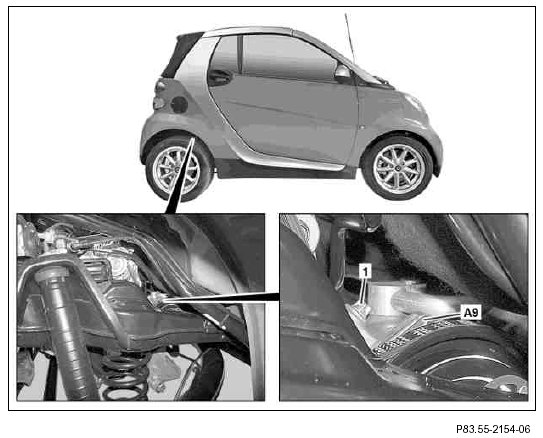

1. Loosen bolt (1) of refrigerant compressor (A9) at cylinder crankcase above the right wheel well by half a thread.
Attachment: Use suitable Torx wrench insert to tighten to the specified tightening torque.







2. Lift vehicle with lifting platform.

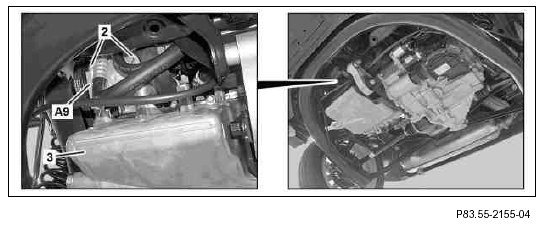

3. Loosen bolts (2) of refrigerant compressor (A9) at the oil pan (3).
The bolts (2) remain on the refrigerant compressor (A9).

4. Install in the reverse order.
