Procedures

AR01.30-P-5800-01MCC Tightening Procedure For Cylinder Head Bolts

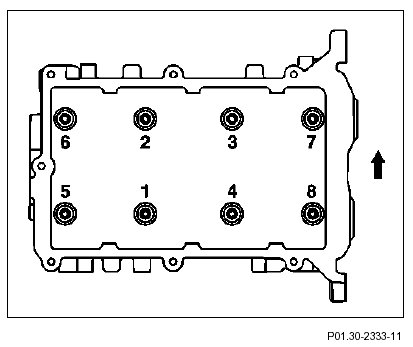

1. Tighten cylinder head bolt (1 to 8) in stages in sequence of the tightening procedure.
Direction of travel see arrow.
