AR01.40-P-9202MCC Measure Cylinder Bores

AR01.40-P-9202MCC Measure Cylinder Bores

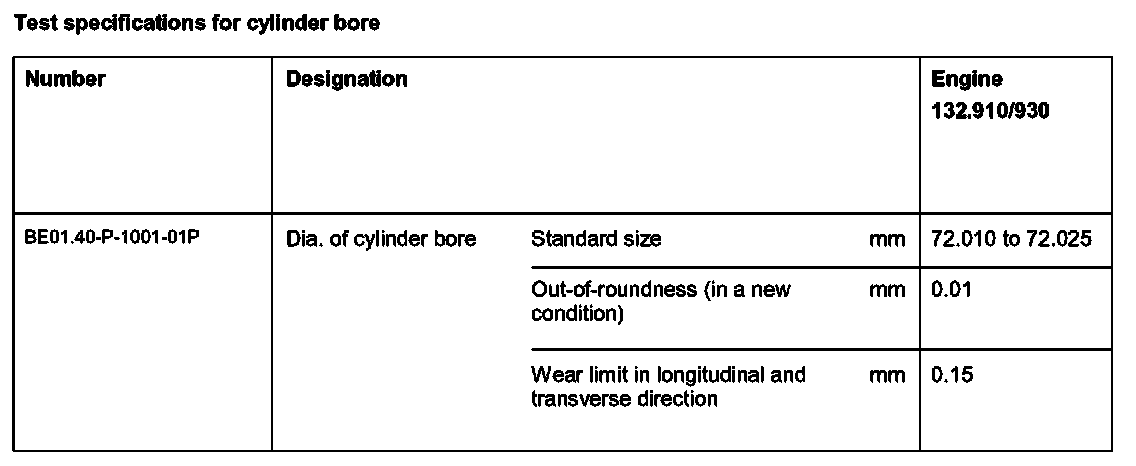

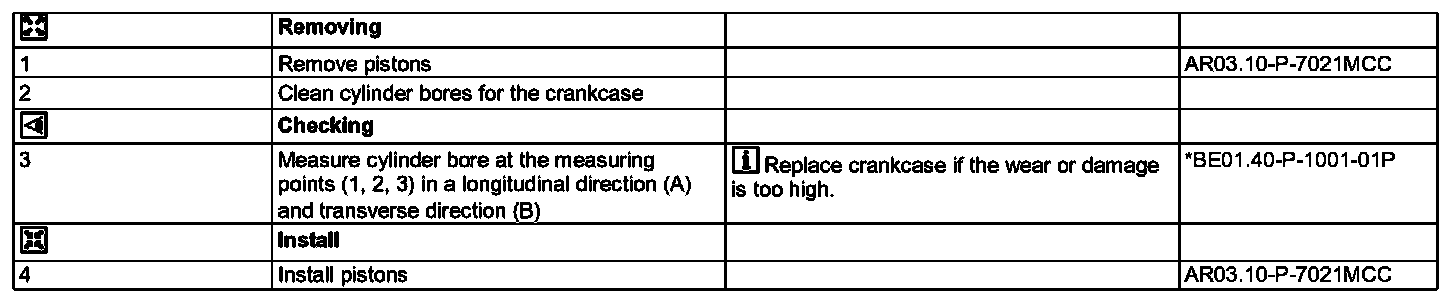

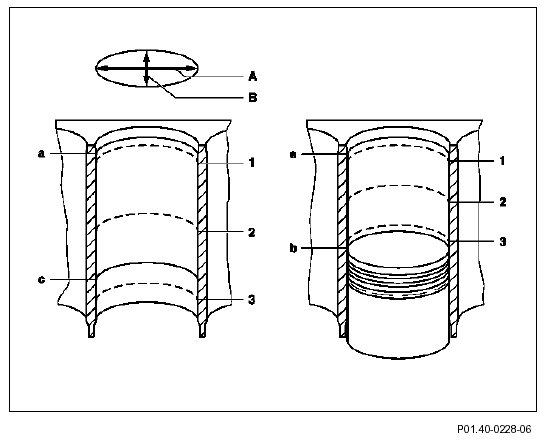

1 Measuring point
2 Measuring point
3 Measuring point
A Longitudinal direction
B Transverse direction
a Upper reversal point of 1st piston ring
b Bottom dead center of piston
c Lower reversal point from oil scraper ring
