Home >> Smart >> 2011 >> ForTwo Coupe (451.331) L3-1.0L (132.910) >> Repair and Diagnosis >> Diagrams >> Grounds

Grounds

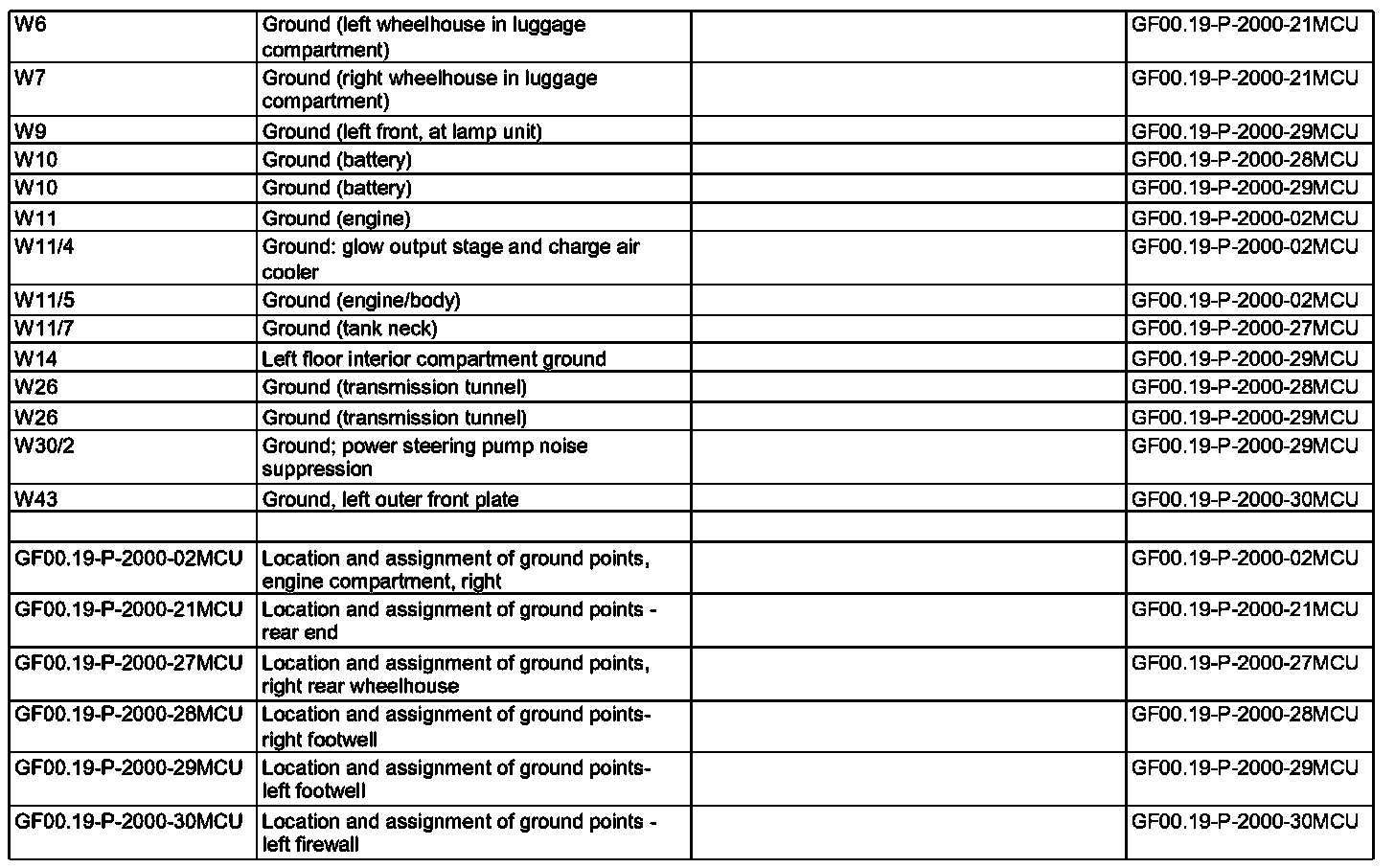

GF00.19-P-2000MCU Location And Assignment Of Ground Points
