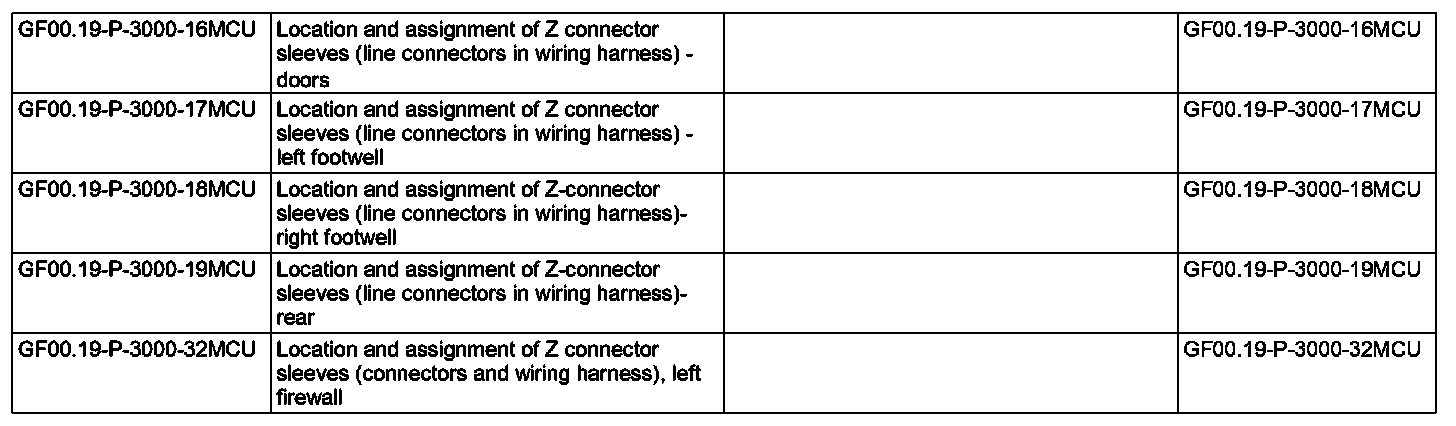

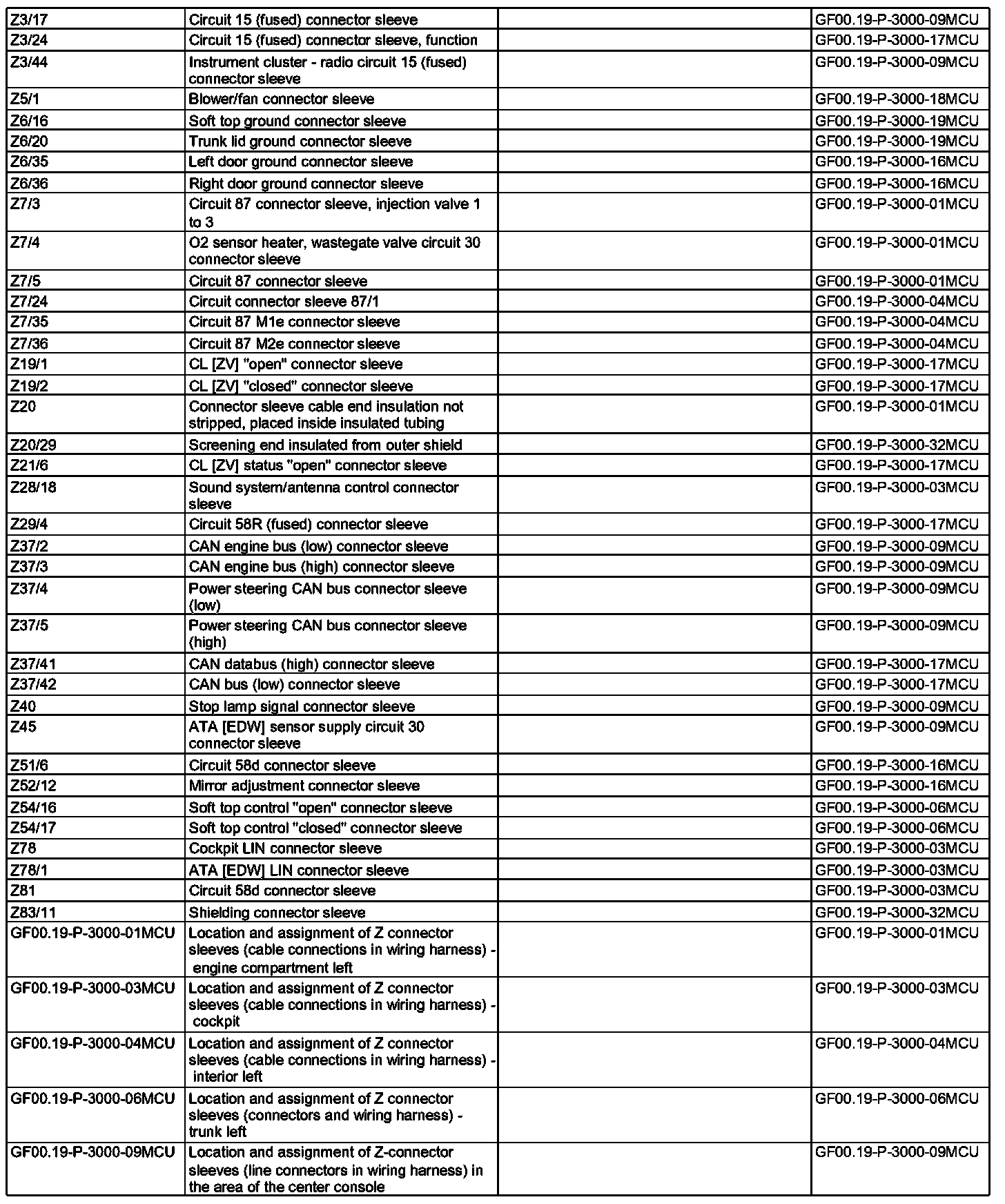

GF00.19-P-3000MCU Location and Assignment of Z Connector Sleeves (Wiring and Plug Connectors In Wiring Harness)




GF00.19-P-3000MCU Location And Assignment Of Z Connector Sleeves (Wiring And Plug Connectors In Wiring Harness)
