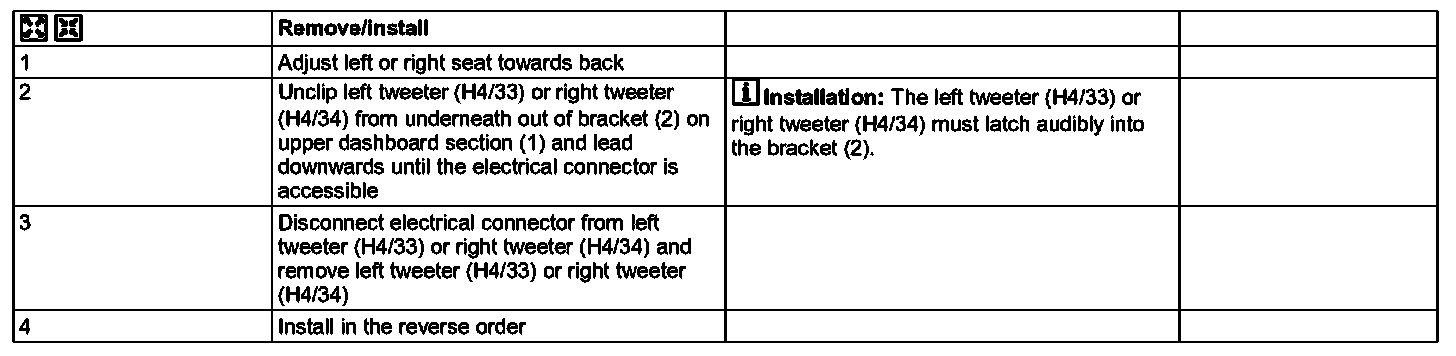

AR82.62-P-1000MCC Remove/Install Tweeter

AR82.62-P-1000MCC Remove/Install Tweeter
- up to 30.8.10 with CODE (C17) Sound package (2 tweeters, 2 bass reflex boxes and diplexer) (FFO)
- with CODE (C54) Sound system 2

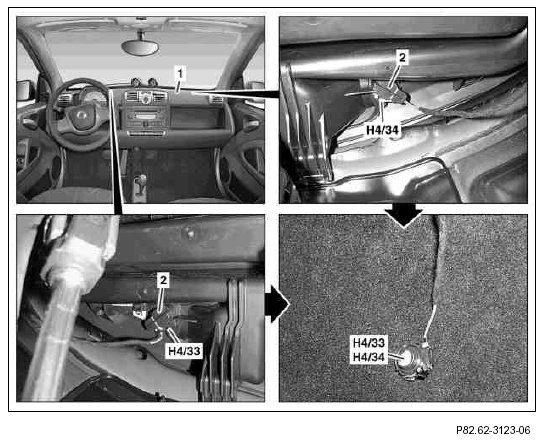

1 Dashboard top section
2 Bracket
H4/33 Left tweeter
H4/34 Right tweeter
