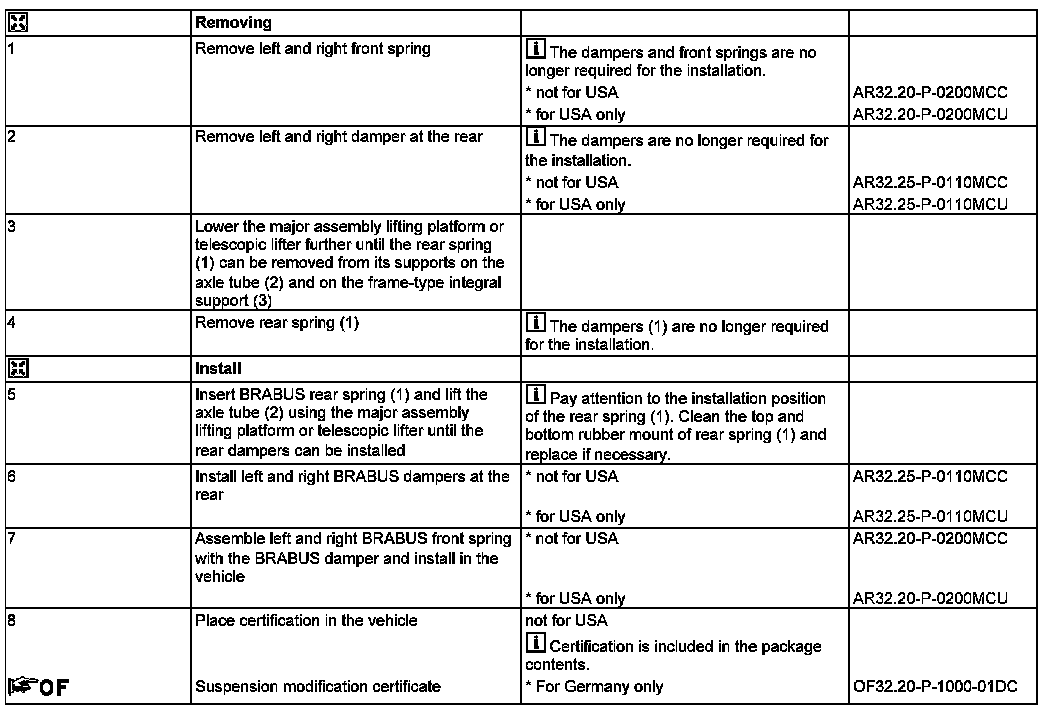

AN32.20-P-0002MCC Install Brabus Sport Suspension

AN32.20-P-0002MCC Install Brabus Sport Suspension

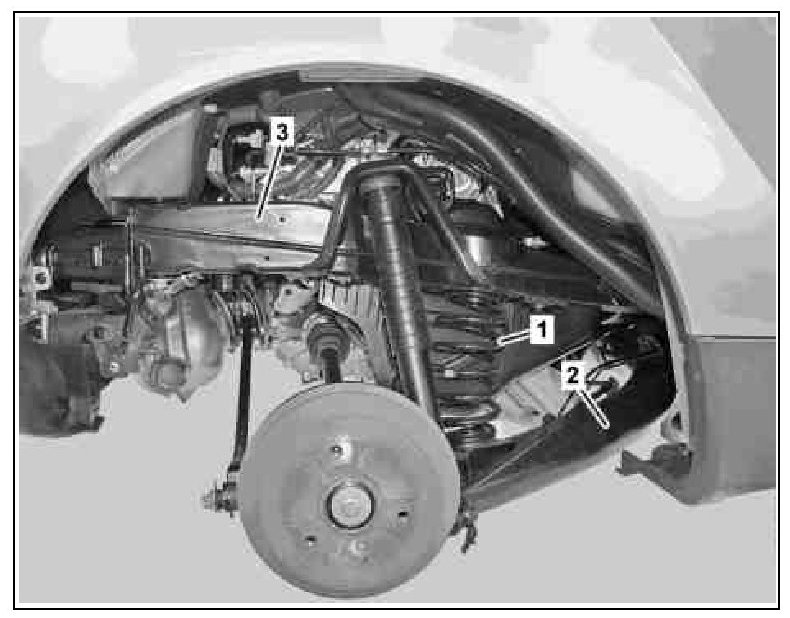

1 Rear spring
2 Axle tube
3 Frame-type integral support
