Power Steering Motor: Description and Operation

GF46.35-P-6600MCC Electric Steering Actuator Motor, Component Description

With CODE (V26) Power steering, EPS (FFO)

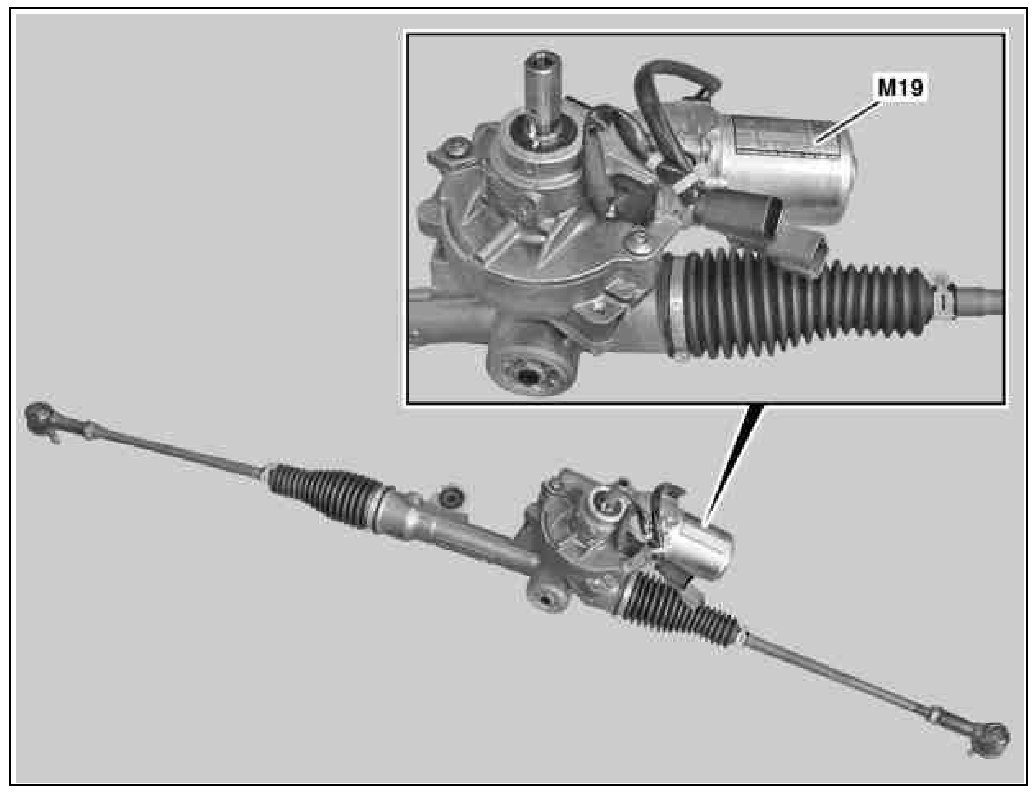

M19 Power steering motor

Location
The power steering motor is located on the steering gear.

Task
The power steering motor assists the steering torque applied by the driver via a worm gear. In the process the direction of rotation of the motor depends on the direction of rotation of the steering gear. If no torque is detected at the drag link and the steering wheel is not in the center position, the power steering motor assists the resetting of the steering wheel into the center position.

The power steering motor is actuated via the steering assist control unit (N68).
