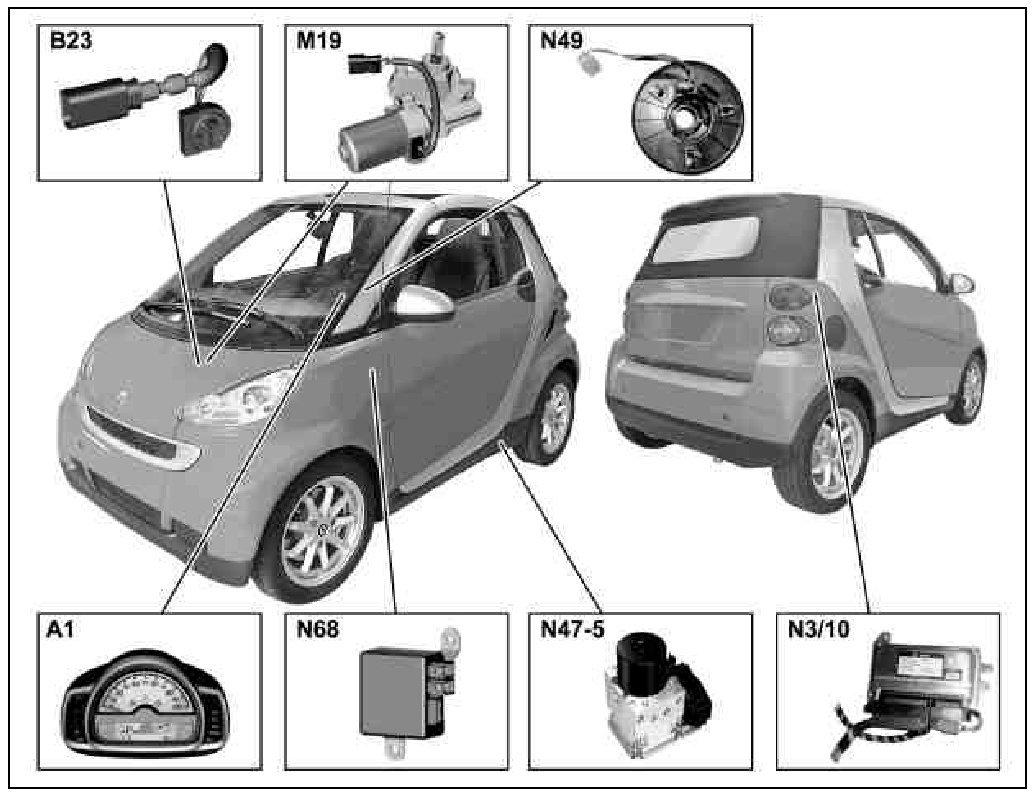

GF46.35-P-0002-01MCU Electric Steering, Location Of Components

GF46.35-P-0002-01MCU Electric Steering, Location Of Components

With CODE (V26) Power Steering, EPS (FFO)






A1 Instrument cluster
B23 Power steering torque sensor
M19 Power steering motor
N3/10 ME-SFI [ME] control unit
N47-5 ESP control unit
N49 Steering angle sensor
N68 Steering assist control unit
