AN82.10-P-0100-01MCD Retrofit Daytime Running Lights Headlamp Wiring Harness

AN82.10-P-0100-01MCD Retrofit Daytime Running Lights Headlamp Wiring Harness
- with CODE (460) Canada version
- except CODE (V07) Front fog lamps (FFC)

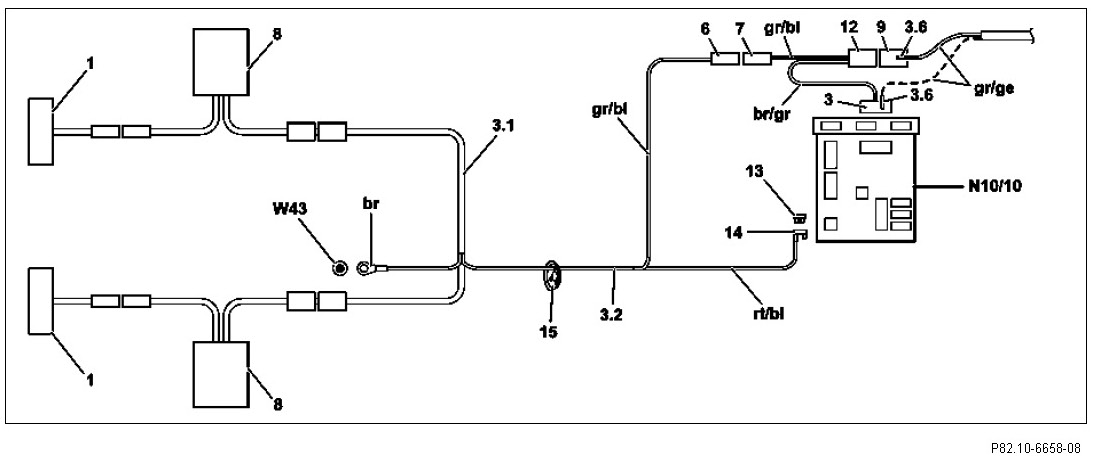

Connection diagram
1 Daytime running lights headlamp
3 Coupling "N11-3"
3.1 Front wiring harness
3.2 Interior compartment wiring harness
3.6 Plug contact
6 Clutch
7 Connector
8 Daytime running lamp control unit
9 Clutch
12 Adapter line
13 Fuse
14 Fuse holder
15 Firewall rubber grommet

N10/10 SAM control unit
W43 Ground (outside left fire wall)

br Brown line
br/gr Brown/gray line
gr/bl Gray/blue line
gr/ge Gray/yellow line
rt/bl Red/blue line

The dashed gray/yellow line (gr/ge) shows the original installation of lines in the vehicle and the continuous lines are the retrofit.

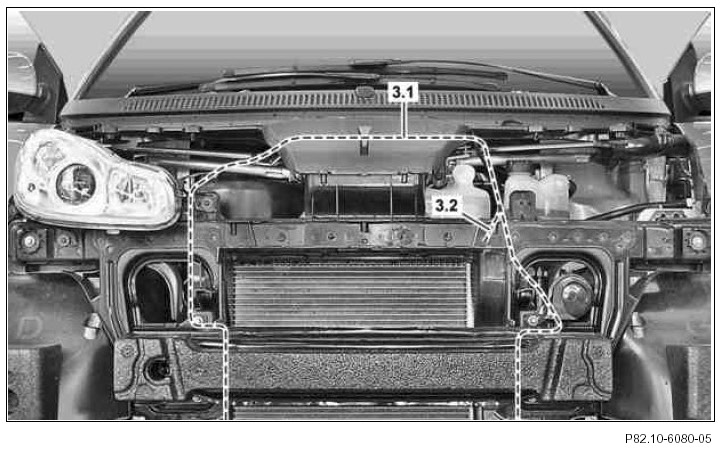

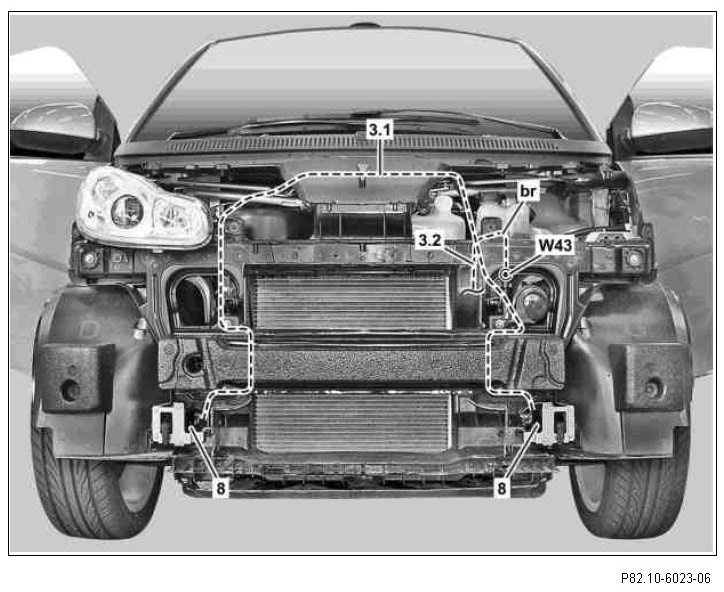

Routing diagram for front wiring harness (3.1)
3.1 Front wiring harness
3.2 Interior compartment wiring harness
8 Daytime running lamp control unit

W43 Ground (outside left fire wall)

br Brown line

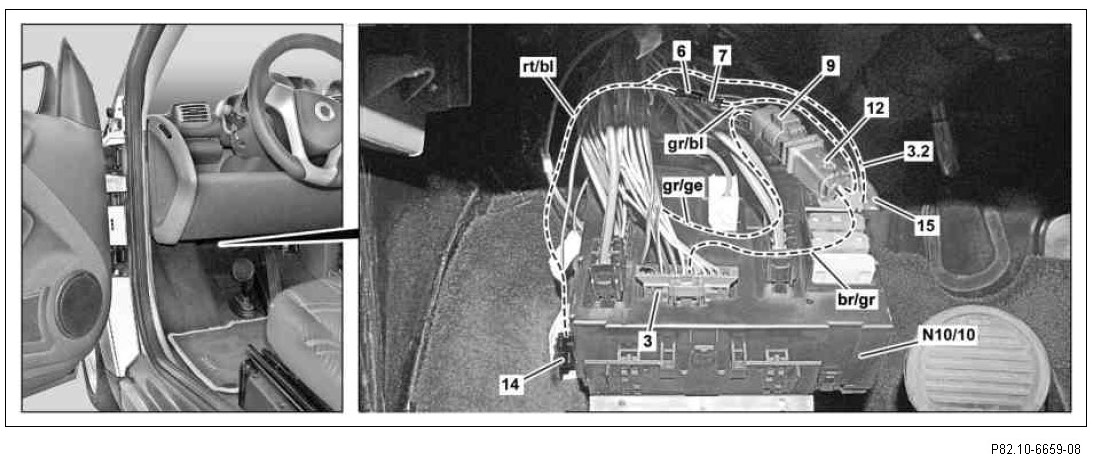

Routing diagram for interior wiring harness (3.2)
3 Coupling "N11-3"
3.2 Interior compartment wiring harness
6 Clutch
7 Connector
9 Clutch
12 Adapter line
14 Fuse holder
15 Firewall rubber grommet

N10/10 SAM control unit

br/gr Brown/gray line
gr/bl Gray/blue line
gr/ge Gray/yellow line
rt/bl Red/blue line







1 Route front wiring harness (3.1), as shown, to vehicle-side wiring harness and temporarily fasten with cable ties.
Use puller aid in the area of the wiper system.

2 Lay interior wiring harness (3.2) in area of windshield washer reservoir until it is routed further.

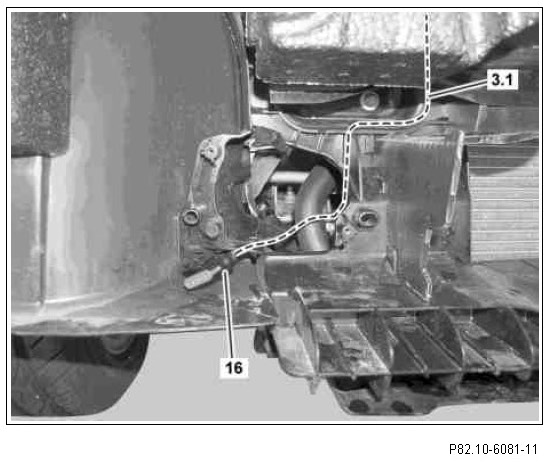

3 Route front wiring harness (3.1), as shown, at vehicle wiring harness and guide coupling (16) through opening in front module.

4 Provisionally fasten front wiring harness (3.1) using cable ties to vehicle's wiring harness.

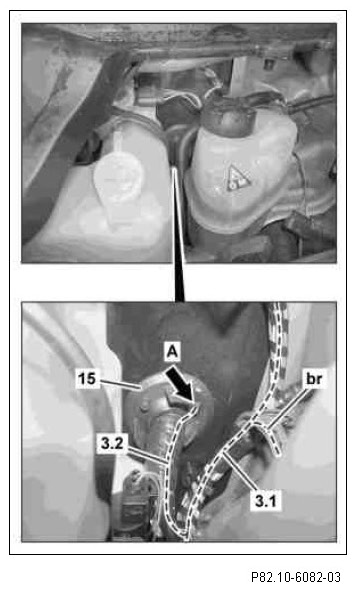

5 Cut open cable duct (arrow A) of firewall rubber grommet (15).

6 Enlarge cable duct (arrow A) using expanding pliers and guide interior wiring harness (3.2) through opening into interior.

7 Route interior wiring harness (3.2) and front wiring harness (3.1), as shown, at vehicle side wiring harness and temporarily fasten using cable ties.

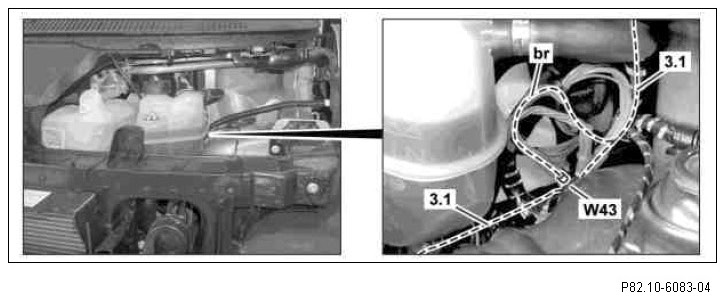

8 Connect brown line (br) at outer left firewall ground (W43).

9 Route brown line (br) and front wiring harness (3.1) to vehicle-side wiring harness and temporarily fasten with cable ties.

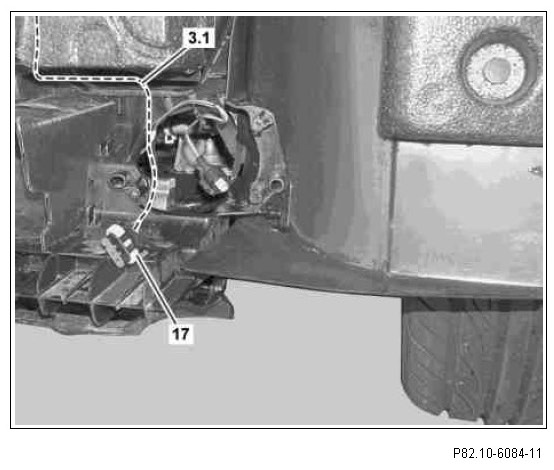

10 Route front wiring harness (3.1), as shown, at vehicle wiring harness and guide coupling (17) through opening in front module.

11 Provisionally fasten front wiring harness (3.1) using cable ties to vehicle's wiring harness.

12 Check routing of front wiring harness (3.1) and tighten all cable ties used, then shorten excess length of cable ties.







Operation steps 13 to 18 only on vehicles without retrofitted ambiance illumination.

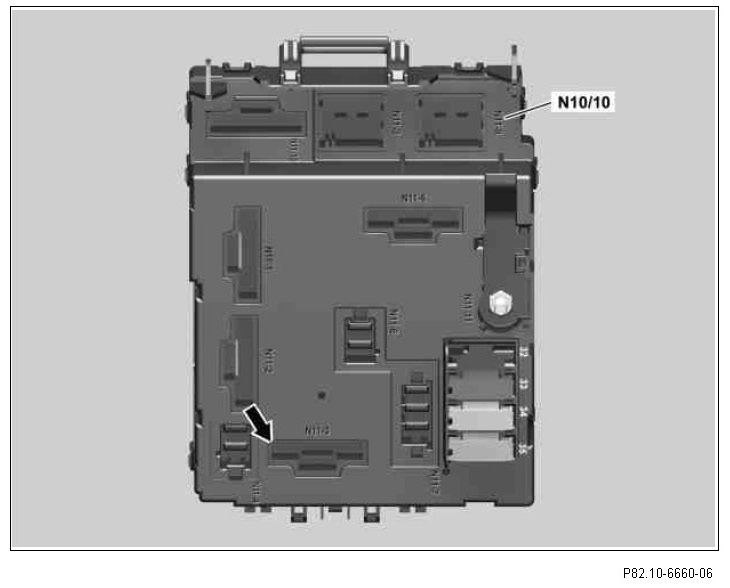

13 Release and disconnect coupling "N11-3" at SAM control unit (N10/10). Coupling "N11-3" is located in the marked slot (arrow).

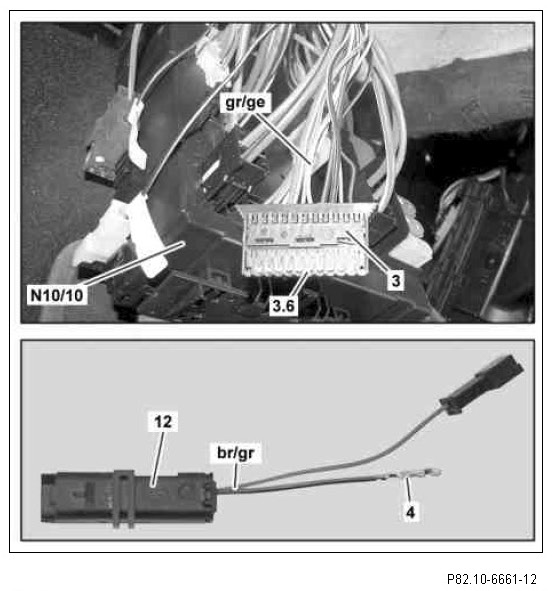

14 Remove plug contact (3.6) of gray/yellow line (gr/ge) from slot "6" of connector "N11-3" (3) with basic wiring harness repair kit.

15 Fit plug contact (4) of brown/gray line (br/gr) of adapter line (12) into slot "6" of coupling "N11-3" (3).

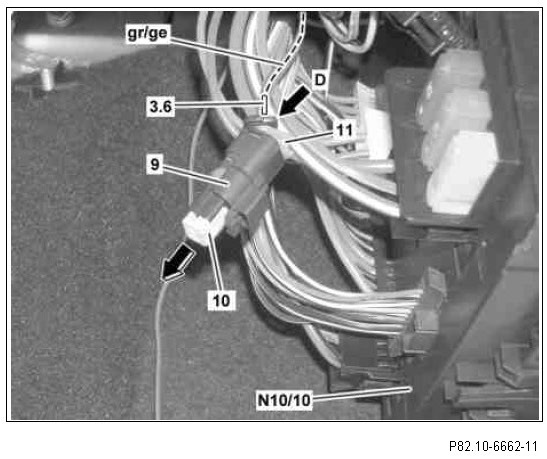

16 Unlatch secondary lock (10) of coupling (9) and carefully pull out of coupling (9) up to end stop.

17 Fit plug contact (3.6) of gray/yellow line (gr/ge) into slot "1" of coupling (9).
Gray/yellow line (gr/ge) can be guided through closed cap (arrow D) and through seal (11).

18 Slide secondary lock (10) into coupling (9) until it engages.

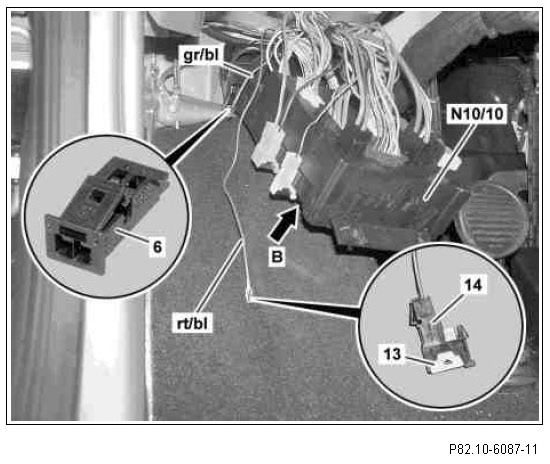

19 Plug gray/blue line (gr/bl) of interior wiring harness into slot "1" of coupling (6).
On vehicles with retrofitted ambiance illumination, the gray/blue line (gr/bl) must be crimped with gray/blue line (gr/ bl) of adapter line already installed.

20 Plug red/blue line (rt/bl) of interior wiring harness into fuse holder (14).

21 Insert fuse (13) into fuse holder (14).

22 Insert fuse holder (14) in one of the suitably coded slots "R1" to "R4" (arrow B) at SAM control unit (N10/10).

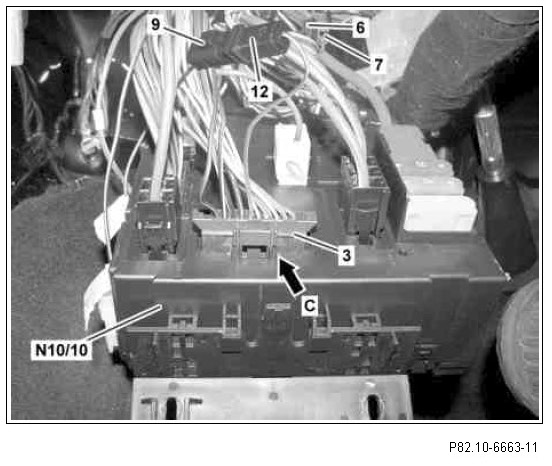

23 Connect coupling (9) with connector of adapter line (12).

24 Connect coupling (6) with connector (7) of adapter line (12).

25 Connect coupling "N11-3" (3), as shown, to slot (arrow C) of SAM control unit (N10/10).

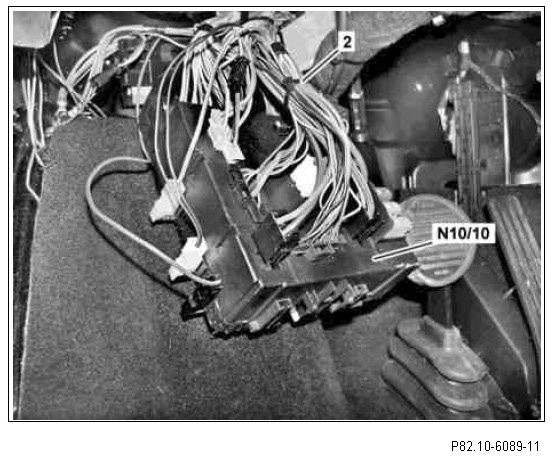

26 Fasten wiring harnesses of SAM control unit (N10/10) using cable tie (2), as shown, and then shorten excess length of cable tie (2).
