AR54.30-P-6080MCC Remove/install additional instruments
AR54.30-P-6080MCC Remove/install additional instruments

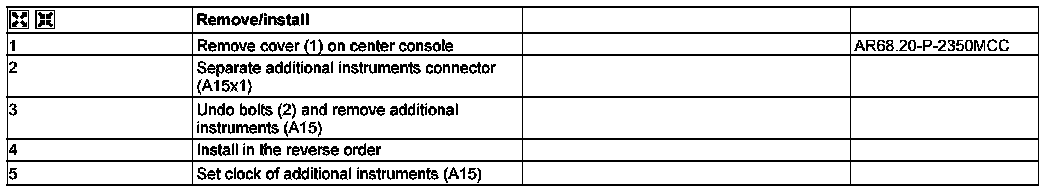

AR54.30-P-6080MCC Remove/Install Additional Instruments

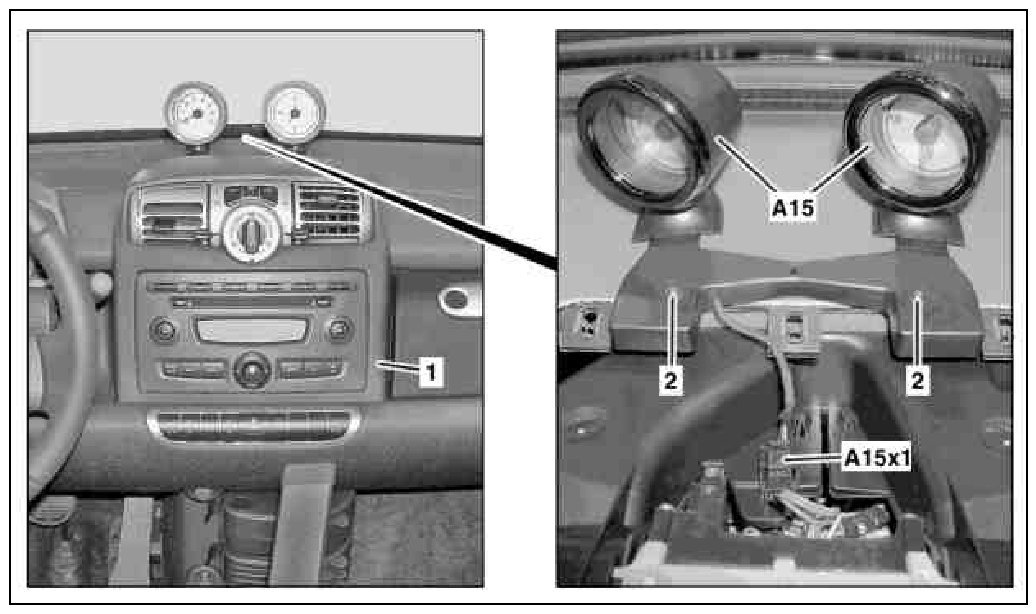

- with CODE (V31) Cockpit clock and tachometer package
1
Cover
2
Bolt
A15
Additional instruments
A15x1
Additional instruments connector
