AZ54.30-P-0001MCC Retrofit additional instruments



AZ54.30-P-0001MCC Retrofit Additional Instruments

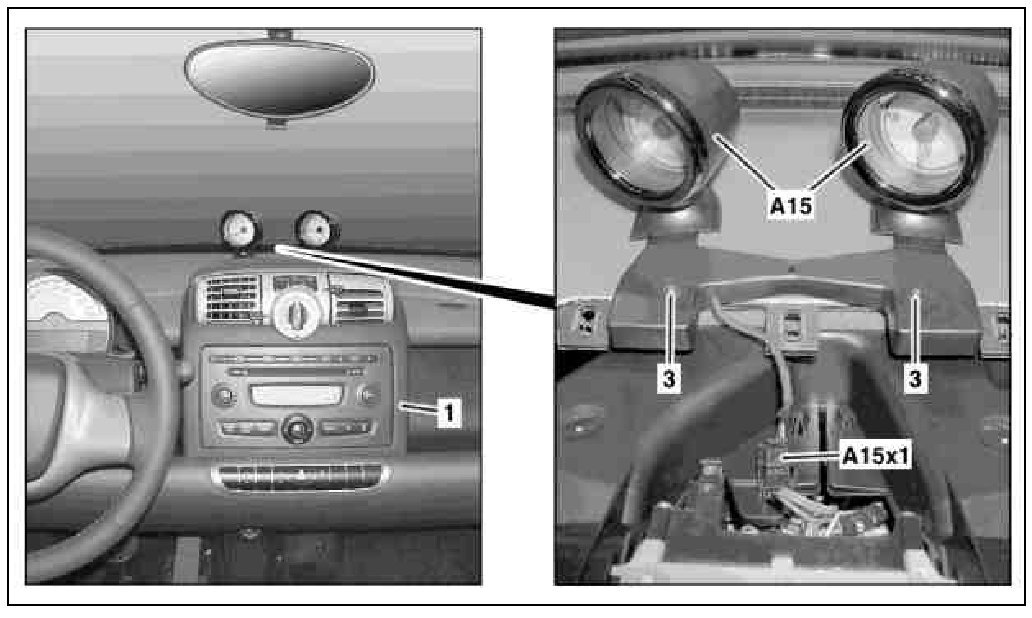

1 Cover
2 Cutout







1 Cover
3 Screw
A15 Additional instruments
A15x1 Additional instruments connector
