AR83.00-P-2000MCD Check Water Drain In Heater/Air Conditioning System, Repair If Necessary

AR83.00-P-2000MCD Check Water Drain In Heater/air Conditioning System, Repair If Necessary
- MODEL 451.3 /4 except CODE (I01) Air conditioning Plus

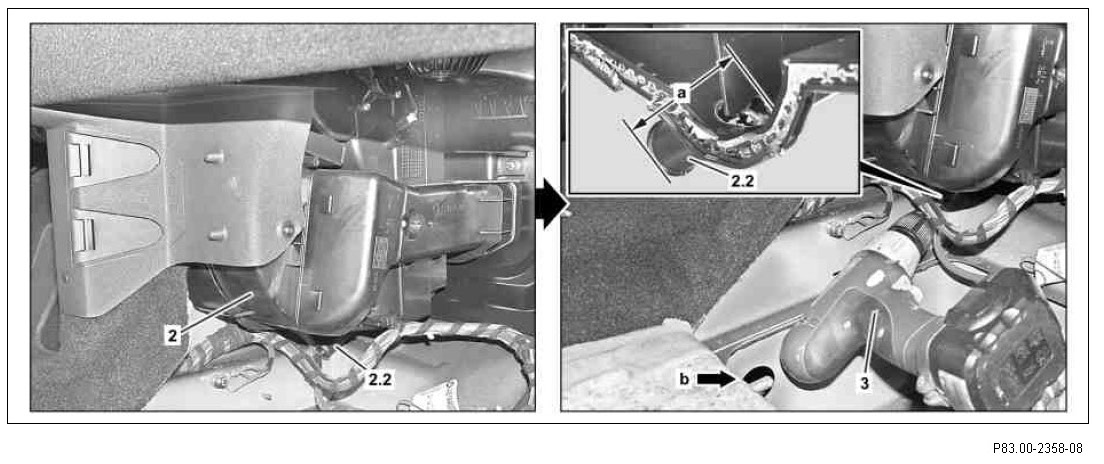

2 Heater housing
2.2 Fitting
3 Rechargeable drill / screwdriver

Dimension:
a 55 mm

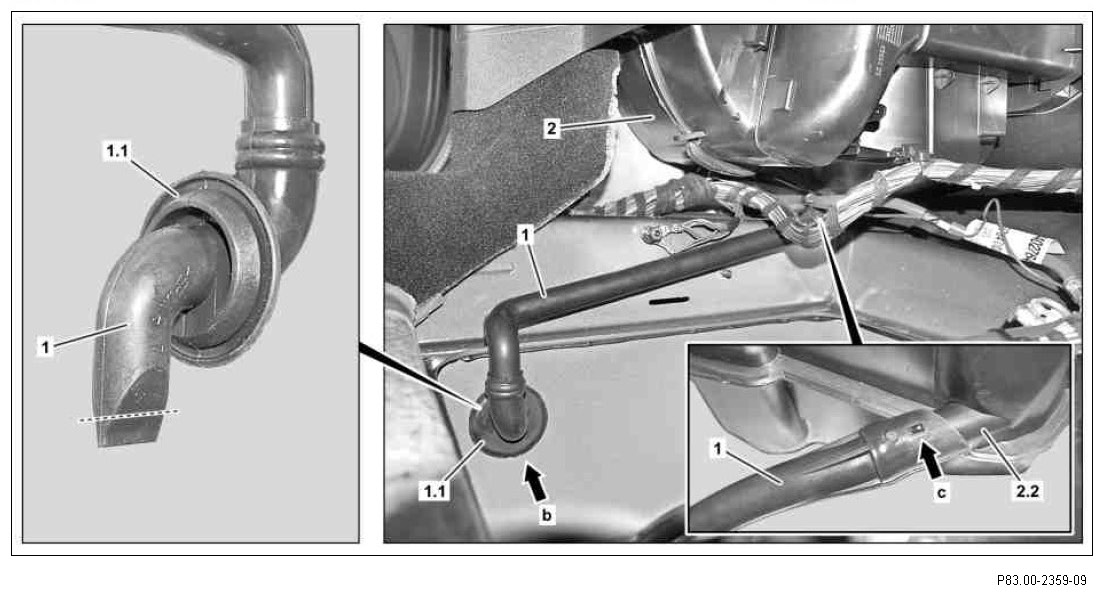

1 Water drain
1.1 Grommet
2 Heater housing
2.2 Fitting
