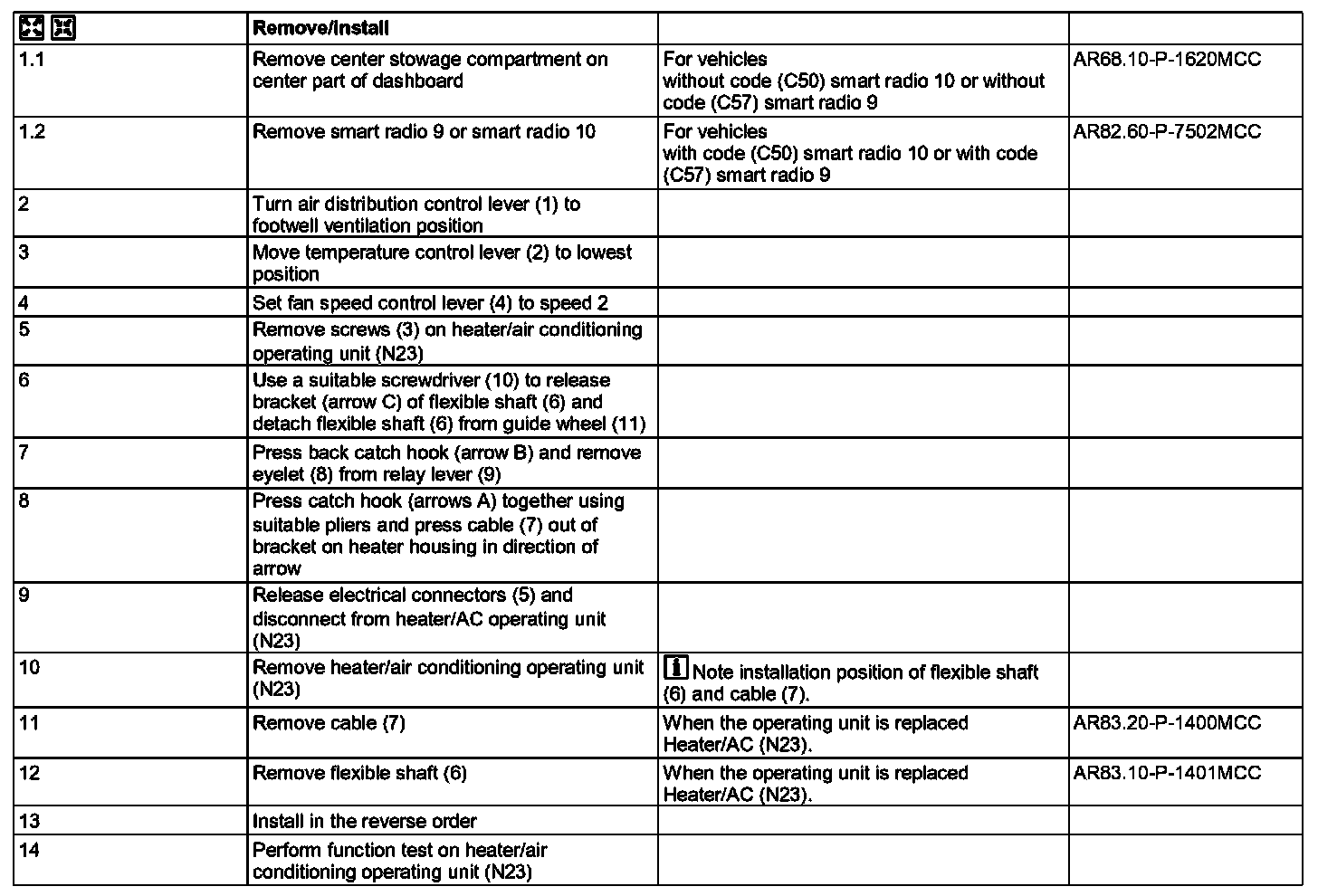

AR83.20-P-1850MCC Remove/Install Heater/Ventilation Operating Unit

AR83.20-P-1850MCC Remove/Install Heater/Ventilation Operating Unit
- MODEL 451.3 /4 up to 30.8.10 except CODE (I01) Air conditioning Plus

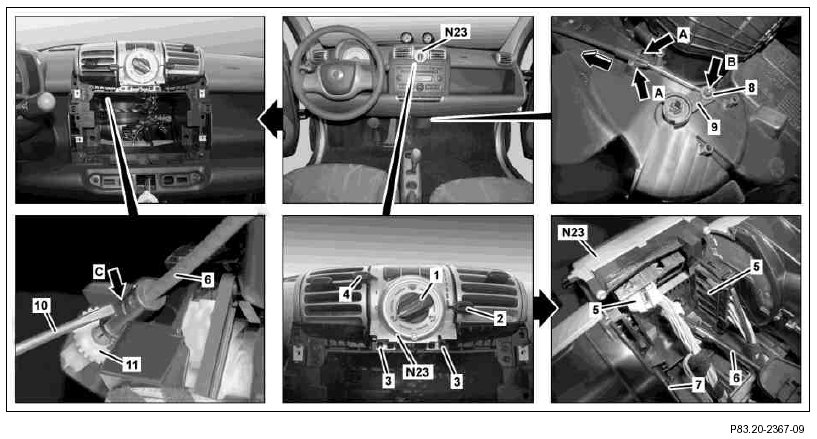

1 Air distribution control lever
2 Temperature control lever
3 Screw
4 Fan speed control lever
5 Electrical connector
6 Flexible shaft
7 Cable
8 Eye
9 Relay lever
10 Screwdriver
11 Guide wheel
N23 Heater/AC operating unit
