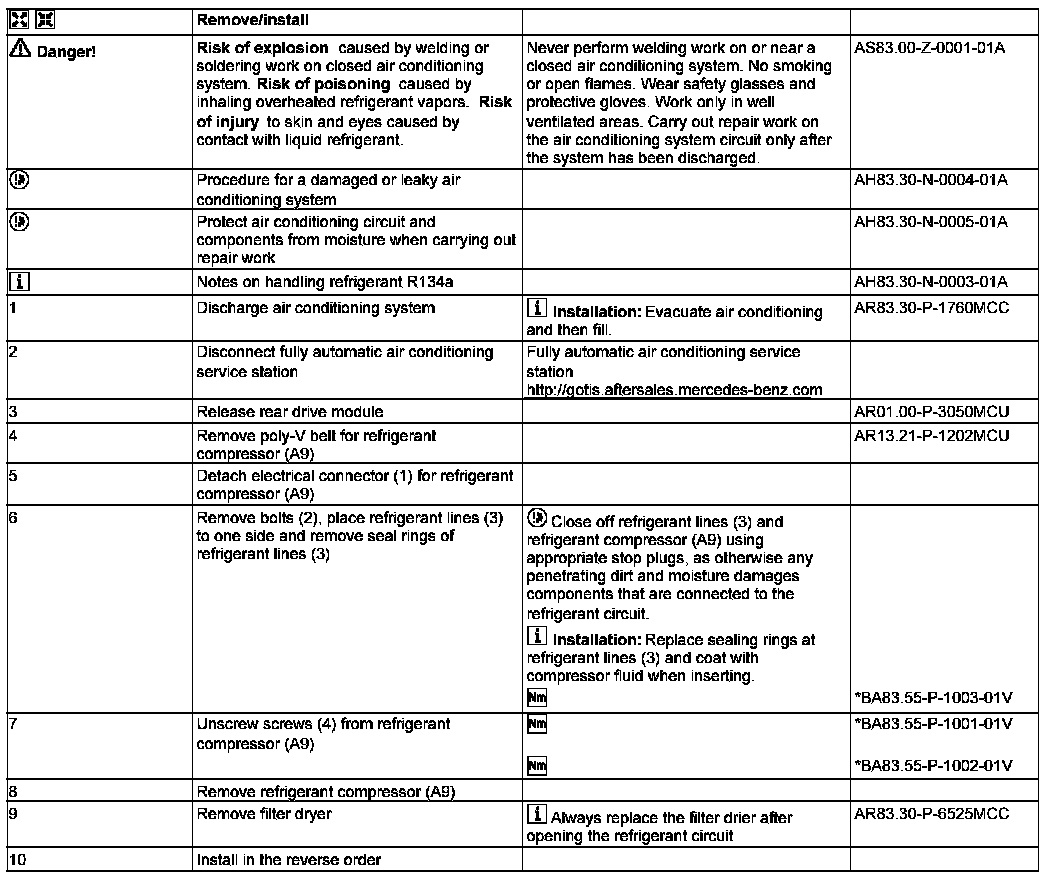

AR83.55-P-5300MCU Remove/Install Refrigerant Compressor



AR83.55-P-5300MCU Remove/Install Refrigerant Compressor
- with CODE (I01) Air conditioning Plus

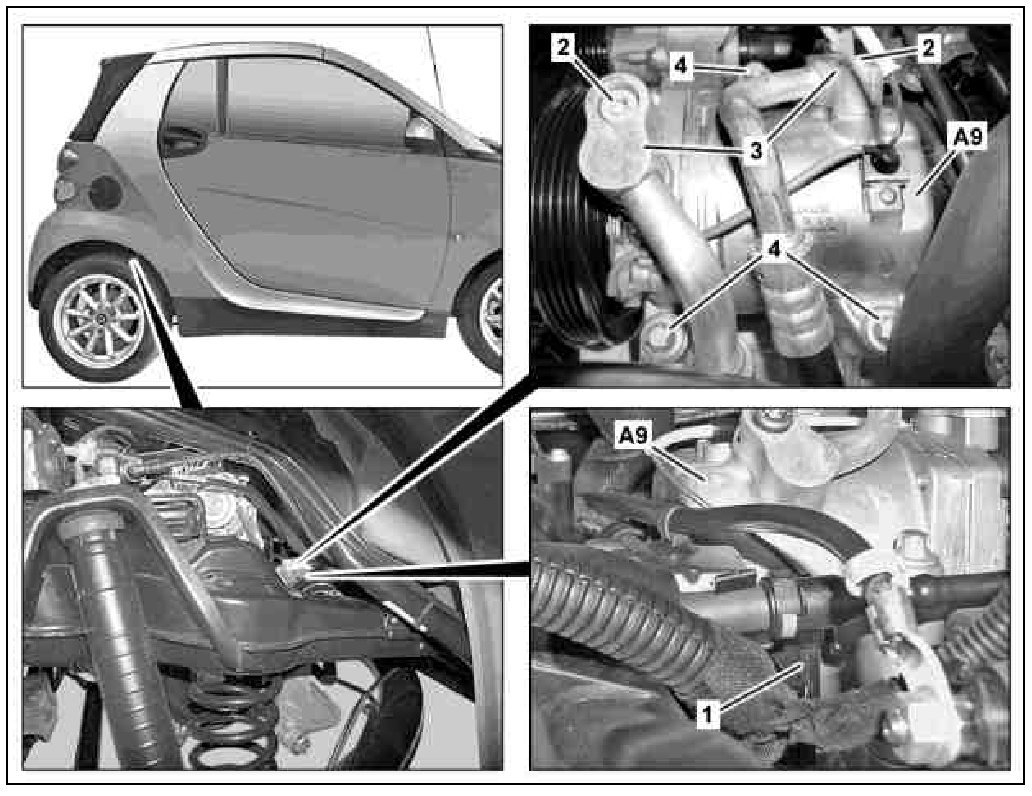

1 Electrical connector
2 Screw
3 Refrigerant line
4 Screw
A9 Refrigerant compressor
