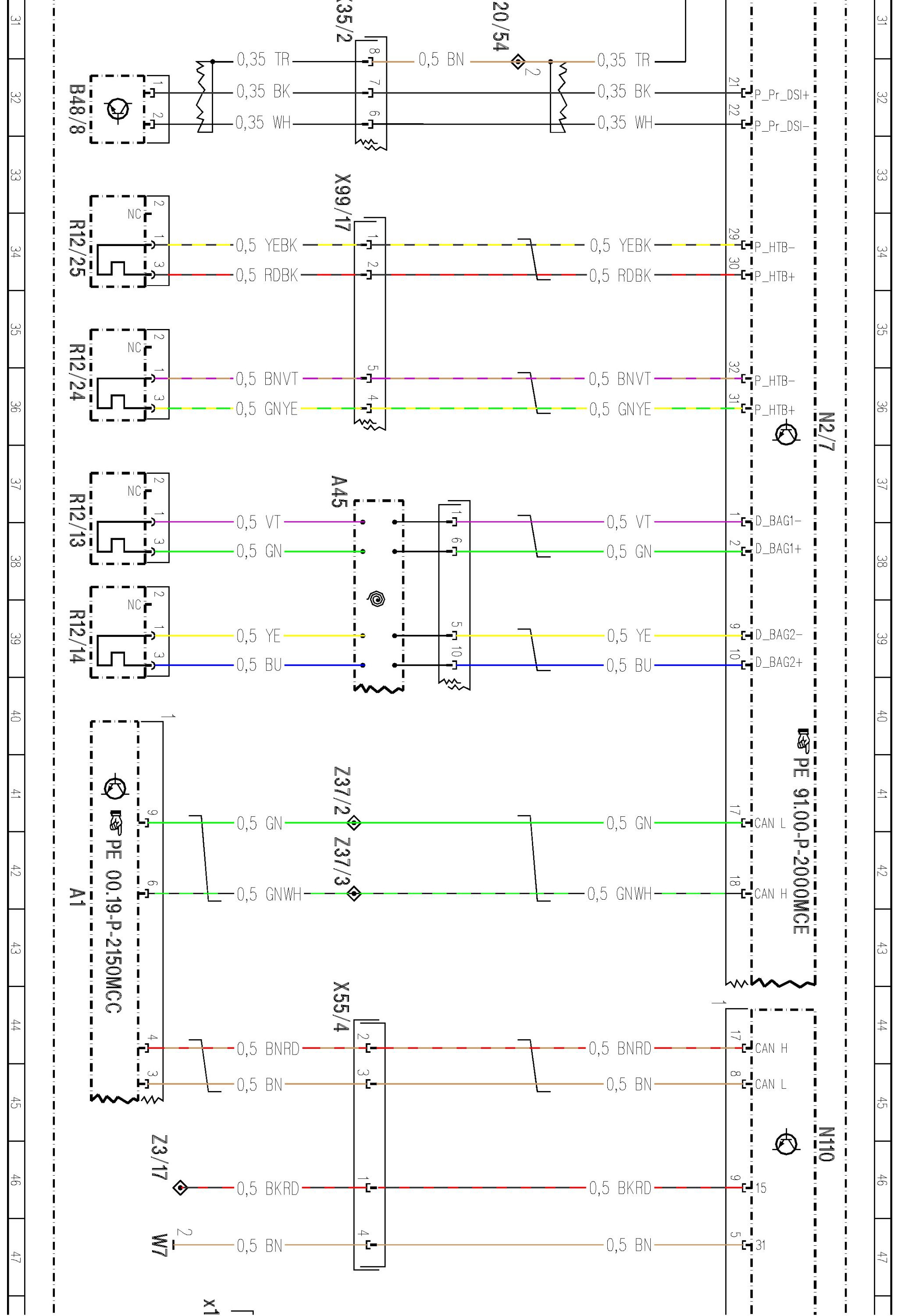

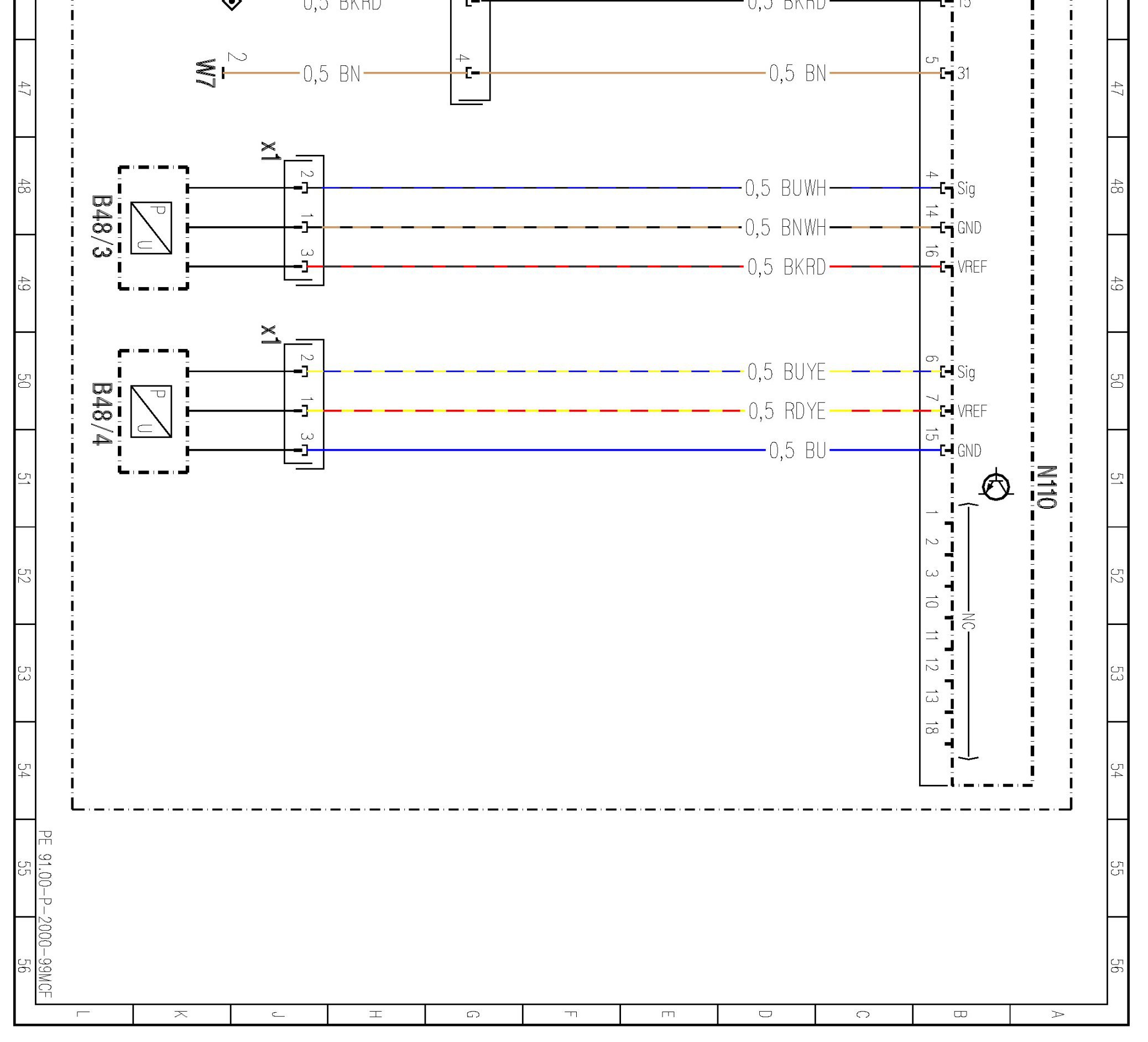

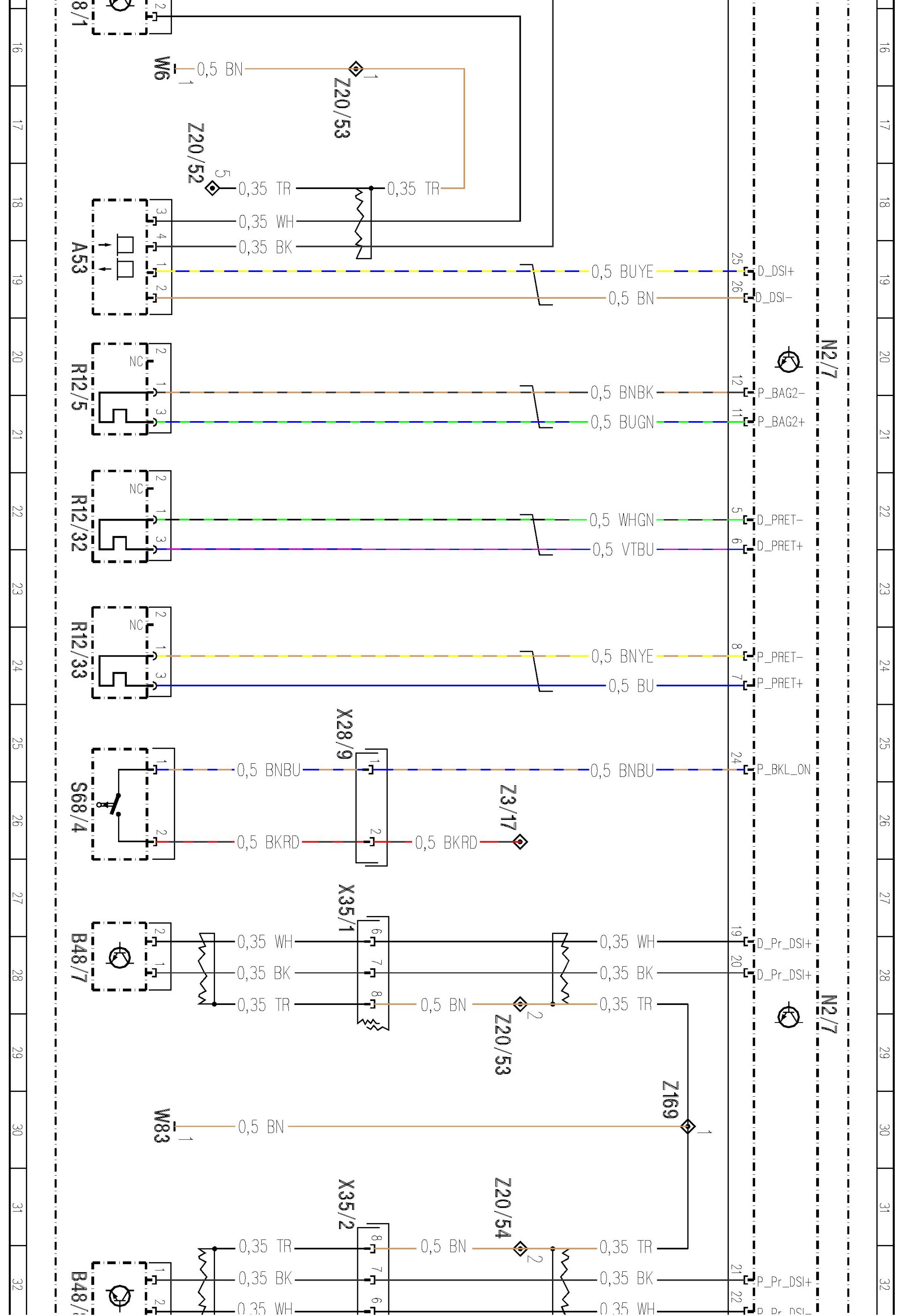

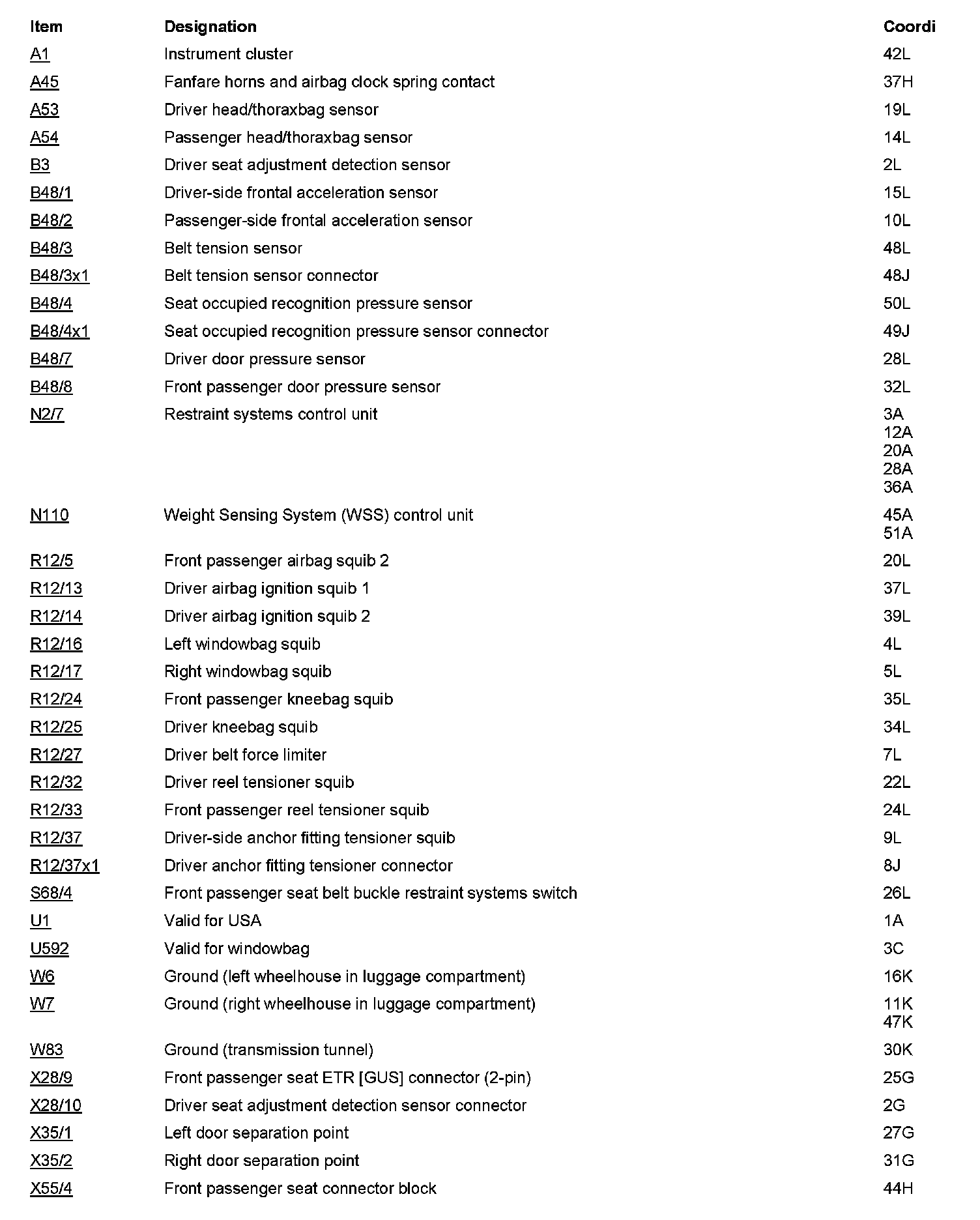

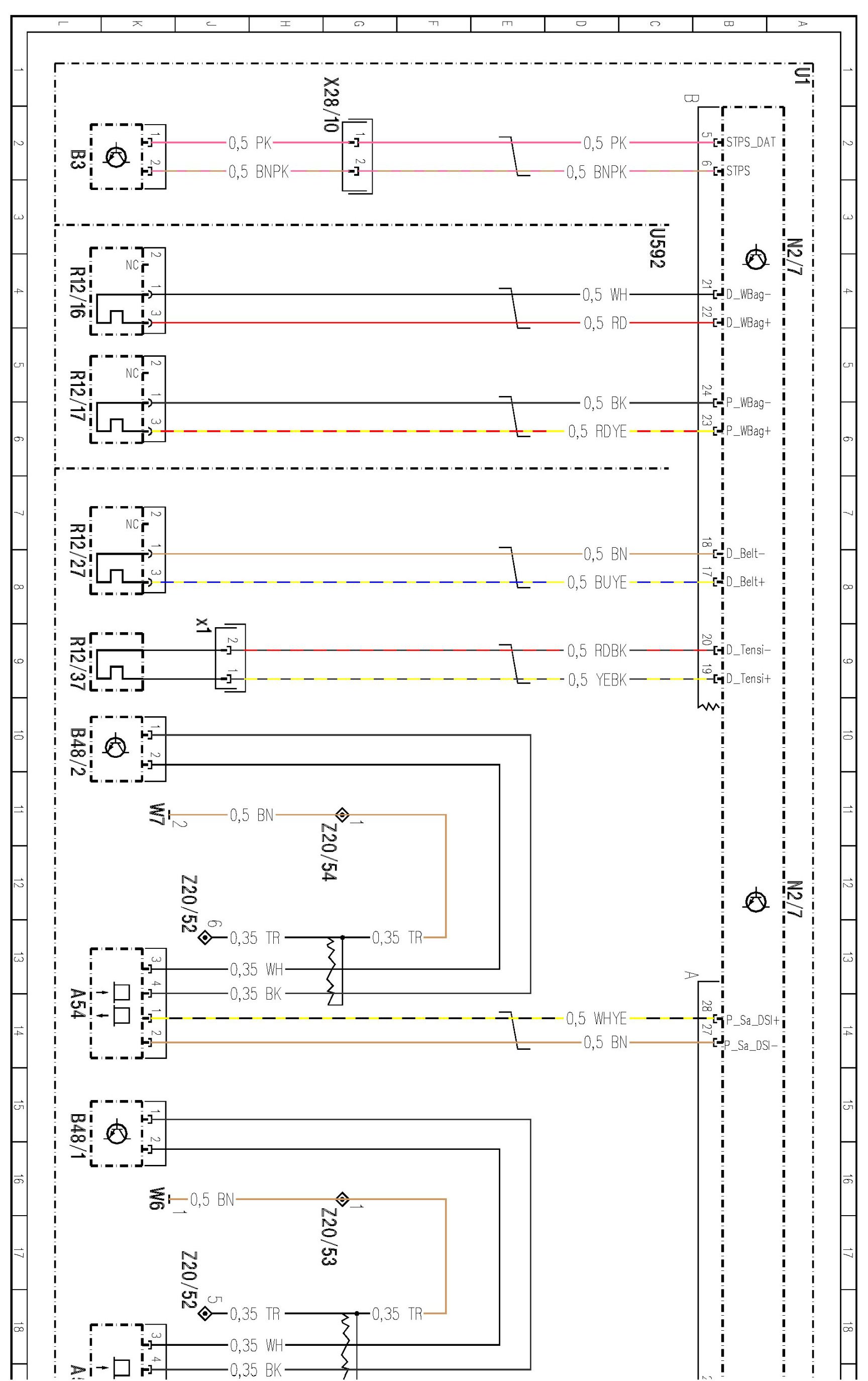

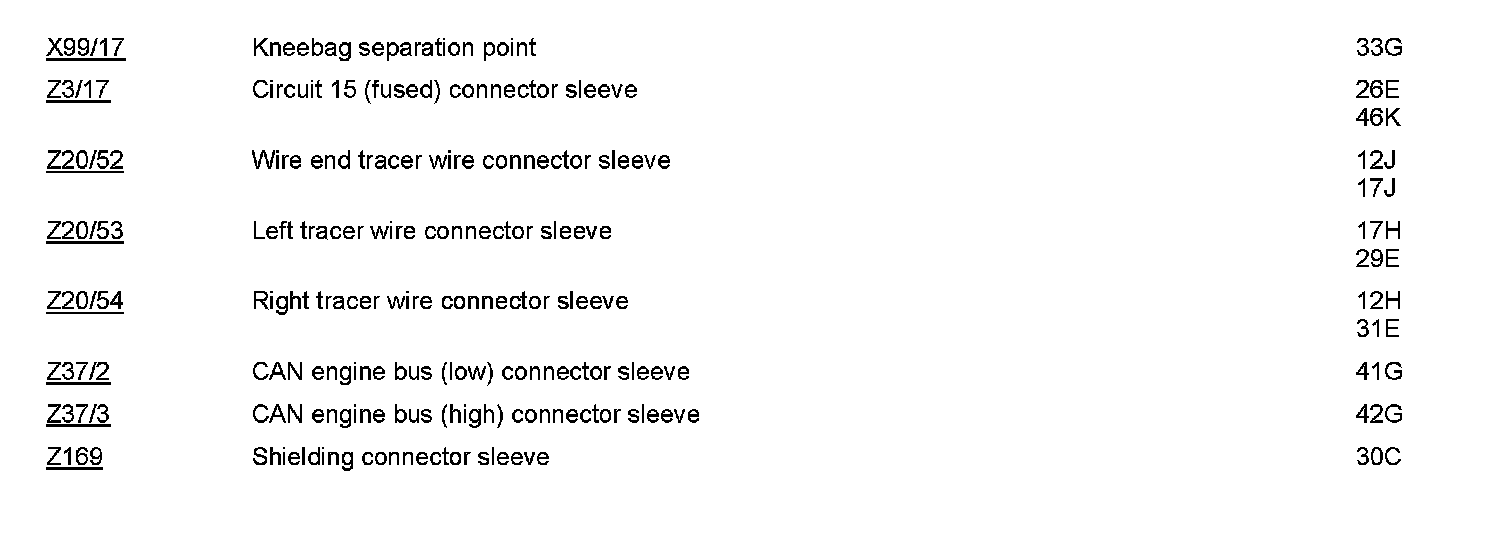

PE91.00-P-2000MCF Airbag (AB), Emergency Tensioning Retractor (ETR)



PE91.00-P-2000MCF Airbag (AB), Emergency Tensioning Retractor (ETR)

451 91 Seats, SRS
MODEL 451 as of 08/31/10 sheet 2
