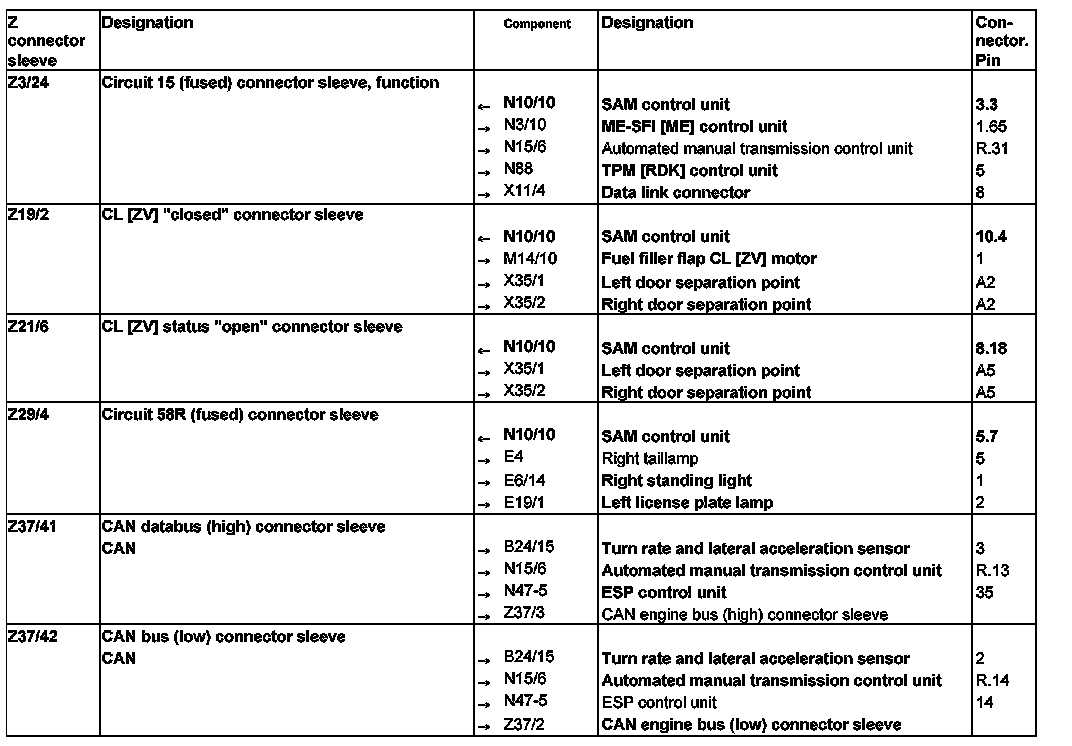

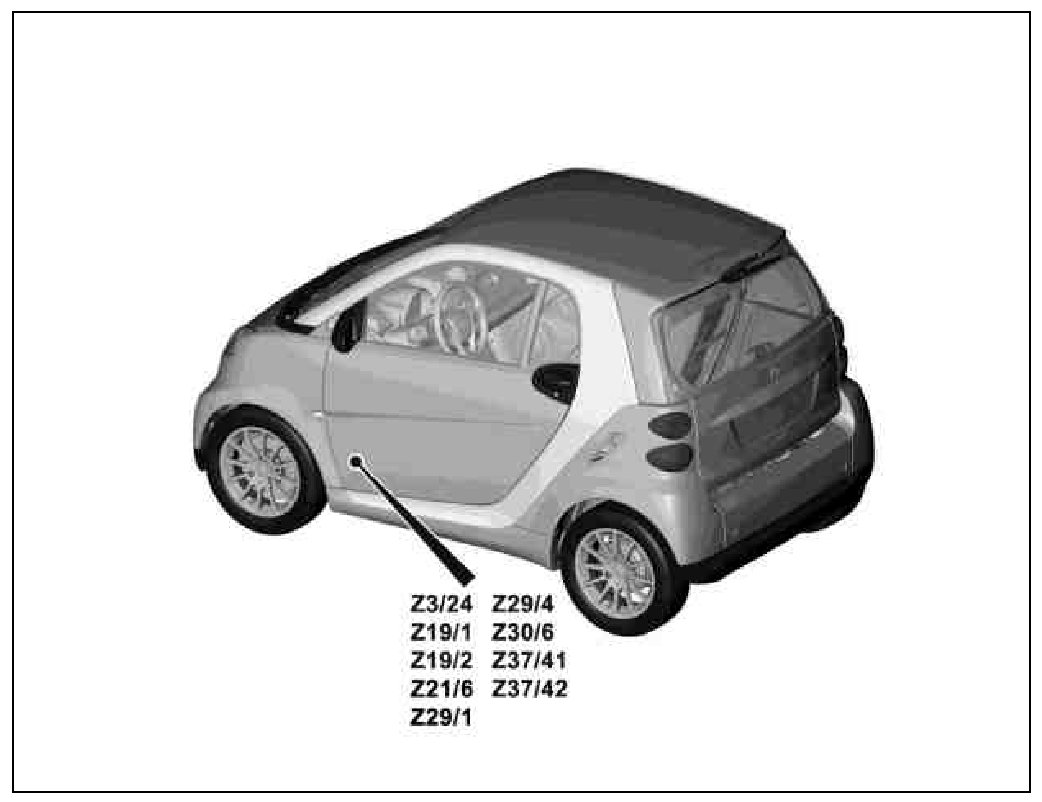

GF00.19-P-3000-17MCU Location and assignment of Z connector sleeves (line connectors in wiring harness) - left footwell



GF00.19-P-3000-17MCU Location And Assignment Of Z Connector Sleeves (Line Connectors In Wiring Harness) - Left Footwell
