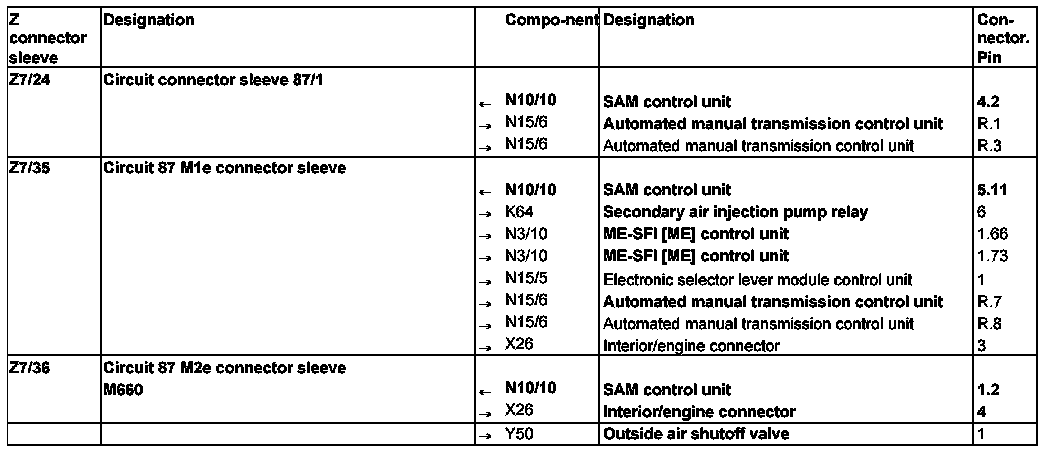

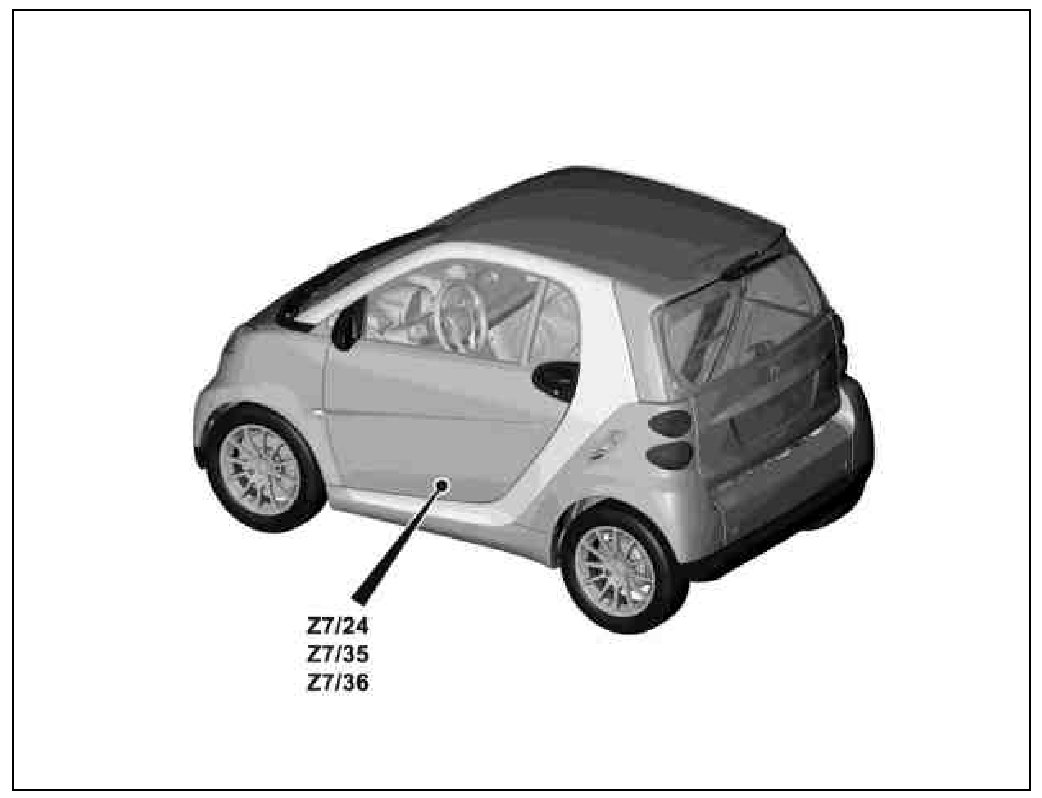

GF00.19-P-3000-04MCU Location and assignment of Z connector sleeves (cable connections in wiring harness) - interior left



GF00.19-P-3000-04MCU Location And Assignment Of Z Connector Sleeves (cable Connections In Wiring Harness) - Interior Left
