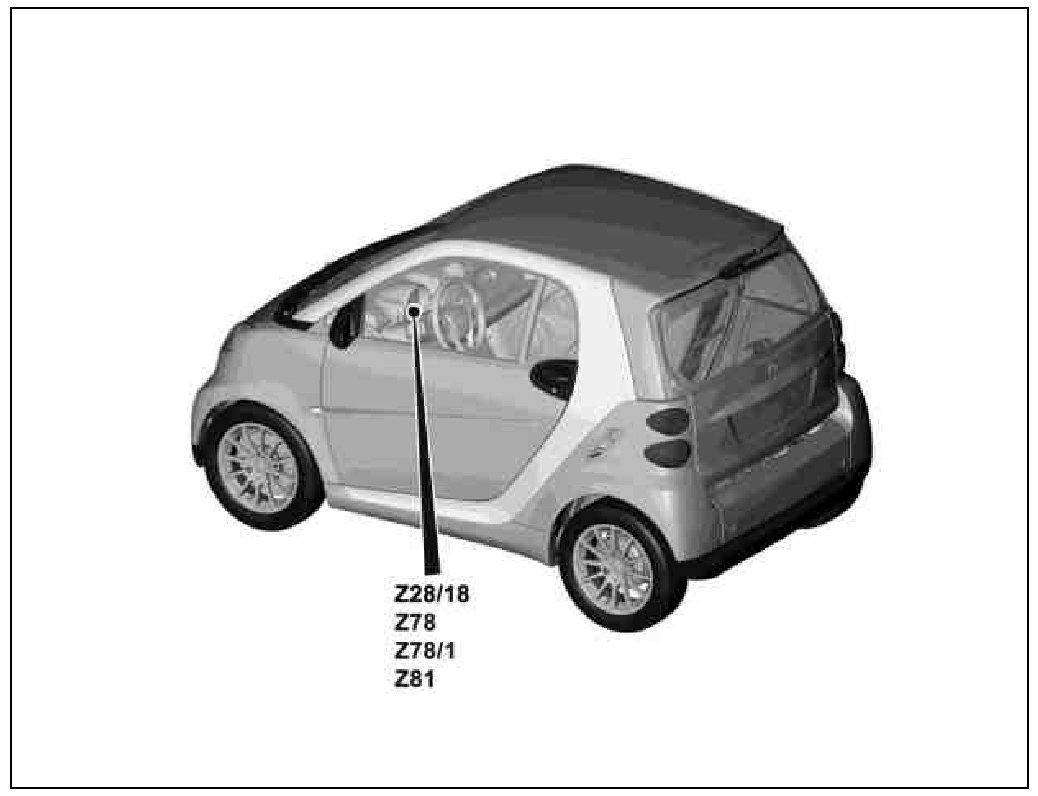

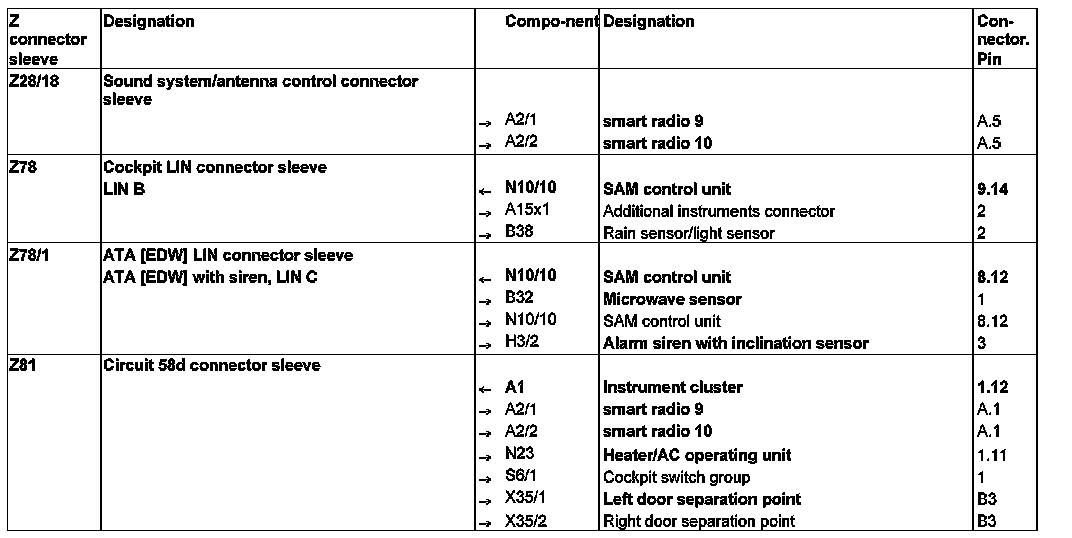

GF00.19-P-3000-03MCU Location and assignment of Z connector sleeves (cable connections in wiring harness) - cockpit



GF00.19-P-3000-03MCU Location And Assignment Of Z Connector Sleeves (Cable Connections In Wiring Harness) - Cockpit
