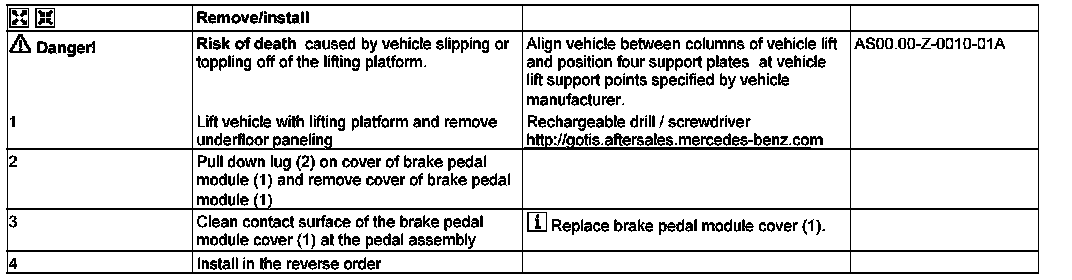

AR29.10-P-0330MCC Remove/Install Cover Of Brake Pedal Module

AR29.10-P-0330MCC Remove/Install Cover Of Brake Pedal Module

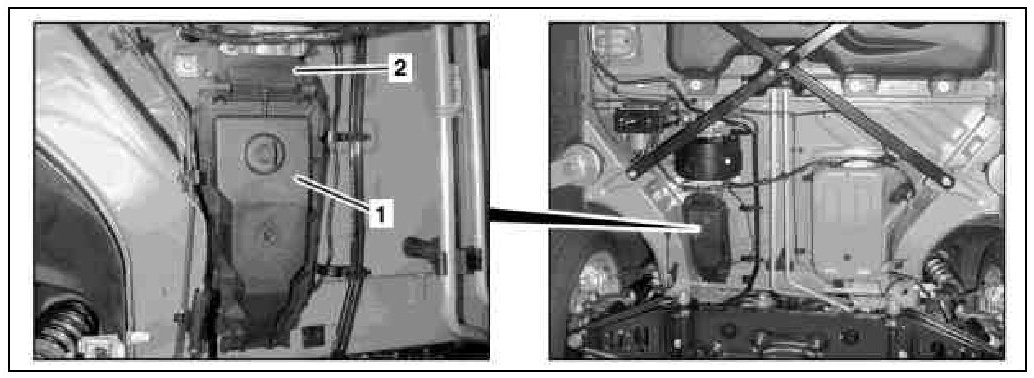

Illustrated on model 451.4

1 Brake pedal module cover
2 Lug
