AN82.62-P-0004MCC Retrofit BRABUS Subwoofer

AN82.62-P-0004MCC Retrofit BRABUS Subwoofer
- with CODE (C17) Sound package (2 tweeters, 2 bass reflex boxes and diplexer) (FFO)

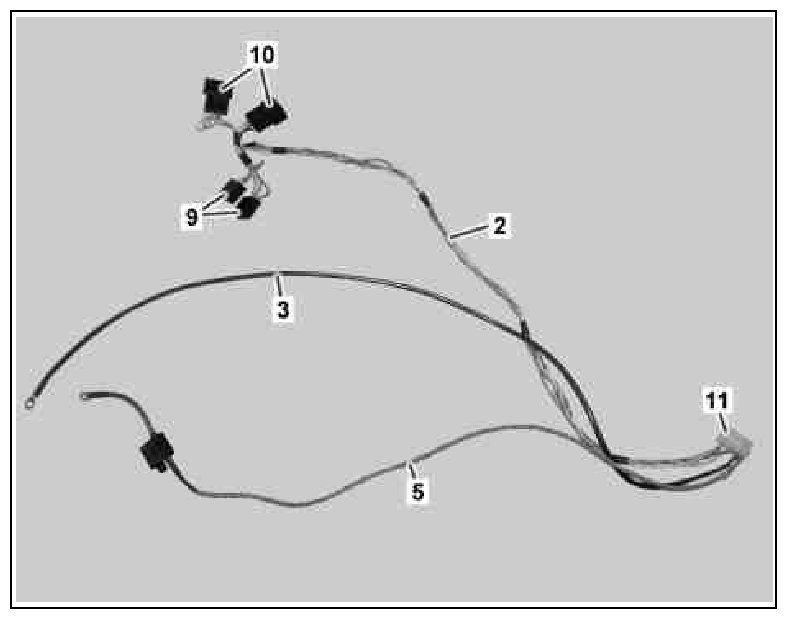

2 Subwoofer wiring harness
3 Subwoofer ground line
5 Subwoofer positive line
9 Connector
10 Clutches
11 Connector

Shown on vehicle with code (I01) Air conditioning Plus







1 Ground cable
2 Subwoofer wiring harness
3 Subwoofer ground line
4 Subwoofer
5 Subwoofer positive line
6 Adhesive tape
7 AC housing
8 Cable tie
9 Connector
10 Clutch
11 Connector
15 Bracket
18 Connector
A2/1 smart radio 9 (with code (C57) smart radio 9)
A2/2 smart radio 10 (with code (C50) smart radio 10)
G1 Battery
W10 Ground (battery)

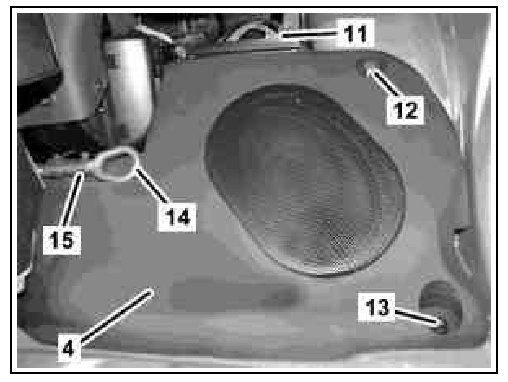

4 Subwoofer
11 Connector
12 Nut
13 Nut
14 Tow hook
15 Bracket
