AZ82.70-P-0013-04MCC Retrofit iPhone-Kit Cradle

AZ82.70-P-0013-04MCC Retrofit iPhone-Kit Cradle

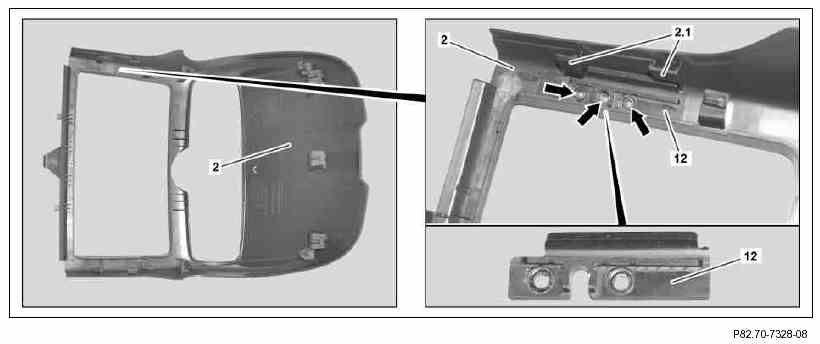

1. Insert counterholder (12) from behind in the cover of the center console (2) and align with the guides (2.1).
2. Transfer bore holes (arrows) to the cover of the center console (2) and remove counterholder (12)
3. Make bores corresponding to the previously applied markings with a diameter of 4 mm in the cover of the center console (2). Rechargeable drill / screwdriver.

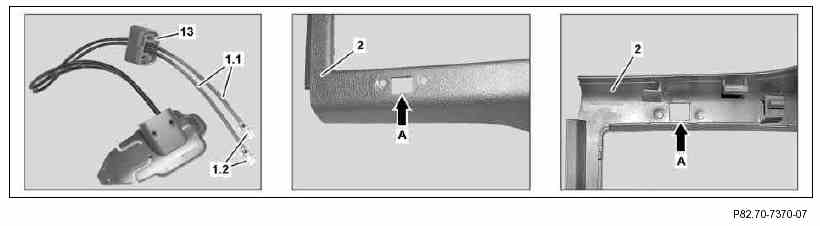

4. Carefully enlarge center bore at center console cover (2) (arrow A) until transparent couplings (1.2) of iPhone kit mount wiring harness (1.1) can be guided through.
Only enlarge the bore enough that it can be concealed by the retaining plate (13) later. In the event of contravention the cover of the center console (2) must be replaced.

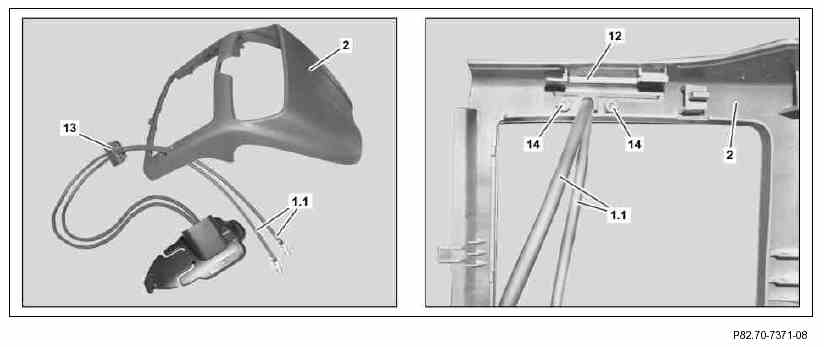

5. Guide iPhone-kit mount wiring harness (1.1) through the opening in the retaining plate (13).
Observe installation position of retaining plate (13).

6. Guide iPhone-kit mount wiring harness (1.1) through the opening in the center console made previously in the cover of the center console (2).
7. Insert counterholder (12) from behind in the cover of the center console (2) and align.
8. Attach retaining plate (13) from above and fix in position with the bolts (14) and nuts contained in the scope of supply together with the counterholder (12) on the cover of the center console (2).

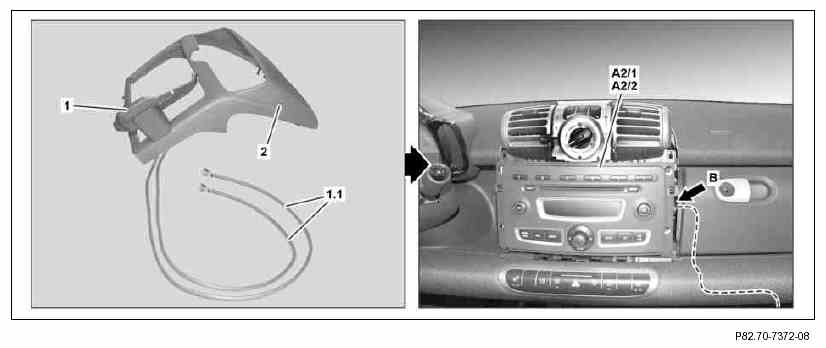

9. Clip bracket of the iPhone-kit cradle (1), as shown, into the retaining plate installed previously
10. Route iPhone-kit mount wiring harness (1.1) through the right opening (arrow B) next to the smart Radio 9 (A2/1) or the smart Radio 10 (A2/2) under the instrument panel to the iPhone-kit control unit installed previously.
11. Put down cover of center console (2) with iPhone-kit cradle (1) on the center console.
Put down the cover of center console (2) so that it cannot fall down.

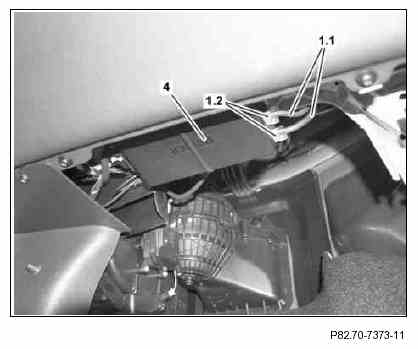

12. Connect transparent couplings (1.2) of iPhone kit mount wiring harness (1.1) to iPhone kit control unit (4)
13. Fix iPhone kit cradle wiring harness (1.1) with cable ties at suitable points.
