AZ82.70-P-0005-02MCC Retrofit Hands-Free System Wiring Harness

AZ82.70-P-0005-02MCC Retrofit Hands-free System Wiring Harness

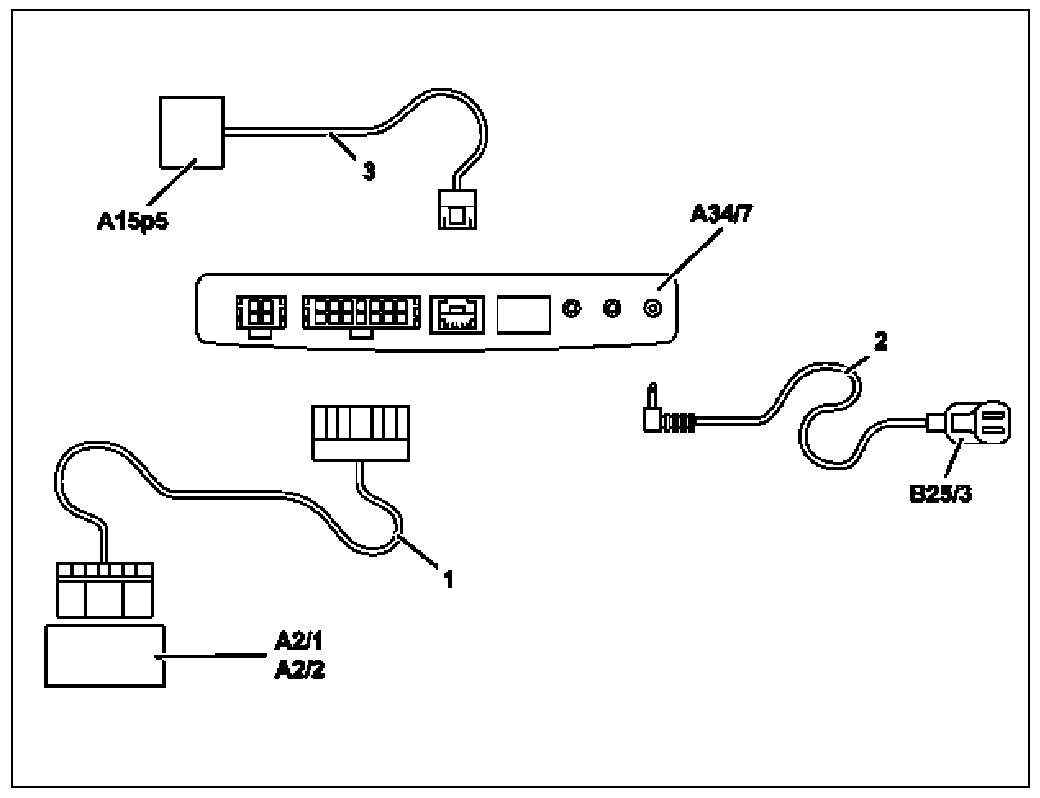

Connection scheme







1 Electrical wiring harness for Bluetooth module
2 Electrical wiring harness for Bluetooth microphone
3 Electrical wiring harness for display
A15p5 Display
A2/1 smart radio 9
A2/2 smart radio 10
A34/7 Bluetooth module
B25/3 Bluetooth microphone

Ensure that electrical wiring harness for Bluetooth module (1), electrical wiring harness for Bluetooth microphone (2) and electrical wiring harness for display (3) are not damaged by chafing, pinching or crushing as otherwise they must be replaced.

Electrical wiring harness for Bluetooth module (1), electrical wiring harness for Bluetooth microphone (2) and electrical wiring harness for display (3) are coded and cannot be swapped.







1 Route electrical wiring harness for display (3) from display (A15p5) along radio recess in front passenger footwell as shown.
2 Route electrical wiring harness for Bluetooth module (1) from radio recess in front passenger footwell as shown.
3 Fix electrical wiring harness for Bluetooth module (1), electrical wiring harness for Bluetooth microphone (2) and electrical wiring harness for display (3) in place with cable ties at vehicle wiring harness.
