Home >> Smart >> 2010 >> ForTwo Coupe (451.331) L3-1.0L (132.910) >> Repair and Diagnosis >> Accessories and Optional Equipment >> Antenna >> Antenna, Navigation >> Service and Repair >> AR82.85-P-0010MCG Remove/Install Global System For Mobile Communications (GSM) Antenna

AR82.85-P-0010MCG Remove/Install Global System For Mobile Communications (GSM) Antenna




AR82.85-P-0010MCG Remove/install Global System For Mobile Communications (GSM) Antenna
- MODEL 451.3 with CODE (P02) car2go
- with instrument panel up to production date 30.8.10

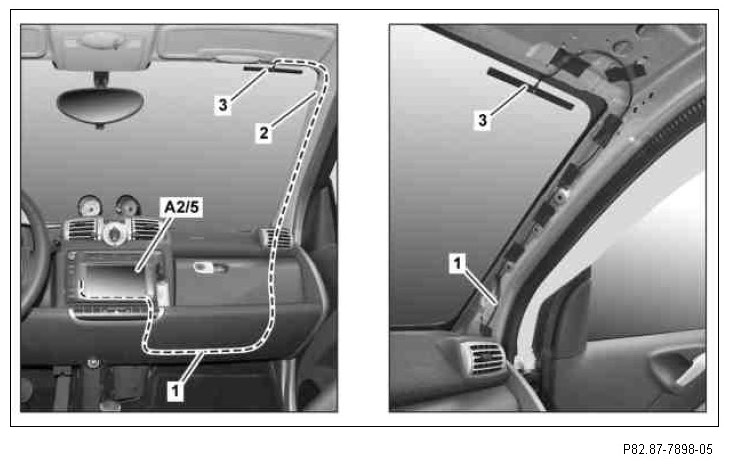

1 Antenna line
2 Cover
3 Antenna

A2/5 Smart radio car2go
