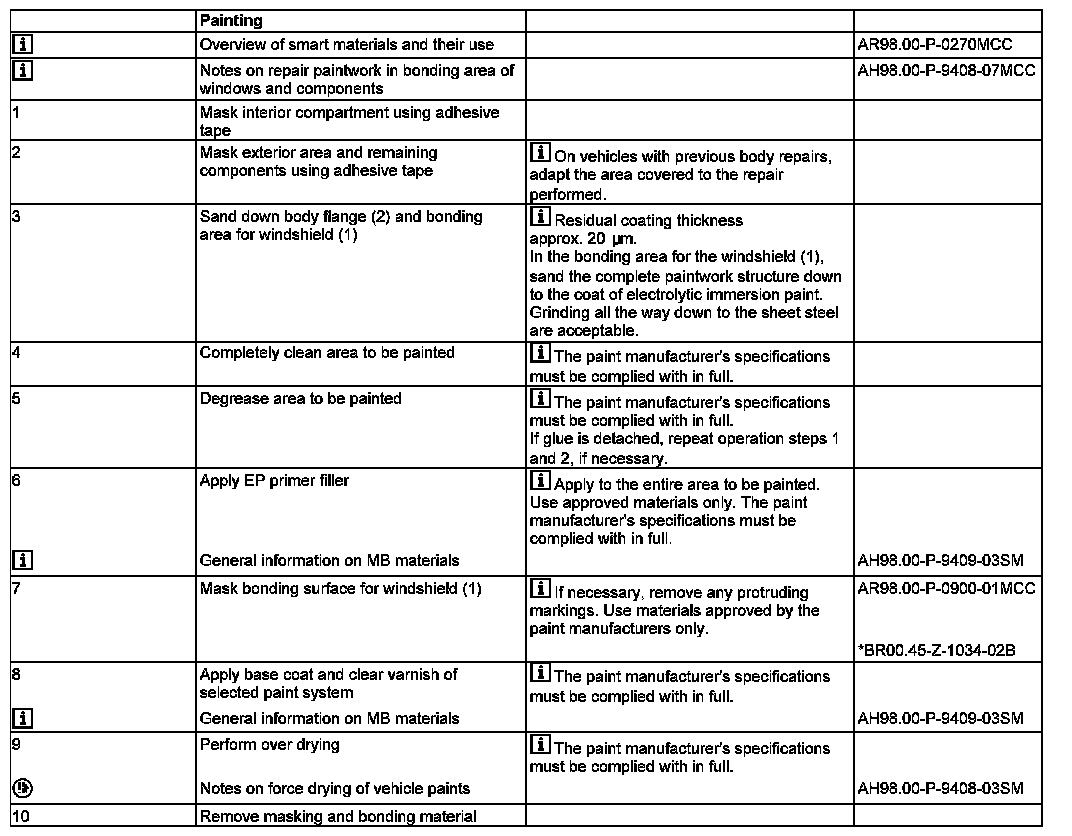

AR98.00-P-0900MCC Paintwork bonding area for windshield



AR98.00-P-0900MCC Paintwork Bonding Area For Windshield

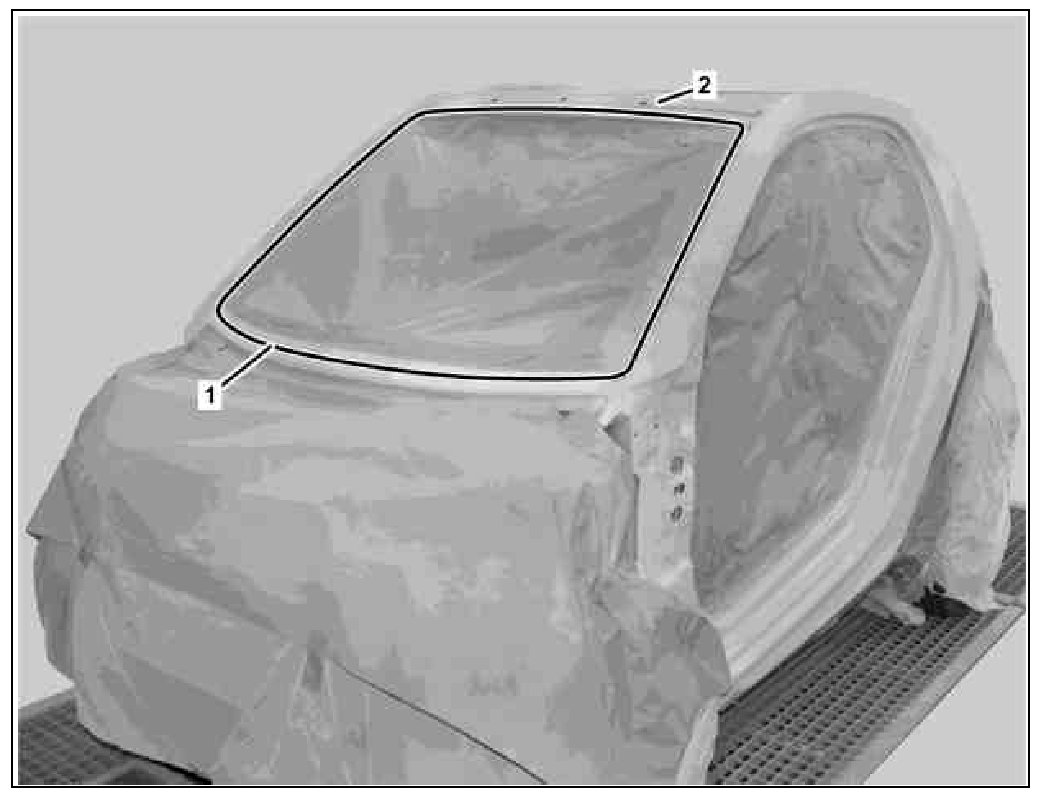

Shown on model 451.3







1 Windshield gluing area
2 Body flange
