AR98.00-P-0900-01MCC Mask bonding surfaces for windshield using adhesive tape

AR98.00-P-0900-01MCC Mask Bonding Surfaces For Windshield Using Adhesive Tape

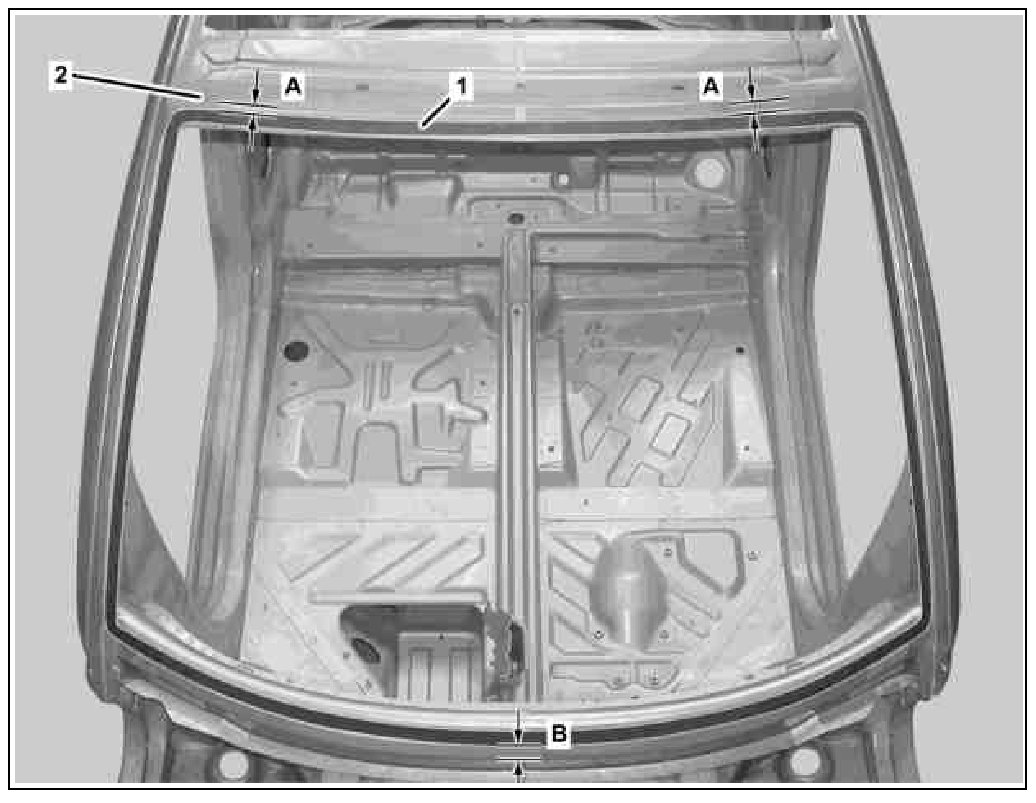

Shown on model 451.3 on body shell







1 Clean and degrease body flange (2).
2 Mask bonding area (1) using adhesive tape.

Dimensions:
A 10 mm
B 20 mm
