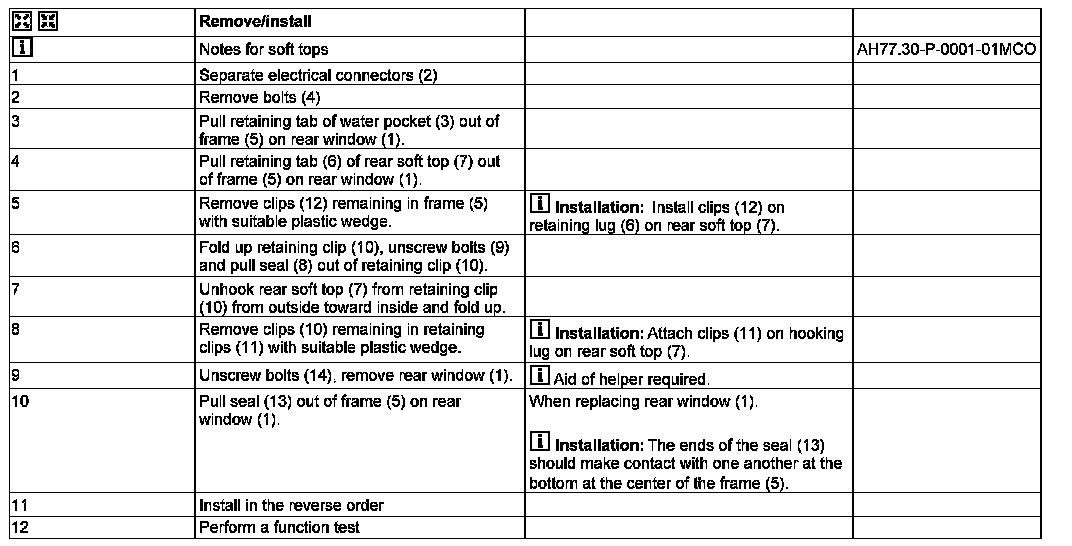

AR77.35-P-1000MCO Remove, install rear soft top window

AR77.35-P-1000MCO Remove, Install Rear Soft Top Window


Shown on left side of vehicle

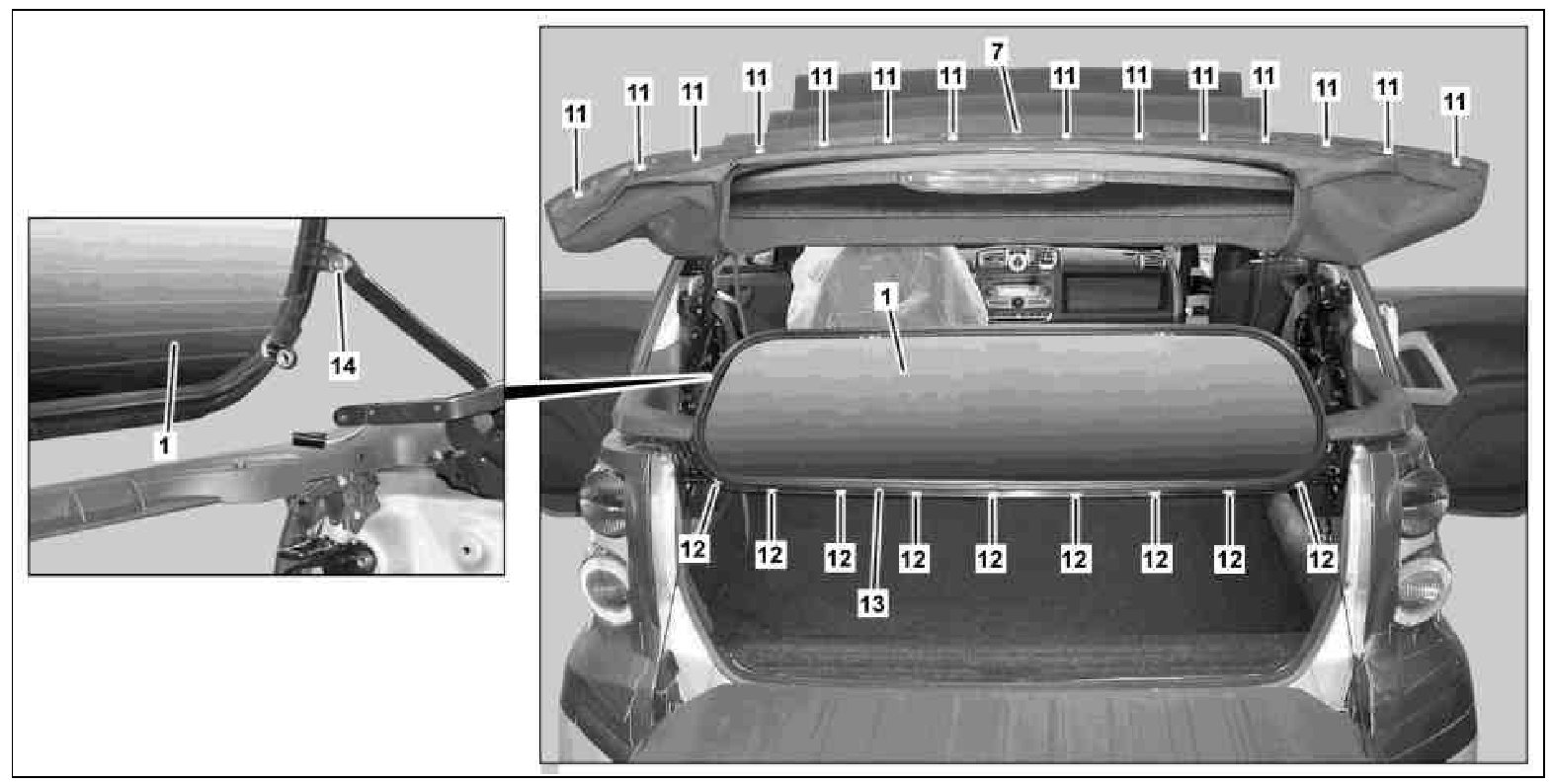

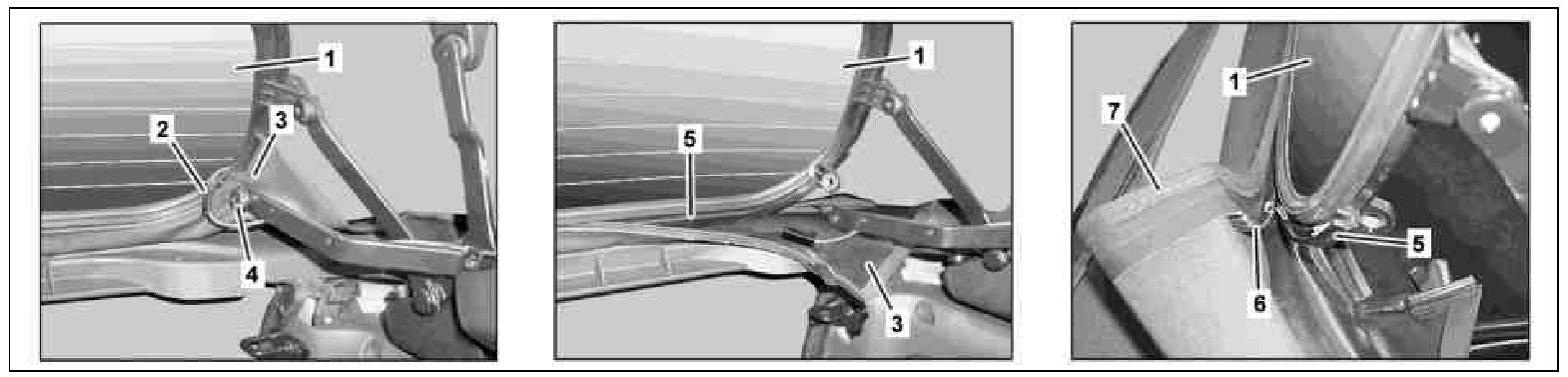

1 Rear window
2 Electrical connector
3 Water pocket
4 Bolt
5 Frame
6 Retaining tab
7 Rear soft top

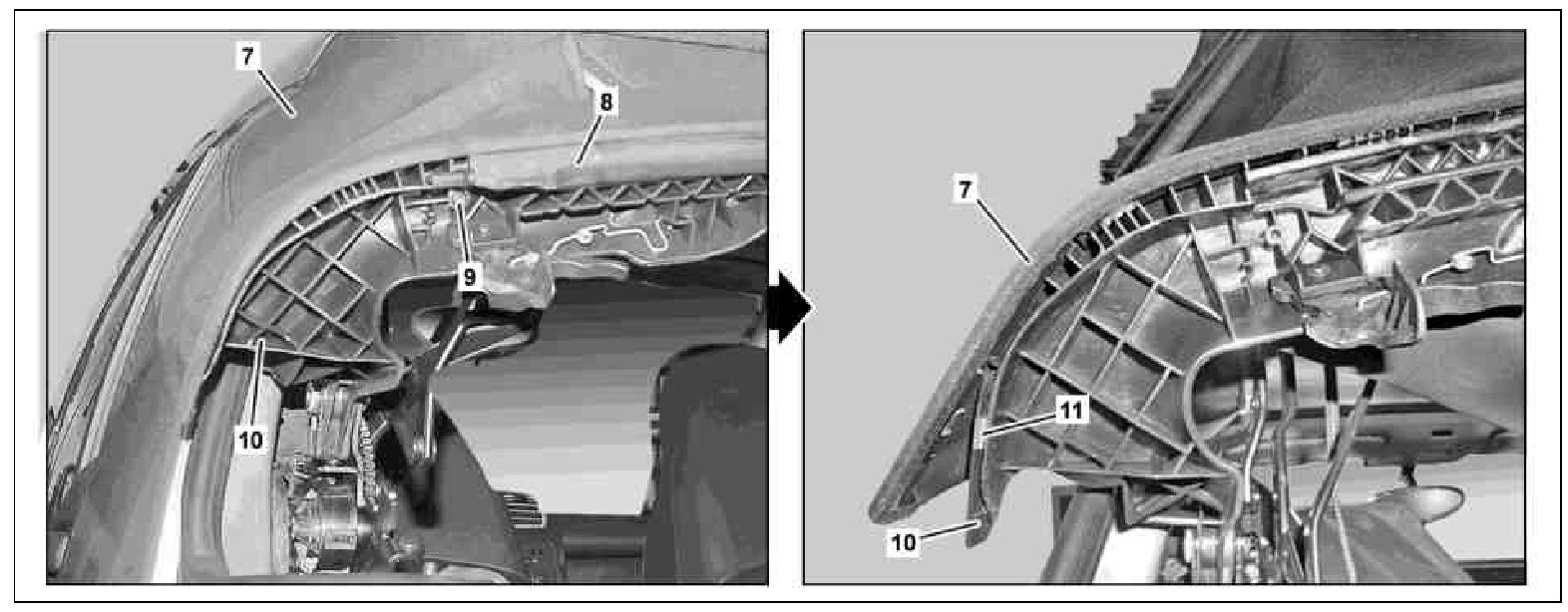

Shown on left side of vehicle







7 Rear soft top
8 Seal
9 Bolt
10 Retaining clamp
11 Clamp







1 Rear window
7 Rear soft top
11 Clamp
12 Clamp
13 Seal
14 Bolt

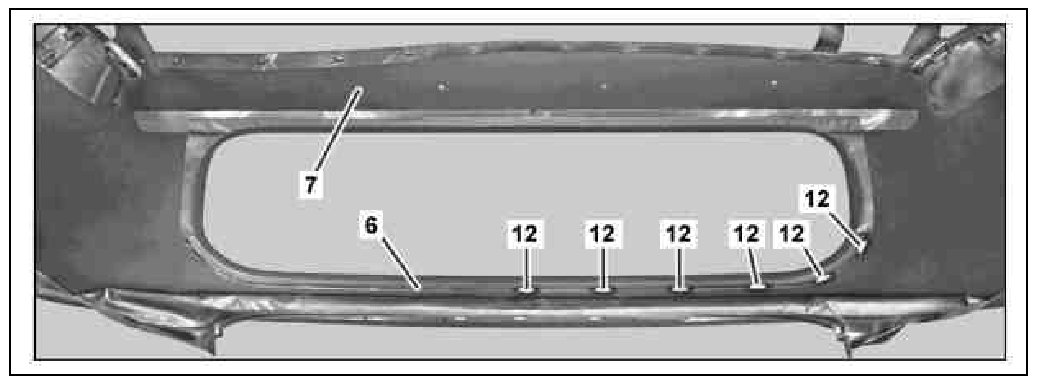

Shown on removed rear soft top







6 Retaining tab
7 Rear soft top
12 Clamp
