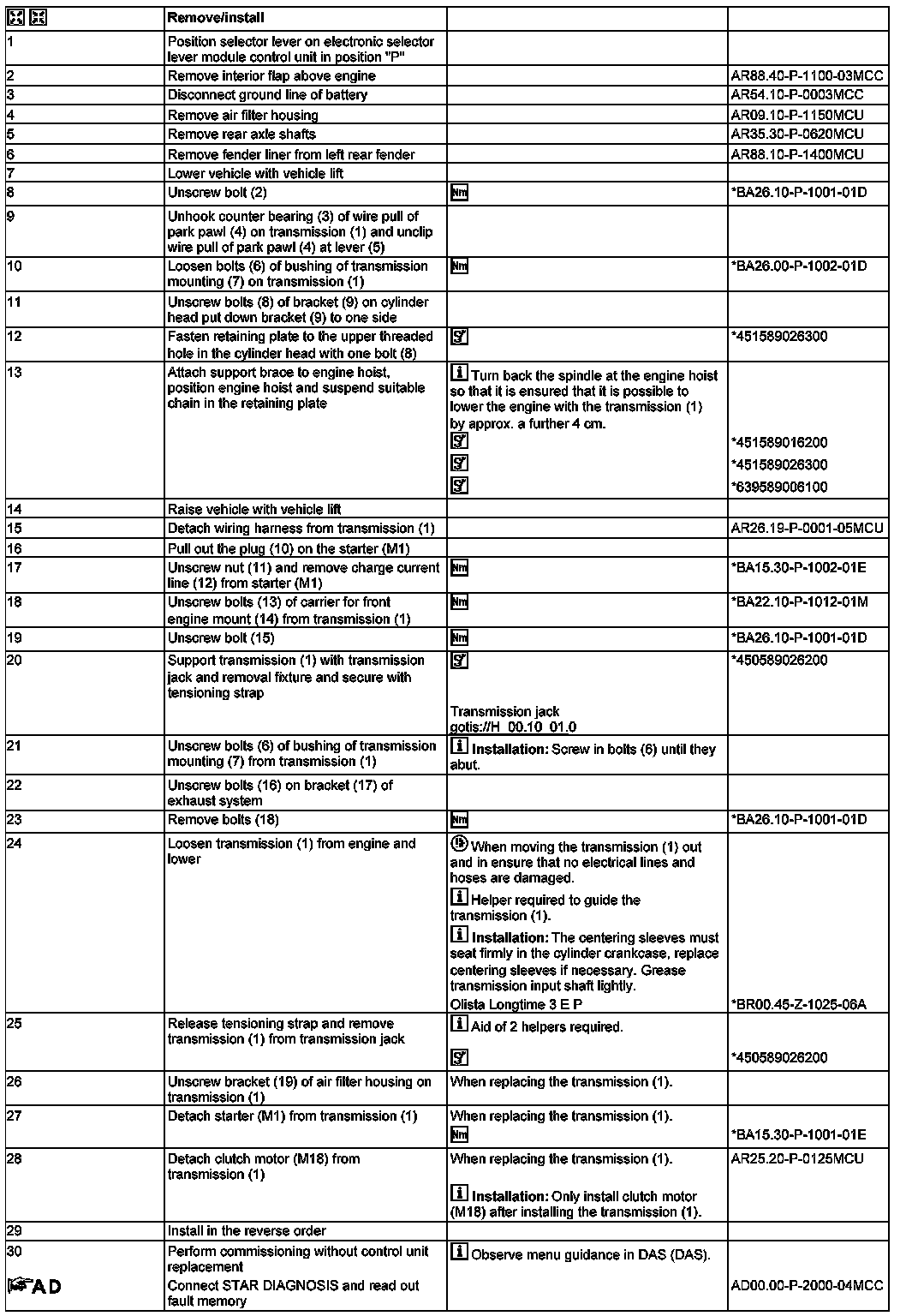

AR26.10-P-0020MCU Remove/Install Transmission

AR26.10-P-0020MCU Remove/Install Transmission

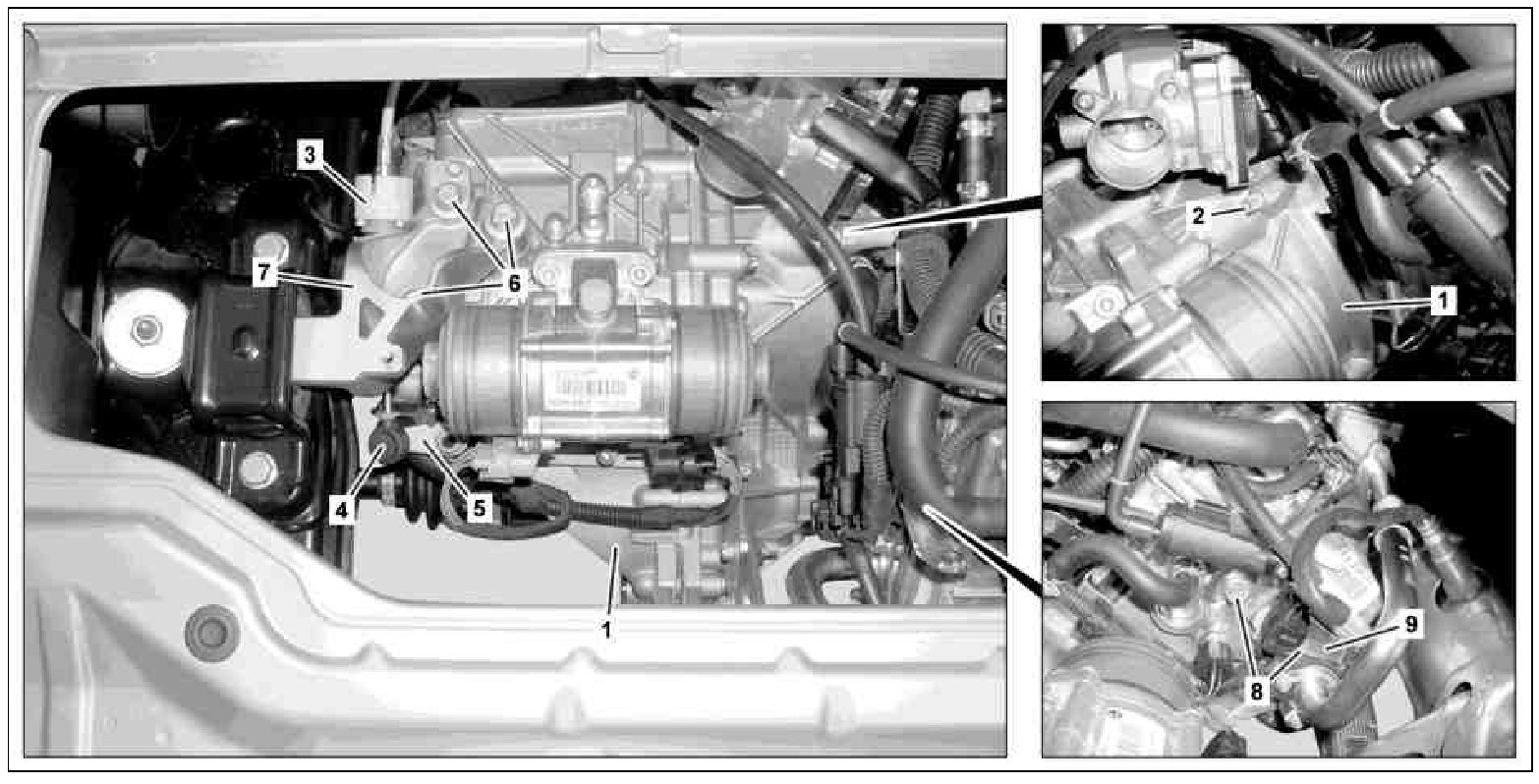

- TRANSMISSION 717.4 with ENGINE 132.910







1 Transmission
2 Screw
3 Thrust bearing
4 Park pawl cable
5 Lever
6 Bolts
7 Mount for transmission mounting
8 Bolts
9 Bracket

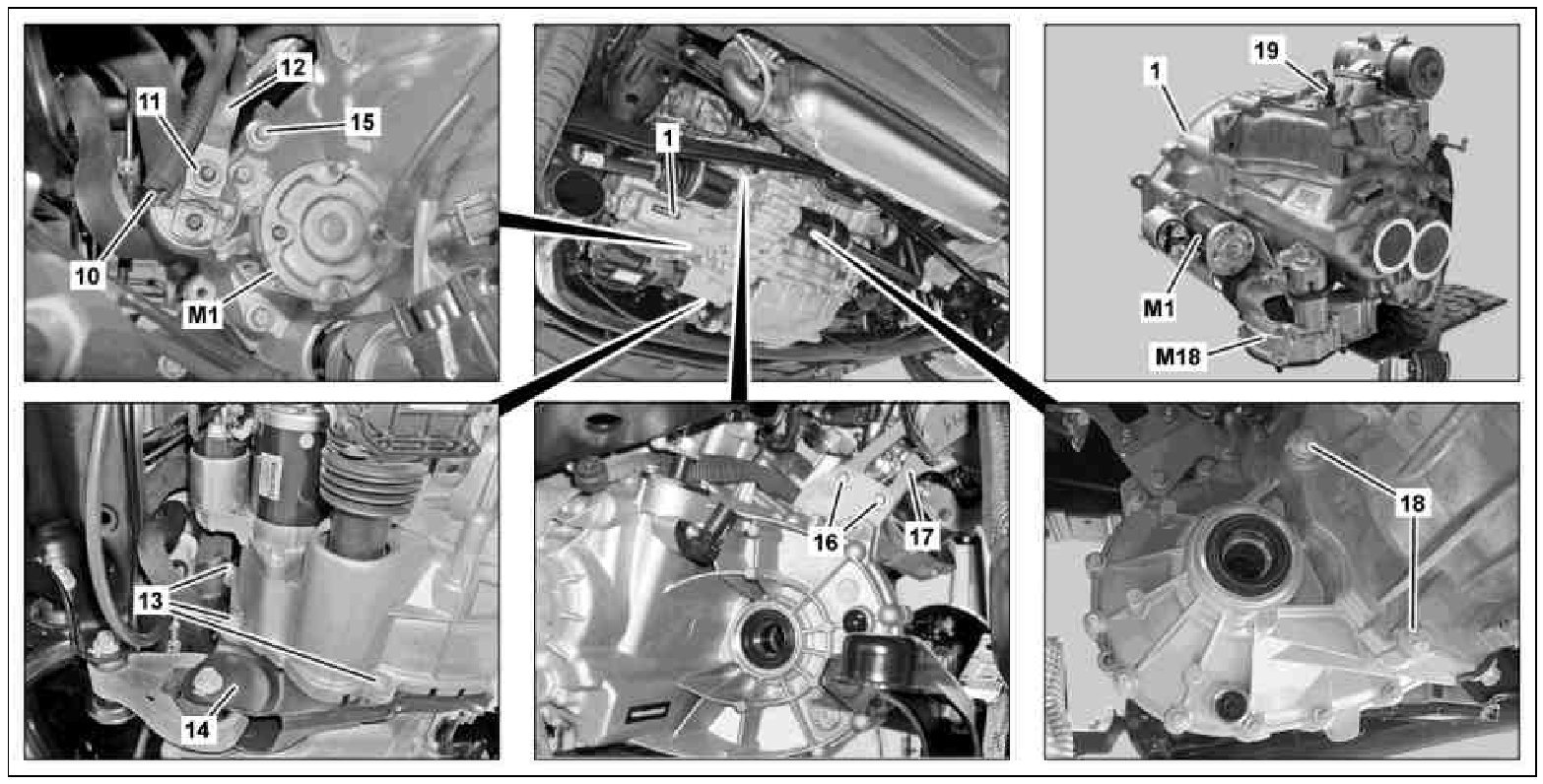

1 Transmission
10 Connector
11 Nut
12 Charge current line
13 Bolts

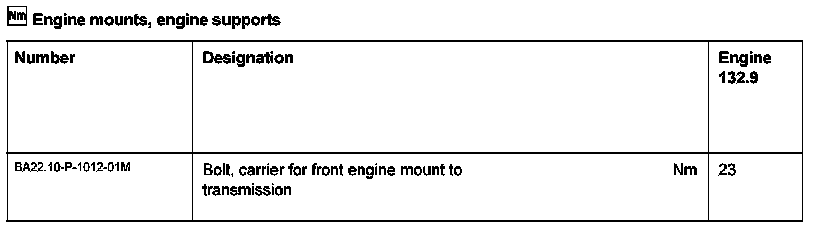

14 Carrier for front engine mount
15 Screw
16 Bolts
17 Bracket
18 Bolts
19 Bracket

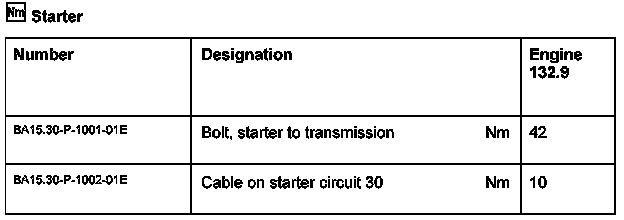

M1 Starter
M18 Coupling motor



























450 589 02 62 00, Removal assembly

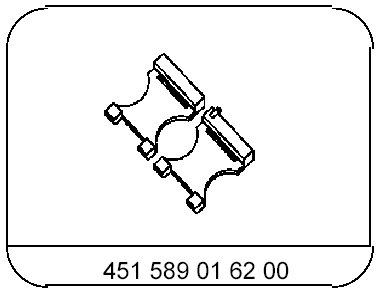

451 589 01 62 00, Support braces

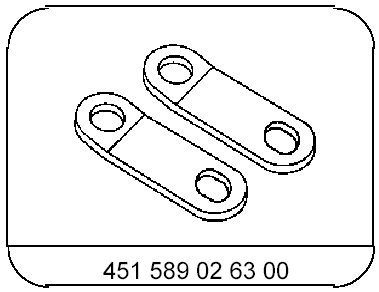

451 589 02 63 00, Retaining plates

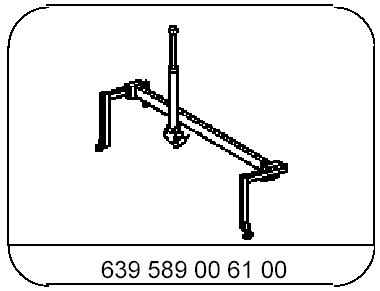

639 589 00 61 00, Engine lifting fixture
