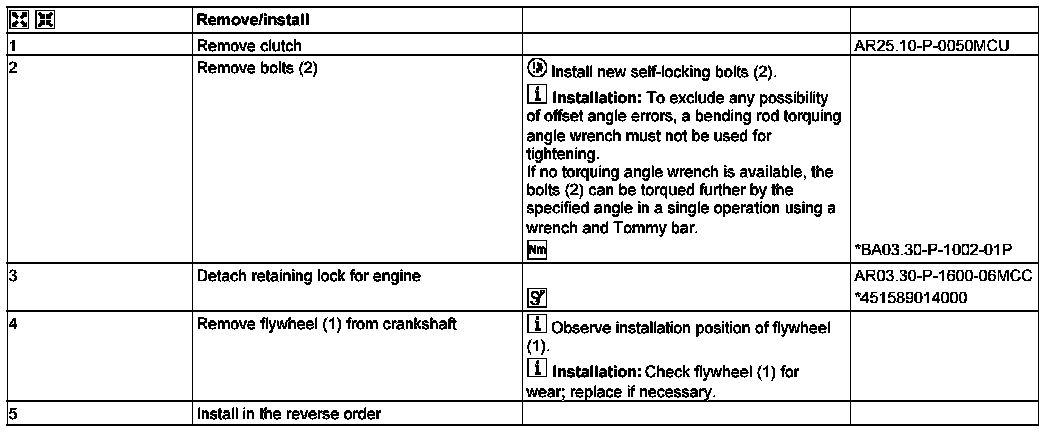

AR03.30-P-8002MCU Remove, Install A Flywheel
AR03.30-P-8002MCU Remove, Install A Flywheel
AR03.30-P-8002MCU Remove, Install A
Flywheel

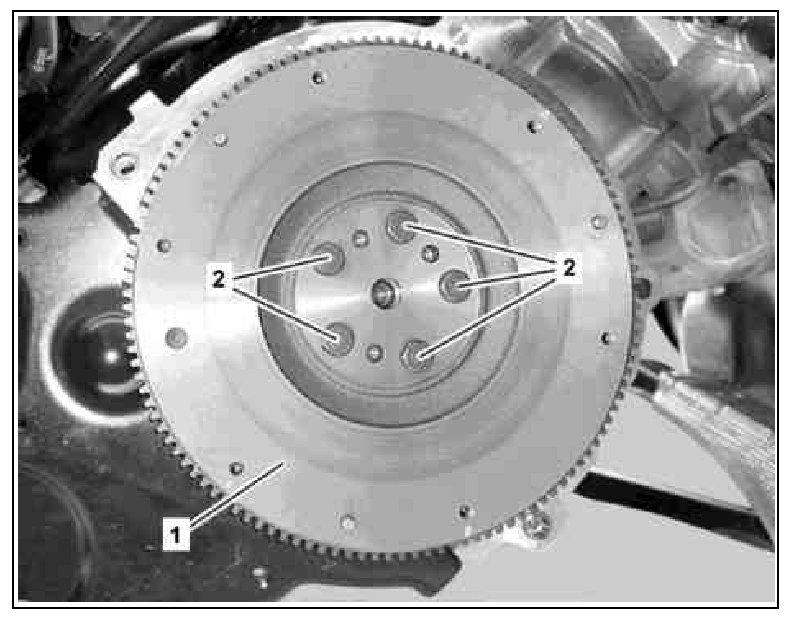

1
Flywheel
2
Bolts
451 589 01 40 00, Retaining lock
