AR03.30-P-1600-06MCC Attach/Remove Retaining Lock For Engine

AR03.30-P-1600-06MCC Attach/Remove Retaining Lock For Engine







451 589 01 40 00, Retaining lock

Attaching

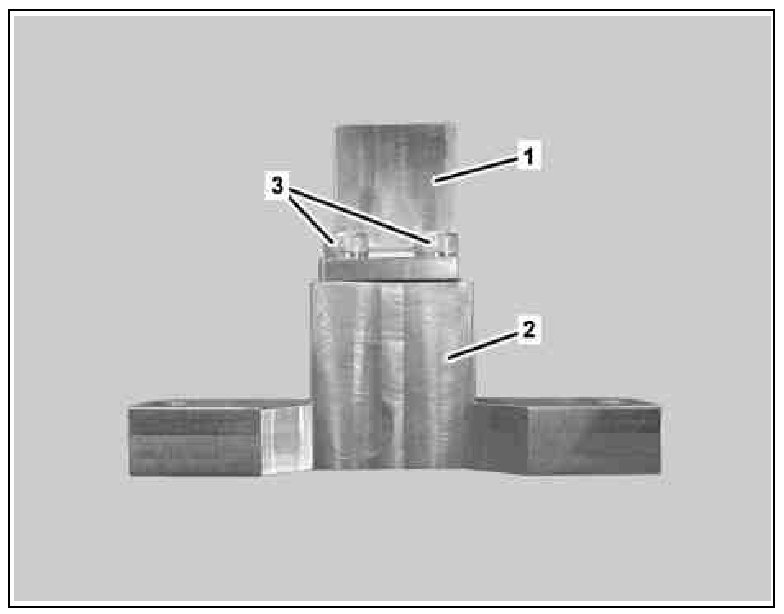

1 Remove bolts (3) and retaining lock (1) from retaining lock adapter (2).

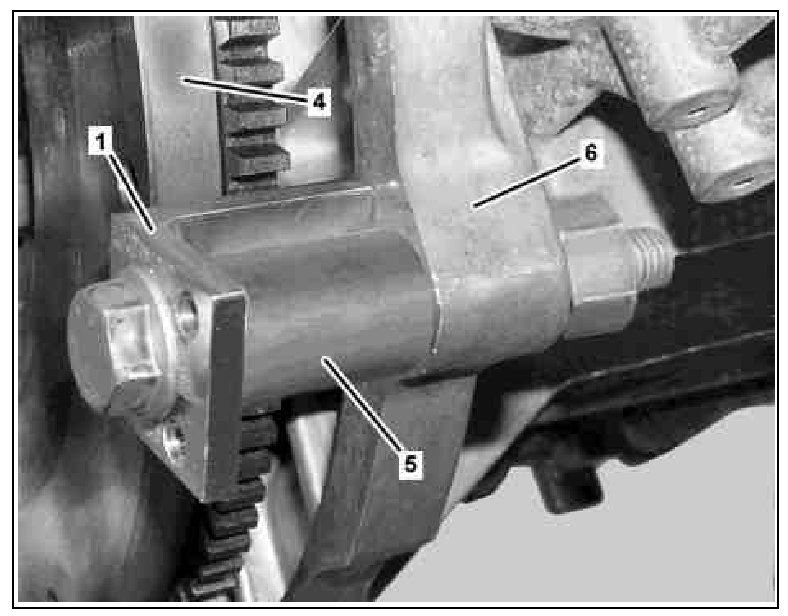

2 Insert retaining lock (1) in toothing of flywheel (4).
3 Insert sleeve (5) between retaining lock (1) and cylinder crankcase (6) and fix in place with a suitable bolt and nut.
Turn crankshaft just a little if necessary.
4 Remove in the reverse order.
